| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FE02018-001 |
| Manufacturer No: | 02018-001 |
| Delivery: | In Stock: 1-2 Days |
 |

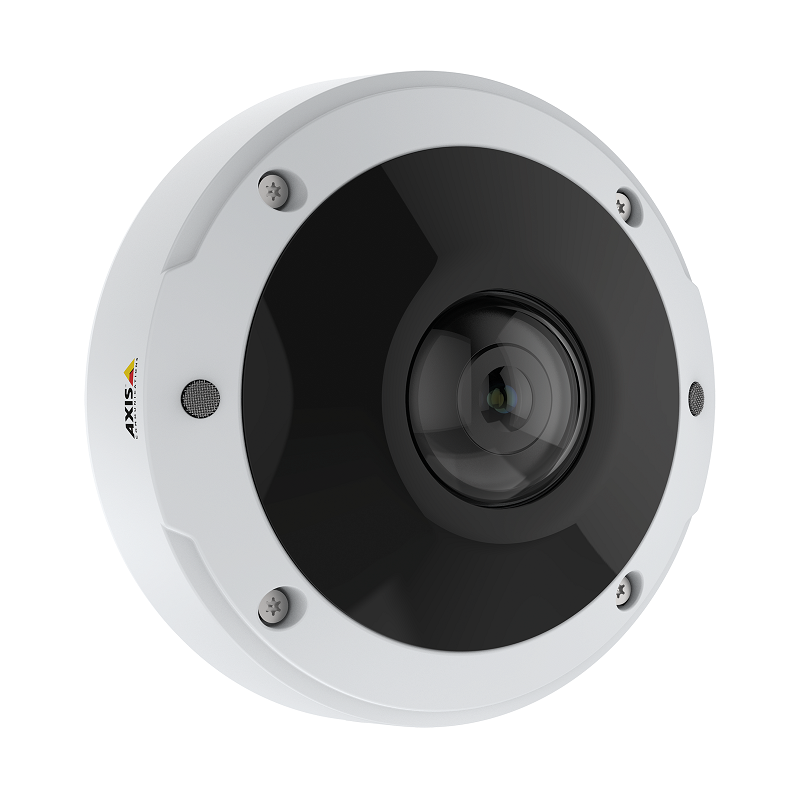

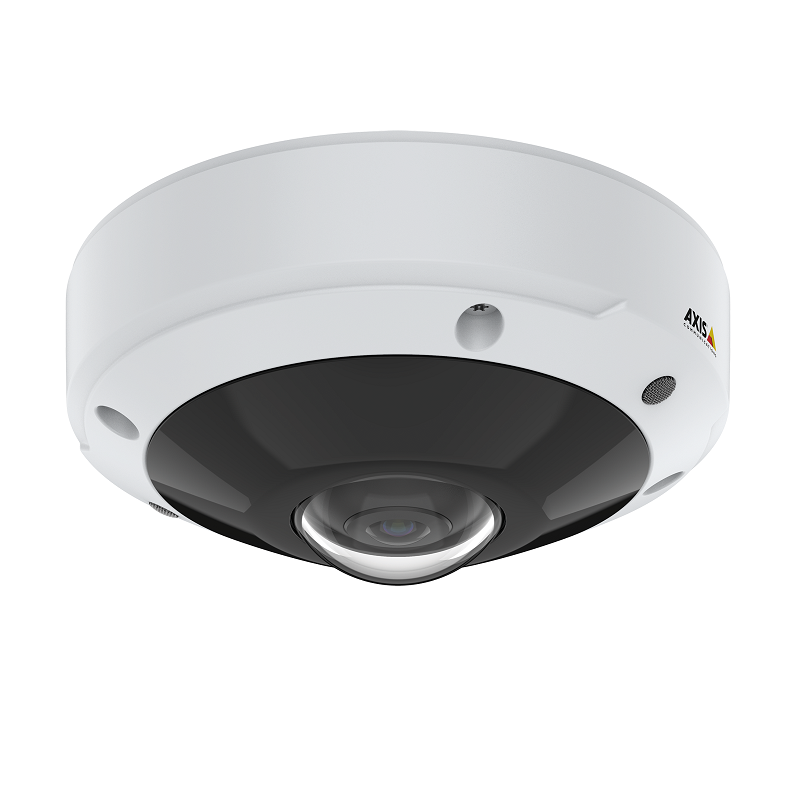

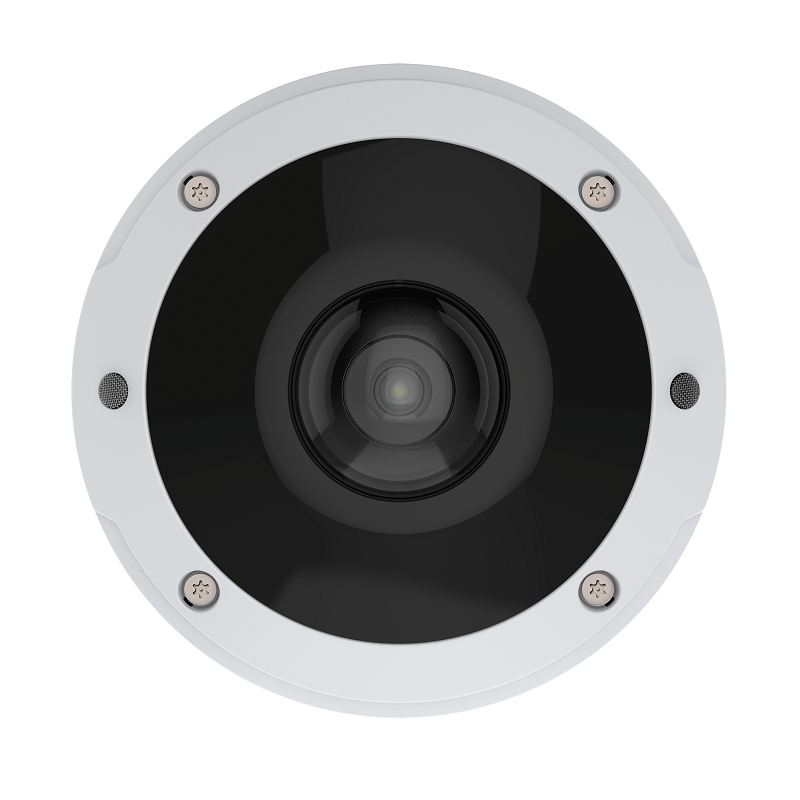

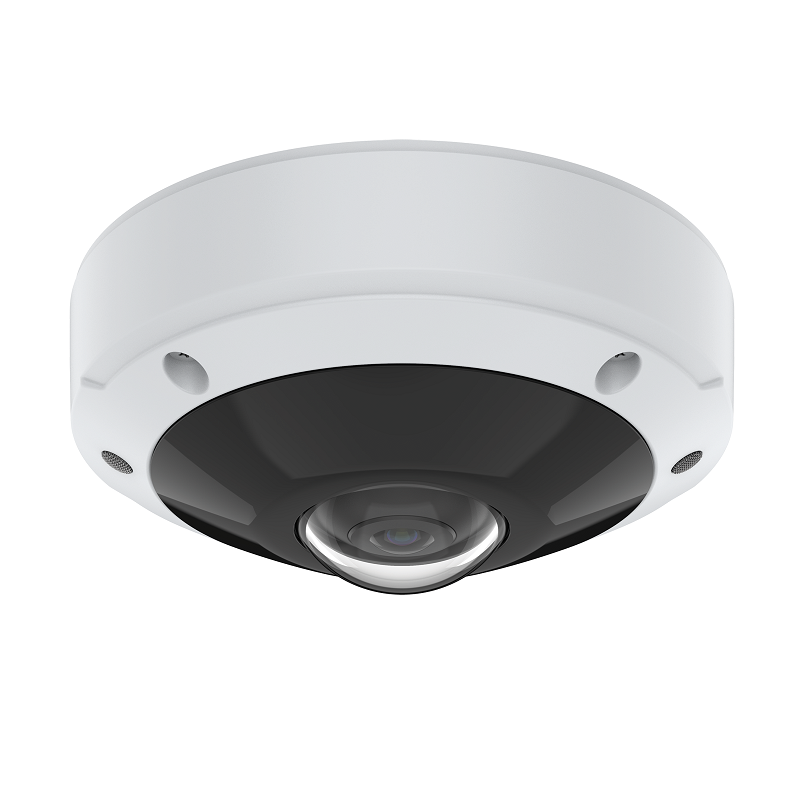

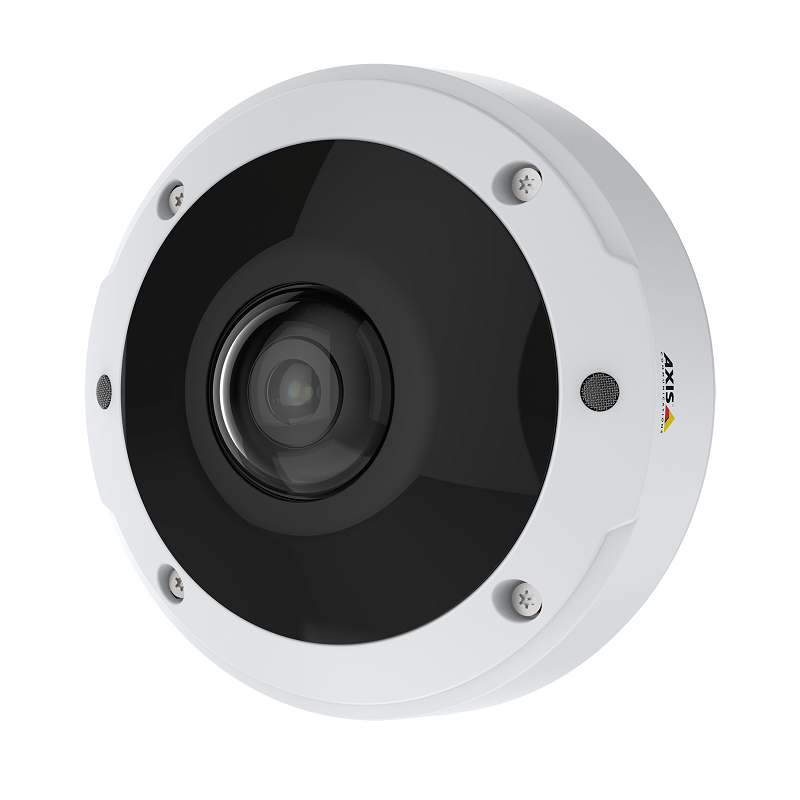

AXIS M3077-PLVE Network Camera
6 MP outdoor-ready dome with 360° panoramic view and audio capture
• Complete 180° and 360° overview
• Lightfinder, Forensic WDR, and OptimizedIR
• Digital PTZ and dewarped views
• Built-in microphones
• Enhanced security features
This compact, outdoor-ready mini dome offers outstanding images and complete 360° panoramic overview for a wide range of surveillance scenarios. It features two built-in microphones for audio surveillance and detection. And, enhanced security features to safeguard your system.

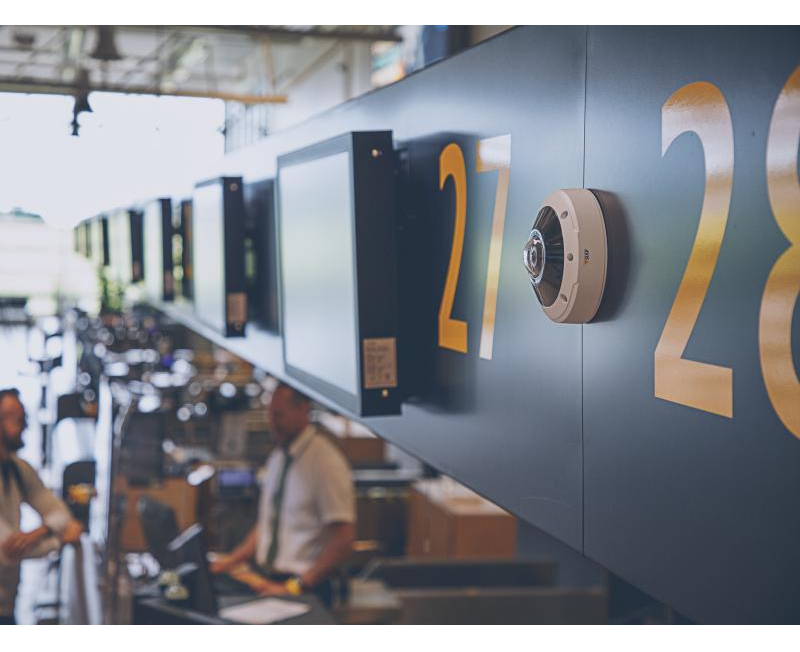

AXIS M3077-PLVE delivers a complete 180° or 360° overview, indoors or out, around the clock. This compact, IK10-rated vandal-resistant mini dome can be repainted to blend in seamlessly with any surroundings. And, the IP66 rating keeps the camera safe from dust and powerful blasts of water. It features two built-in microphones allowing for audio surveillance and detection. Furthermore, you can use one video stream to produce any dewarped views you'd like. And, it’s possible to stream panorama, quad, corner, and corridor views directly from the camera. Plus, you can digitally pan, tilt, and zoom in on areas of interest in up to four areas simultaneously.
With its 6 MP sensor, AXIS M3077-PLVE offers excellent image quality regardless of the light conditions. It includes Axis Lightfinder for sharp, color images in poor lighting conditions and Axis Forensic WDR for high-quality images even when there’s both dark and light areas in the scene. Plus, there’s no need for extra lighting, thanks to Axis OptimizedIR you get 24/7 coverage for surveillance in pitch darkness up to 20 m (65 ft) or more. Furthermore, it’s possible to stream the complete 360° overview so you can be sure you record everything with no blind spots.
AXIS M3077-PLVE is packed with enhanced security functionality to prevent unauthorized access and safeguard your system. Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network. Additionally, signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And, secure boot guarantees the camera is completely free of malware even after a factory default. It’s delivered factory-focused and features digital roll functionality allowing you to remotely adjust the rotation of the camera overview– no need to do it manually on each camera. Furthermore, Axis Zipstream with support for H.264 and H.265 video compression significantly reduces bandwidth and storage requirements.
Make your network camera solution more intelligent with powerful analytics and functionality.
For intruction detection
For detecting loiterers
Smart motion detection
| Performance | |
| Number of languages | 12 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian |
| PTZ modes | Digital PTZ |
| Type | IP security camera |
| Connectivity technology | Wired |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Dynamic range | 120 dB |
| Design | |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | White |
| Mounting type | Ceiling/wall |
| IP Rating | IP66 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Camera | |
| Angle of rotation | 180° |
| Viewing angle, horizontal | 183° |
| Viewing angle, vertical | 183° |
| Camera shutter speed | 1/16000 - 1 s |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.8 mm (1 / 1.8") |
| Lens system | |
| Number of lenses | 1 |
| Fixed focus | Yes |
| Zoom capability | Yes |
| Focus adjustment | 2.0 |
| Focal length range | 1.56 mm |
| Video | |
| Noise reduction | Yes |
| Text caption overlay | Yes |
| Video compression formats | H.264, H.265, M-JPEG, MPEG4 |
| Maximum resolution | 2560 x 1920 pixels |
| Supported graphics resolutions | 256 x 144, 384 x 288, 1920 x 1440, 2560 x 1440, 2560 x 1920 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Video intelligence analytic | Yes |
| Thermal frame rate (NTSC) | 50 - 60 Hz |
| Video recording | Yes |
| Storage | |
| Card reader integrated | Yes |
| Built-in HDD | Yes |
| HDD capacity | 1 GB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 512 MB |
| SSD capacity | 0.5 GB |
| Built-in SSD | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | E-mail, Text alert message |
| Security algorithms | EAP-TLS, HTTPS |
| HTTPS encryption | Yes |
| Pixel counter | Yes |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 11.9 W |
| Power consumption (typical) | 8 W |
| Power consumption (Power over Ethernet (PoE)) | 8 W |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100 % |
| Storage relative humidity (H-H) | 5 - 95 % |
Full specification and details can be found in the Product Datasheet PDF file
