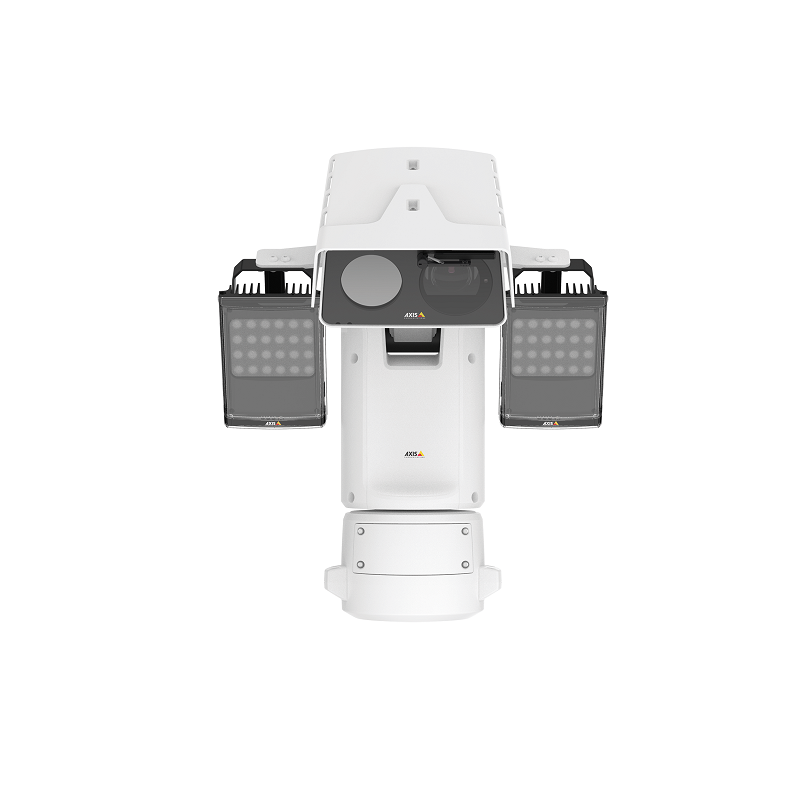

Axis 01839-001 Q8752-E Bispectral PTZ Camera 35 MM 8.3 FPS

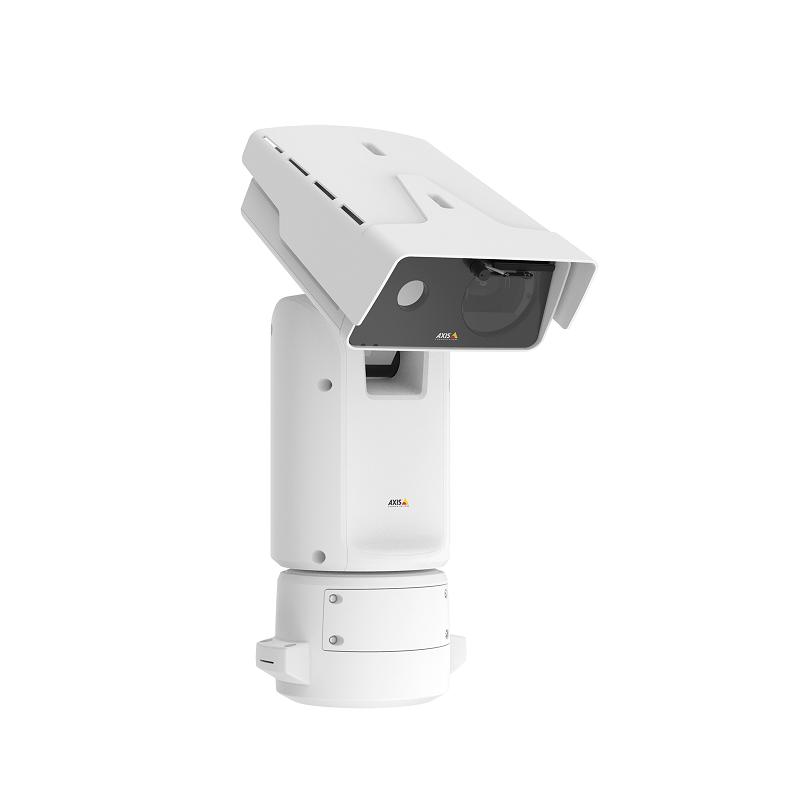

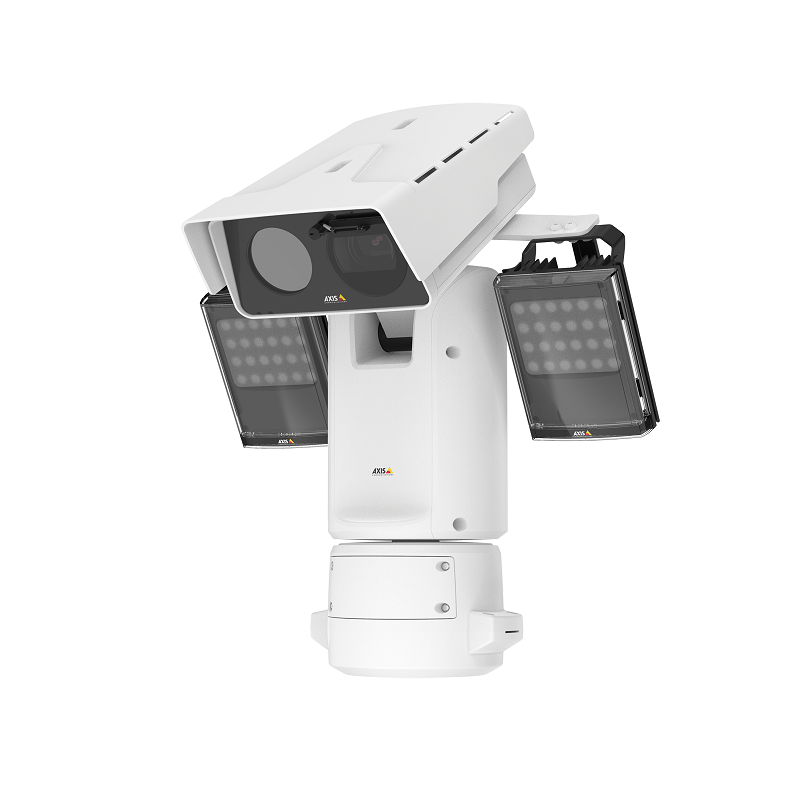

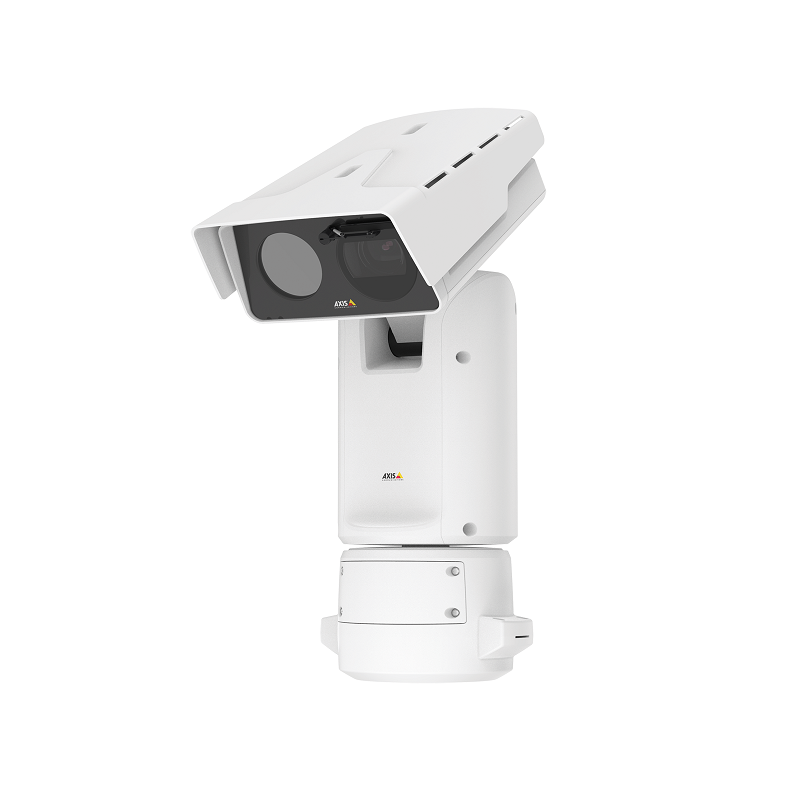

AXIS Q8752-E Bispectral PTZ Camera

Thermal detection and visual verification

• Thermal and visual camera in one

• 360° infinite pan

• Dual Electronic Image Stabilization

• Signed firmware, secure boot, and TPM 2.0

• Thermal palettes

Ideal for perimeter surveillance and border control, AXIS Q8752-E offers reliable thermal detection and visual identification with x32 integrated optical zoom in one bispectral camera. AXIS Q8752-E Zoom delivers 3x thermal zoom allowing you to detect a human as far as 3 km (3342 yards) according to Johnson’s criteria. 35 mm thermal model is also available. It features Electronic Image Stabilization (EIS) on both channels and smooth PTZ operation.

All you need is one

Through the lens of AXIS Q8752-E

•

  Always see what you need to see

  AXIS Q8752-E gives you two excellent cameras in one: a thermal camera for reliable detection and verification around-the-clock and in all weather and light conditions, and a visual camera for outstanding visual identification purposes. It offers a ground-to-sky view with a tilt range of -90° to +45° and 360° infinite pan for fast camera repositioning and smooth tracking of objects. Thermal palettes help identify different heat sources emitting the same amount of thermal energy, making it easier and more efficient to interpret a scene. You can assign color or shading to individual pixels based on their thermal energy and quickly highlight areas of interest within the scene. Electronic Image Stabilization (EIS) on both channels helps deliver smooth video even in situations where the camera is subject to vibrations. Furthermore, Forensic WDR and Lightfinder 2.0 guarantee images with saturated colors and sharp details of moving objects even in challenging light or near darkness.

•

  Powerful analytics platform

  This top-of-the-line camera contains all the functionality you need to track and identify any type of behavior. It includes AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard for proactive surveillance. And, it's audio-ready, so it’s easy to add audio capabilities by connecting a microphone. Built on a powerful analytics platform, it’s easy to add custom-made third-party analytics. For instance, if you’re exposed to incidents that involve aggressive behavior, gunshots, or breaking glass, AXIS Q8752-E can automatically alert you about potential and real incidents as they occur enabling quick, relevant responses.

•

  Robust and secure

  This robust camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware and secure boot guarantee that the firmware hasn’t been compromised and ensure only authorized firmware is installed. And if needed, secure boot guarantees the camera is completely free of malware after a factory default. For added peace of mind, it includes a Trusted Platform Module (TPM) that is FIPS 140-2 level 2 certified. This module ensures secure storage of all cryptographic keys and certificates even in the event of a security breach. With IP66, NEMA 2TS, and IK10 ratings, you can be sure that the camera housing is resistant to both harsh weather conditions and vandalism. Plus, it’s possible to connect AXIS Q8752-E using fiber optic cabling to overcome distance and bandwidth limitations. This means you can install the camera in out-of-the-way locations, far from any server or switch with fewer cables and connectors required. Furthermore, with thermal, visual, and PTZ capabilities in one camera, it reduces the need for additional cameras to protect your premises.

•

  Surveillance only in the dark, or even all-day-around?

  Find out why thermal cameras are reliable detection and recognition tools.

Analytics

Make your network camera solution more intelligent with powerful analytics and functionality.

•

  AXIS Fence Guard

  For intrusion detection

•

  AXIS Loitering Guard

  For detecting loiterers

•

  AXIS Motion Guard

  Smart motion detection

•

  AXIS Video Motion Detection

Performance
Preset points	Yes
Infrared (IR) cut-off filter	Yes
Number of languages	12
Languages support	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian
Fog proof	Yes
Type	IP security camera
Connectivity technology	Wired
PTZ control	Yes
Placement supported	Outdoor
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes

Design
Weatherproof	Yes
IK code	IK10
Fog proof	Yes
Form factor	Box
Product colour	Black, White
International Protection (IP) code	IP66
Housing material	Aluminium

Camera
Minimum illumination	0.01 lx
Viewing angle, horizontal	58.5°
Viewing angle, vertical	35°
Tilt angle range	-90 - 45°
Tilt speed	65 °/sec
Pan range	0 - 360°
Pan speed	120 °/sec
Camera shutter speed	1/66500 - 2 s
Progressive scan	Yes
Field of view (FOV) angle (thermal module)	17 x 12.8°

Image sensor
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes
Effective sensor resolution (thermal module)	640 x 480 pixels

Lens system
Maximum aperture number	4
Auto focus	Yes
Minimum aperture number	1.4
Zoom capability	Yes
Optical zoom	32x
Digital zoom	12x
Focal length range	4.3 - 137.6 mm
Aperture number (thermal module)	1.6

Video
Image quality adjustment	Brightness, Contrast, Sharpness
Text caption overlay	Yes
Privacy masking	Yes
Video compression formats	H.264, H.265, M-JPEG, MPEG4
Maximum resolution	1920 x 1080 pixels
Supported video modes	1080p
Frame rate	60 fps
Video streaming	Yes

Storage
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Internal memory	2048 MB
Flash memory	512 MB

Power
Power source type	AC, DC
Power consumption (max)	204 W
Power consumption (typical)	16 W
AC input voltage	20 - 28 V

Operational conditions
Operating temperature (T-T)	-40 - 65 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 100 %

Full specification and details can be found in the Product Datasheet PDF file
