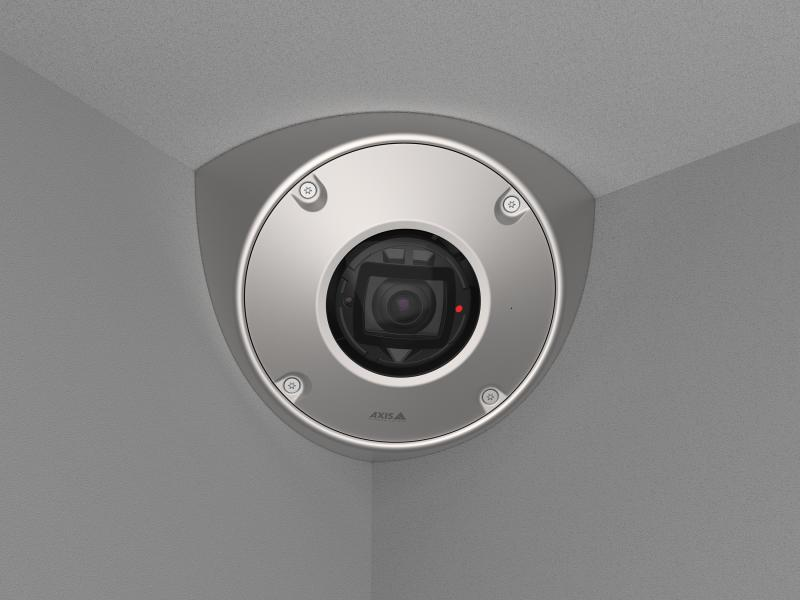

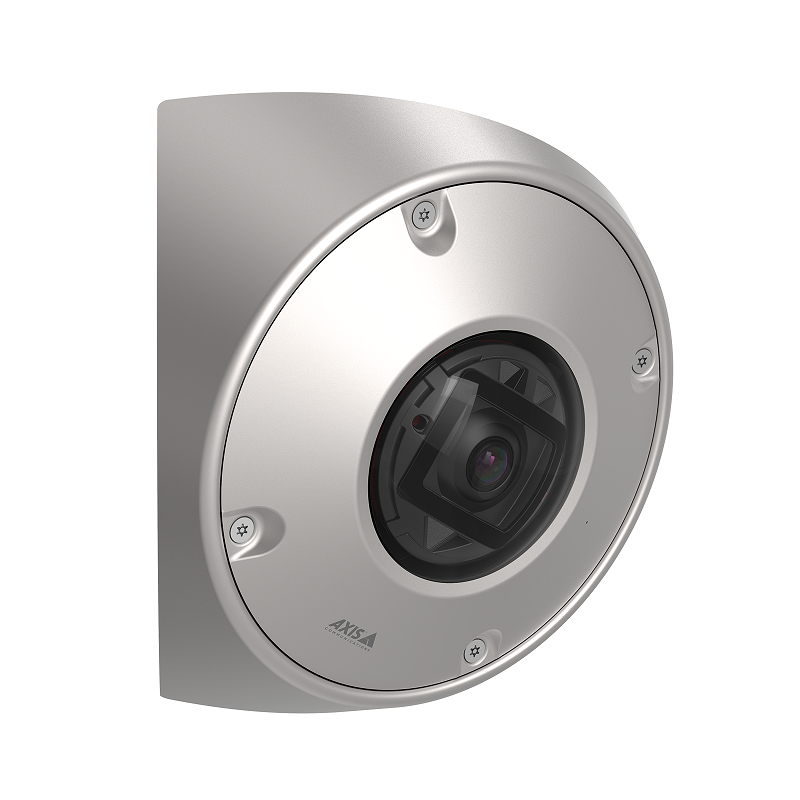

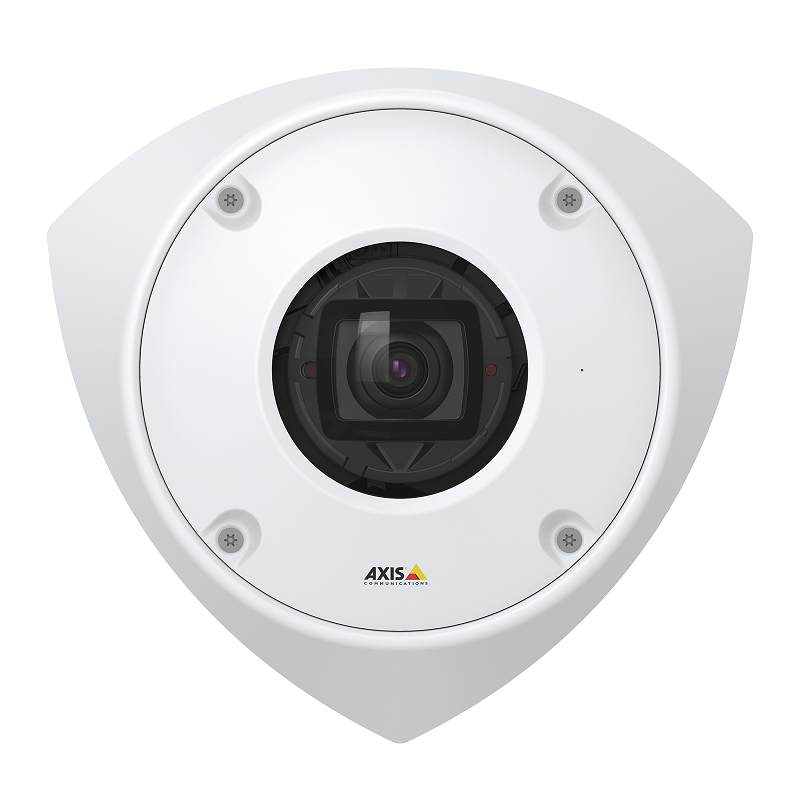

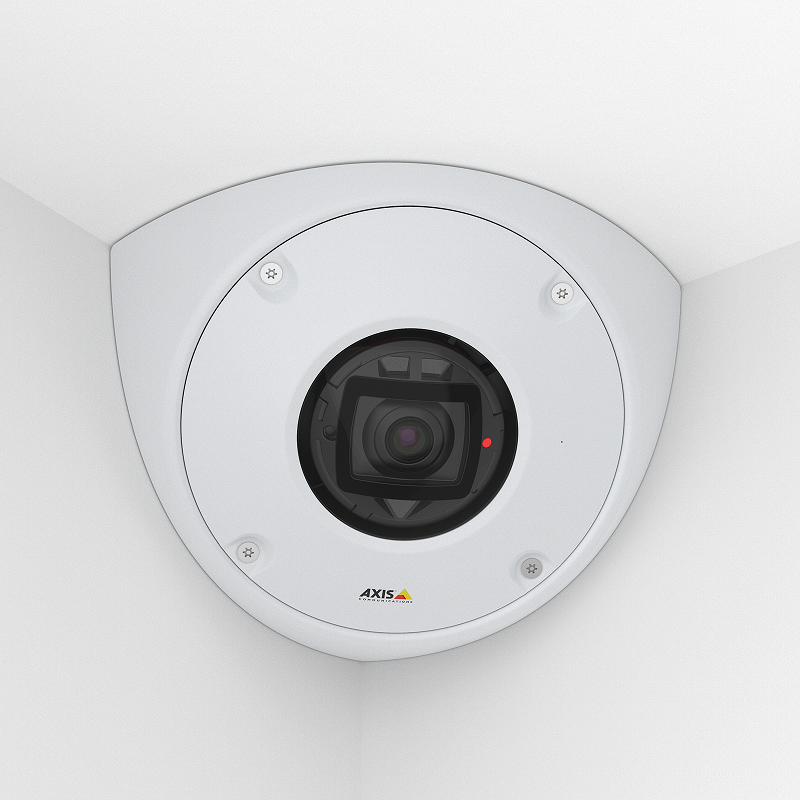

AXIS Q9216-SLV Network Camera
Impact-resistant anti-ligature camera
• Anti-ligature, robust (IK10+)
• Corner camera– no blind spots
• WDR and invisible IR (940 nm)
• Compact design – easy to install
• Zipstream supporting H.264 and H.265

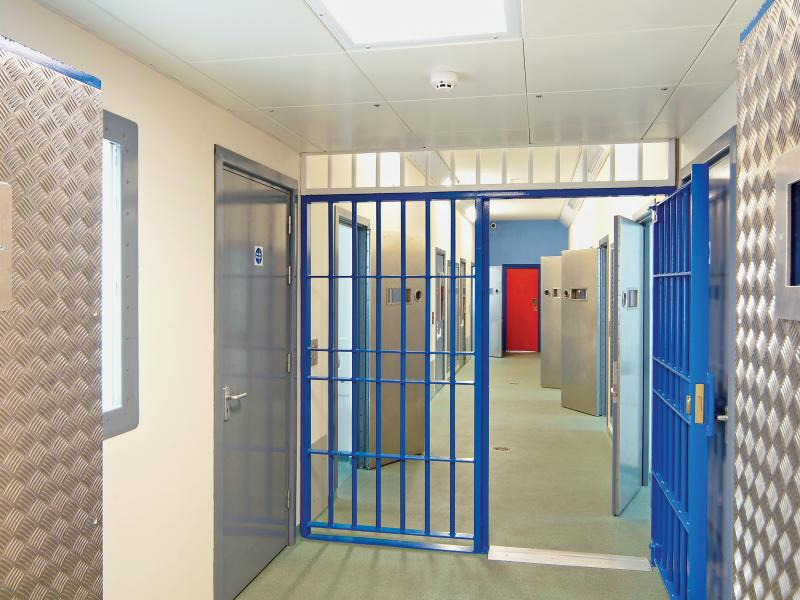

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera specially designed to provide a wide field-of-view and ensure no area is left uncovered. Available in white and elegant stainless-steel, this low power consuming camera is ideal for high-security installations such as in prisons and psychiatric wards.
AXIS Q9216-SLV offers 4 MP video quality and can cover 125 degrees horizontally and 95 degrees vertically, with no blind spots. Ideal in prison cells, it features 940 nm invisible IR illumination for unobtrusive surveillance in total darkness that won’t irritate or provoke the occupant.* Wide Dynamic Range (WDR) ensures clarity even when there’s both dark and light areas in the scene. And, Axis Zipstream technology with support for both H.264 and H.265 video compression significantly reduces bandwidth and storage requirements without compromising image quality.
With a ligature-resistant (anti-ligature) design, this robust camera can help prevent self-harm, especially important in high-security installations. The vandal-resistant IK10+ rated casing also offers IP66-rating for protection from dust and water. For added peace of mind, it includes a tampering alarm as well as shock and casing open detection so you can be informed if there’s any attempt to interfere with the camera. It features a removable built-in microphone which can be mounted if audio surveillance is required. Furthermore, AXIS Q9216-SLV includes an indication LED to see if the camera is active or not as well as polygonal privacy masking ensuring occupant privacy is respected.
This high-performance camera is packed with advanced security functionality to prevent unauthorized access and safeguard your system. Signed firmware ensures that only authorized firmware is installed and guarantees that it hasn't been compromised. Furthermore, it includes a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) to ensure secure storage of all cryptographic keys and certificates even in the event of a security breach.
For ease of maintenance, the stainless-steel casing is IP66- and IP6k9k-rated to allow cleaning with high pressure, high temperature water jets. If the camera is severely soiled or defaced, the abrasion-resistant two-part front cover is easily removed, and the window can be cleaned more thoroughly with detergent or simple graffiti remover.
This compact camera offers simple and cost-effective installation. The chassis and mounting bracket are specially designed for versatile cable management and mounting options. It’s possible to connect to various conduits and connectivity devices to the back of the camera, such as AXIS T8643 PoE+ over Coax Compact or other compatible media converters and PoE extenders. Additionally, you can mount a conduit top box with space for additional conduits. Once the camera is mounted you can create a ligature-resistant (anti-ligature) installation by applying tamper-resistant security sealant along the edges to permanently seal it to the wall or ceiling. And, even if the back chassis is sealed to the wall, the camera can still be easily removed for service and maintenance.
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Save bandwidth and space without sacrificing valuable information.
Make your network camera solution more intelligent with powerful analytics and functionality.
For intrusion detection
For detecting loiterers
Smart motion detection
| Performance | |
| Type | IP security camera |
| Connectivity technology | Wired |
| Infrared (IR) cut-off filter | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ control | Yes |
| Day/night mode | Yes |
| Design | |
| Form factor | Dome |
| Product colour | Stainless steel |
| Mounting type | Ceiling/wall |
| IP Rating | IP66, IP69, IP69K |
| Housing material | Stainless steel |
| IK code | IK10+ |
| Camera | |
| Viewing angle, horizontal | 125° |
| Viewing angle, vertical | 95° |
| Camera shutter speed | 1/32500 - 1/5 s |
| Camera pan control | No |
| Camera tilt control | No |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5") |
| Number of sensors | 1 |
| Progressive scan | Yes |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focus | Yes |
| Fixed focal lenght | 2.4 mm |
| Video | |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution | 2304 x 1728 pixels |
| Supported graphics resolutions | 320 x 240, 2304 x 1728 |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Storage | |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Power | |
| Power source type | PoE |
| Power consumption (max) | 10.8 W |
| Power consumption (typical) | 4.7 W |
Full specification and details can be found in the Product Datasheet PDF file
