| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
Input Type: |
|
No. Sockets: |
| Part No: | AHH12C19-16A-MD/F_C20/3B-1 |
| Manufacturer No: | H12C19-16A-MD/F_C20/3B-1 |
| Delivery: | In Stock: 7-10 Days |
 |

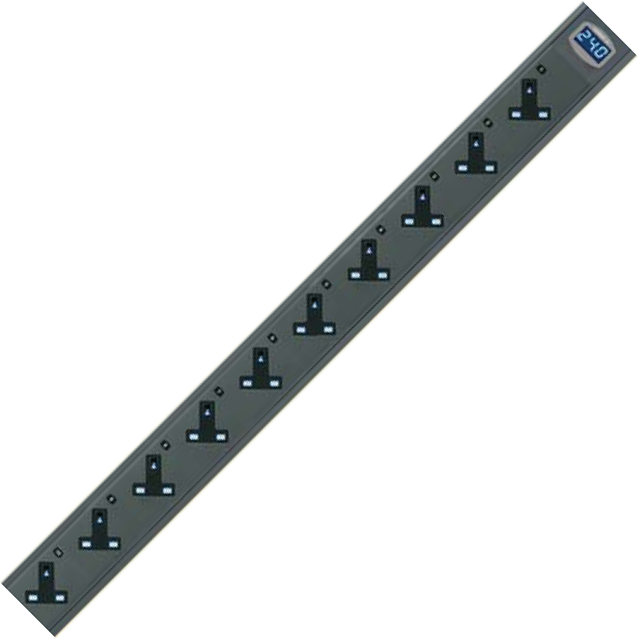

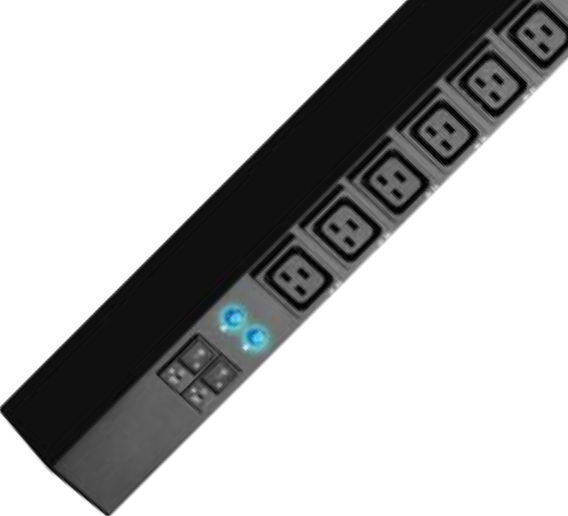

1-Phase Metered PDU
MD Series PDUs allow true RMS current local monitoring via a 3-digit RMS current meter. The blue LED display is easy-to-read from a distance and allows rapid access to the aggregate load on the circuit. It easily prevents circuit overloads during equipment installation and allows users to plan the capacity based on actual real time current monitoring. MD meter achieves the accuracy ± ( 3% of the reading + 5 last digits ) RMS.
Accurate Local Current Measurement
MD meter provides a local 3-digit RMS current measurement with accuracy ± ( 3% of the reading + 5 last digits ) RMS. It helps avoid current overload in a high density equipment environment. A Blue LED indicator allows easy local reading of current, especially when there is no lighting installed inside the rack as is typical in a data center environment.
Key Features
Broadest Portfolio of 1-Phase
MD Series PDU provides a complete solution with IEC C13, IEC C19, US NEMA, UK BS1363, GR Schuko outlet selections. Furthermore, configuration in various outlet types are available to meet specific end-users' requirements. For ease of installation, all MD PDU can be fitted with any of the following input plugs : EN60309 16Amp/ 32Amp, IEC C20, BS1363, L6-20P/ 30P, or unterminated.
Accurate Local Current Measurement
The Ammeter of the MD Series PDU provides a local 3-digit RMS current measurement with accuracy ± ( 3% of the reading + 5 last digits ) RMS. It helps avoid current overload in a high density equipment environment. A Blue LED indicator allows easy local reading of current, especially when there is no lighting installed inside the rack as is typical in a data center environment.
Quality PDUs in Short Lead Time
Austin Hughes designs highly reliable Single Phase PDUs using an efficient production, assembly and inventory process. Every InfraPower Rack PDU unit is 100% tested before shipment. All these efforts allow us to deliver quality PDUs to customers in the shortest lead time.
Lockable IEC & Colour Power Cord
The patented lockable IEC outlet is compatible with InfraPower lockable IEC color power cords for outlet locking and prevent accidental disconnection. 6 colors (Black, Grey, Red, Blue, Orange, Green) and 2 length (3ft, 6ft) of lockable power cords are available.
Fused IEC Outlet
Individually fused IEC Outlet PDU helps to prevent an overload of the active equipment and avoiding short circuiting the entire IEC outlet PDU.
Compliance
Our dedicated PDU compliance team ensures conformance to safety and reliability standards in US, EMEA, APAC & ASEAN.
Safety Devices
Safety operation is essential. InfraPower PDUs are integrated with Resettable Fuse or Hydraulic MCB to protect the PDU circuit from current overload. Extra safety devices (Surge Protector, EMI Filter, Earth-leakage circuit breaker, etc) also available on request.
Colour PDU Casings for Visualisation
Colored PDU chassis allow easy identification of power paths and simplifies management of power sources.
Inlet Options
IEC C20
16A Commando
32A Commando
| 1-Phase PDU Family | Intelligent | Metered | Basic | ||||
| Monitored | Switched | ||||||
| W | Wi | WS | WSi | MD | MK | ||
| Outlet Amp - kWh Measurement | • | • | |||||
| Outlet Switch ON / OFF | • | • | |||||
| Hot-Swap Meter | • | • | • | • | • | ||
| 1.8" Color LCD | • | • | • | • | • | ||
| Circuit Amp - kWh Measurement | • | • | • | • | • | ||
| Temp-Humid Sensor port x 2 | • | • | • | • | |||
| 16 PDU Levels in Single Daisy Chain | • | • | • | • | |||
| One IP Access up to 16 PDU Levels | • | • | • | • | |||
| SNMP Capability v2 / v3 | • | • | • | • | |||
| Free Management Software | • | • | • | • | |||
| Lockable IEC Outlet Model | • | • | • | • | • | • | • |
| Individually Fused Outlet Model | • | • | • | • | • | • | • |
| 63A Model (only for 230V PDU) | • | • | • | • | • | • | |
| Local Meter | • | • | • | • | • | • | |
| Tool-less Mounting for Vertical PDU | • | • | • | • | • | • | • |
| 0U / 1U / 2U Form Factors | • | • | • | • | • | • | • |
| Hydraulic MCB / Resettable Fuse Option | • | • | • | • | • | • | • |
| Voltage 230V / 208V / 110V | • | • | • | • | • | • | • |
| Operating temperature range -5°C to 60°C | • | • | • | • | • | • | • |
| Outlet types: IEC C13, IEC C19, IEC C13+C19, IEC Lockable, IEC Individually Fused, NEMA, UK, UK+IEC, SCH and SCH+IEC |
|||||||
