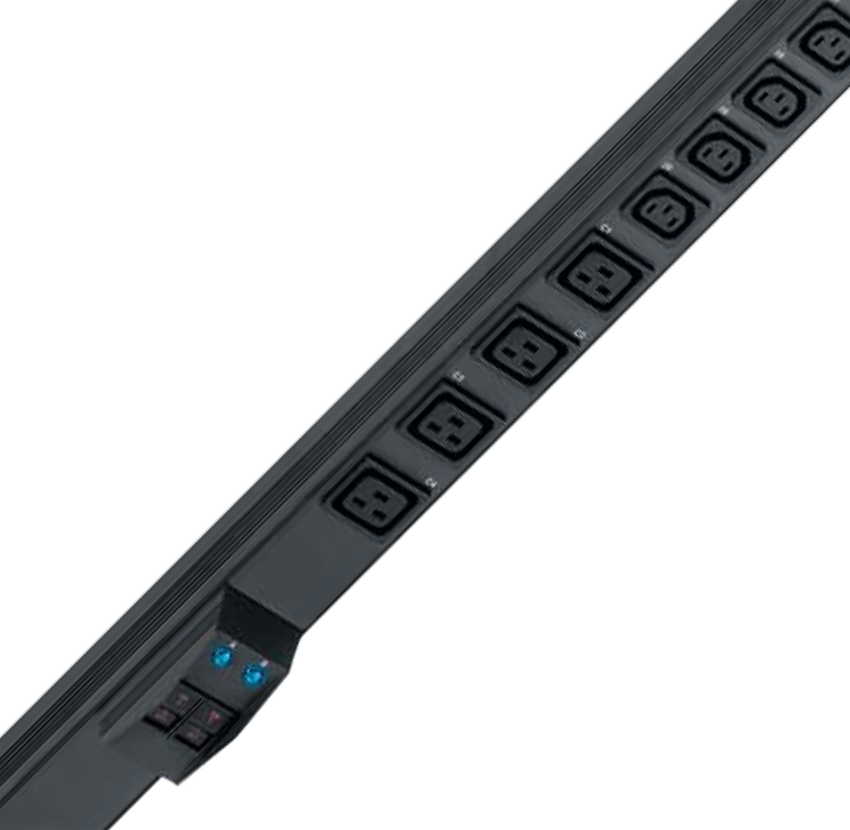

1-Phase Basic PDU
InfraPower® Basic Series PDUs are designed for cost efficient and reliable power distribution in data center. Customer can meet end to end equipment and management requirements using InfraPower® whilst meeting budget and application demands. Multiple outlet configurations are available in horizontal or vertical form factors.
For efficient mounting to rack, InfraPower vertical PDU steel casing is designed in slim profile for single outlet-row. For most of the global brand of IT racks, such slim casing design allows dual PDU mounting to one side in the rack for one side power cabling orientation.
Key Features
Broadest Portfolio of 1-Phase
Austin Hughes offers cost efficient PDU models with most popular configurations in the market. In addition, custom PDU configurations are also available on request for flexibility & specific user requirements.
Quality PDUs in Short Lead Time
Austin Hughes designs highly reliable Single Phase PDUs using an efficient production, assembly and inventory process. Every InfraPower Rack PDU unit is 100% tested before shipment. All these efforts allow us to deliver quality PDUs to customers in the shortest lead time.
Vertical or Horizontal Rackmount
For efficient mounting to rack, InfraPower 0U vertical PDU steel casing is designed in slim profile. Apart from 0U form factor, InfraPower offers a wide range of 1U / 2U rackmount PDU in order to meet the market needs.
Lockable IEC & Colour Power Cord
The patented lockable IEC outlet is compatible with InfraPower lockable IEC color power cords for outlet locking and prevent accidental disconnection. 6 colors (Black, Grey, Red, Blue, Orange, Green) and 2 length (3ft, 6ft) of lockable power cords are available.
Fused IEC Outlet
Individually fused IEC Outlet PDU helps to prevent an overload of the active equipment and avoiding short circuiting the entire IEC outlet PDU.
Compliance
Our dedicated PDU compliance team ensures conformance to safety and reliability standards in US, EMEA, APAC & ASEAN.
Safety Devices
Safety operation is essential. InfraPower PDUs are integrated with Resettable Fuse or Hydraulic MCB to protect the PDU circuit from current overload. Extra safety devices (Surge Protector, EMI Filter, Earth-leakage circuit breaker, etc) also available on request.
Colour PDU Casings for Visualisation
Colored PDU chassis allow easy identification of power paths and simplifies management of power sources.
Inlet Options
IEC C20
16A Commando
32A Commando
| 1-Phase PDU Family | Intelligent | Metered | Basic | ||||
| Monitored | Switched | ||||||
| W | Wi | WS | WSi | MD | MK | ||
| Outlet Amp - kWh Measurement | • | • | |||||
| Outlet Switch ON / OFF | • | • | |||||
| Hot-Swap Meter | • | • | • | • | • | ||
| 1.8" Color LCD | • | • | • | • | • | ||
| Circuit Amp - kWh Measurement | • | • | • | • | • | ||
| Temp-Humid Sensor port x 2 | • | • | • | • | |||
| 16 PDU Levels in Single Daisy Chain | • | • | • | • | |||
| One IP Access up to 16 PDU Levels | • | • | • | • | |||
| SNMP Capability v2 / v3 | • | • | • | • | |||
| Free Management Software | • | • | • | • | |||
| Lockable IEC Outlet Model | • | • | • | • | • | • | • |
| Individually Fused Outlet Model | • | • | • | • | • | • | • |
| 63A Model (only for 230V PDU) | • | • | • | • | • | • | |
| Local Meter | • | • | • | • | • | • | |
| Tool-less Mounting for Vertical PDU | • | • | • | • | • | • | • |
| 0U / 1U / 2U Form Factors | • | • | • | • | • | • | • |
| Hydraulic MCB / Resettable Fuse Option | • | • | • | • | • | • | • |
| Voltage 230V / 208V / 110V | • | • | • | • | • | • | • |
| Operating temperature range -5°C to 60°C | • | • | • | • | • | • | • |
| Outlet types: IEC C13, IEC C19, IEC C13+C19, IEC Lockable, IEC Individually Fused, NEMA, UK, UK+IEC, SCH and SCH+IEC |
|||||||
