| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | ATVE7833A |
| Manufacturer No: | VE7833A |
| Delivery: | In Stock: 5-7 Days |
 |

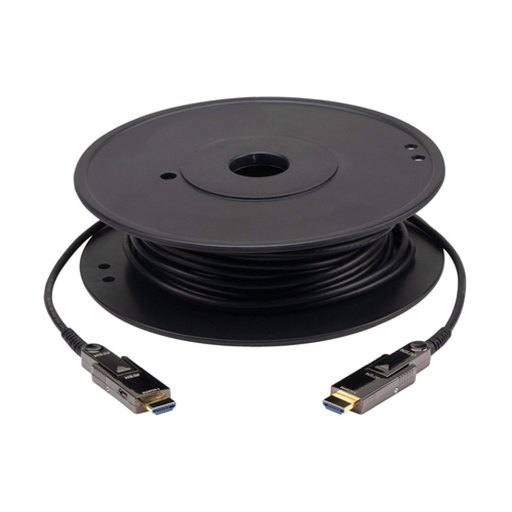

ATEN VE7833A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 10, 20, 30, 60, and 100 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps.
Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.
Engineered to meet the latest trend of integrator-friendly design, the VE7833A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Features
HDMI (3D, Deep Color, 4K, HDR, HEC, ARC); HDCP 2.2 compliant
Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 100 m
Supports HDR
Supports HDMI Ethernet Channel (HEC) – combines audio, video, and data streams into a cable to simplify the set-up
Supports Audio Return Channel (ARC) – connects TV and audio system, eliminating the need for an additional cable
Reduced EMI and RFI for lower noise interference
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
Additional power source is available via Micro USB cable for better compatibility
Gold-plated connectors for reliable transmissions
Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
Pluggable gender for easy installation
Plug-and-play
*For complete specifications see the documentation tab above.
ATEN VE7833A optical cables utilize AOC technology that enable conversion between input signals and output signals for optimum high bandwidth data transmissions. The EMI-resistant optical cables are available in 10, 20, 30, 60, and 100 m with full support of True 4K resolutions. They are fully compliant with HDCP 2.2 standards and meet HDMI specifications including 3D, deep color, and data rates up to 18 Gbps.
Supporting Dolby True HD and DTS-HD Master Audio, these optical cables guarantee lossless audio signal transmissions. This cable series comes with an HDMI Ethernet Channel (HEC) to combine audio, video, and data streams into a cable, enabling Internet connection sharing and IP-based applications over HDMI. Plus, it supports Audio Return Channel (ARC), allowing audio signal to travel to and from the TV and audio system, thereby reducing the number of cables between the television and external Home Theatre System or soundbar.
Engineered to meet the latest trend of integrator-friendly design, the VE7833A optical cables feature pluggable gender and gold-plated connectors. Therefore, the cables are ideal solutions for extending the reach of digital signages in a wide range of settings, such as traffic stations, shopping centers, and hospital facilities.
Features
HDMI (3D, Deep Color, 4K, HDR, HEC, ARC); HDCP 2.2 compliant
Extends True 4K signals 4096 x 2160 @ 60 Hz (4:4:4) up to 100 m
Supports HDR
Supports HDMI Ethernet Channel (HEC) – combines audio, video, and data streams into a cable to simplify the set-up
Supports Audio Return Channel (ARC) – connects TV and audio system, eliminating the need for an additional cable
Reduced EMI and RFI for lower noise interference
Supports multi audio channel – Dolby TrueHD and DTS-HD Master Audio
Robust cable pulling strength (Max. 10 kg) and compression load resistance (Max. 50 kg)
Additional power source is available via Micro USB cable for better compatibility
Gold-plated connectors for reliable transmissions
Compliant with International Flame Retardant Standards : UL CMP-OF (Plenum)
Pluggable gender for easy installation
Plug-and-play
*For complete specifications see the documentation tab above.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
