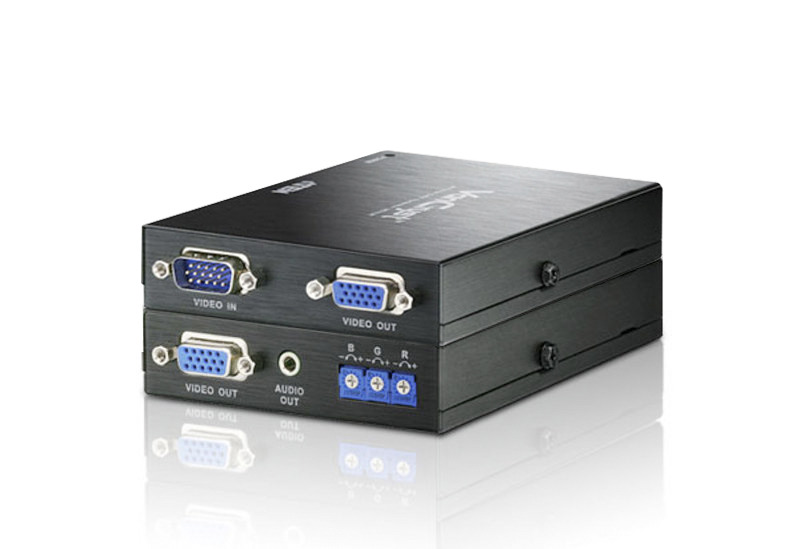

Aten VE170Q A/V Over Cat 5 Extender, 300m with Deskew

Overview

The VE170Q package consists of a transmitter (VE170T) and receiver (VE170RQ), which includes ATEN’s patented Deskew™ technology that supports resolutions up to 1280 x 1024 @ 300 m, and features manual synchronization of the RGB signals and correction of color phase and timing errors that occur over long distances.

The VE170Q VGA / Audio Cat 5 Extenders provides a flexible solution which is ideal for any professional A/V installation that requires multimedia content to be delivered over a long distance.

Package Contents

• 1x VE170T + VE170RQ VGA/Audio Cat 5 Extender
• 1x VGA/Audio Cable (1.8m)
• 2x Power Adapters
• 1x Mounting Kit
• 1x User instructions

Features

• Connects a transmitter and receiver via Cat 5e cable
• Long distance transmission - up to 1920 x 1200@150m; 1280 x 1024@300m
• Supports one local and one remote VGA display
• Long distance transmissions – up to 300 m
• Deskew™ – automatically synchronizes the time delay of RGB signals to compensate for distance
• Adjustable Gain Control – signal strength can be manually adjusted via video gain or video compensation tuners
• Audio supported (mono)
• Built-in ESD protection
• Rack-mountable
