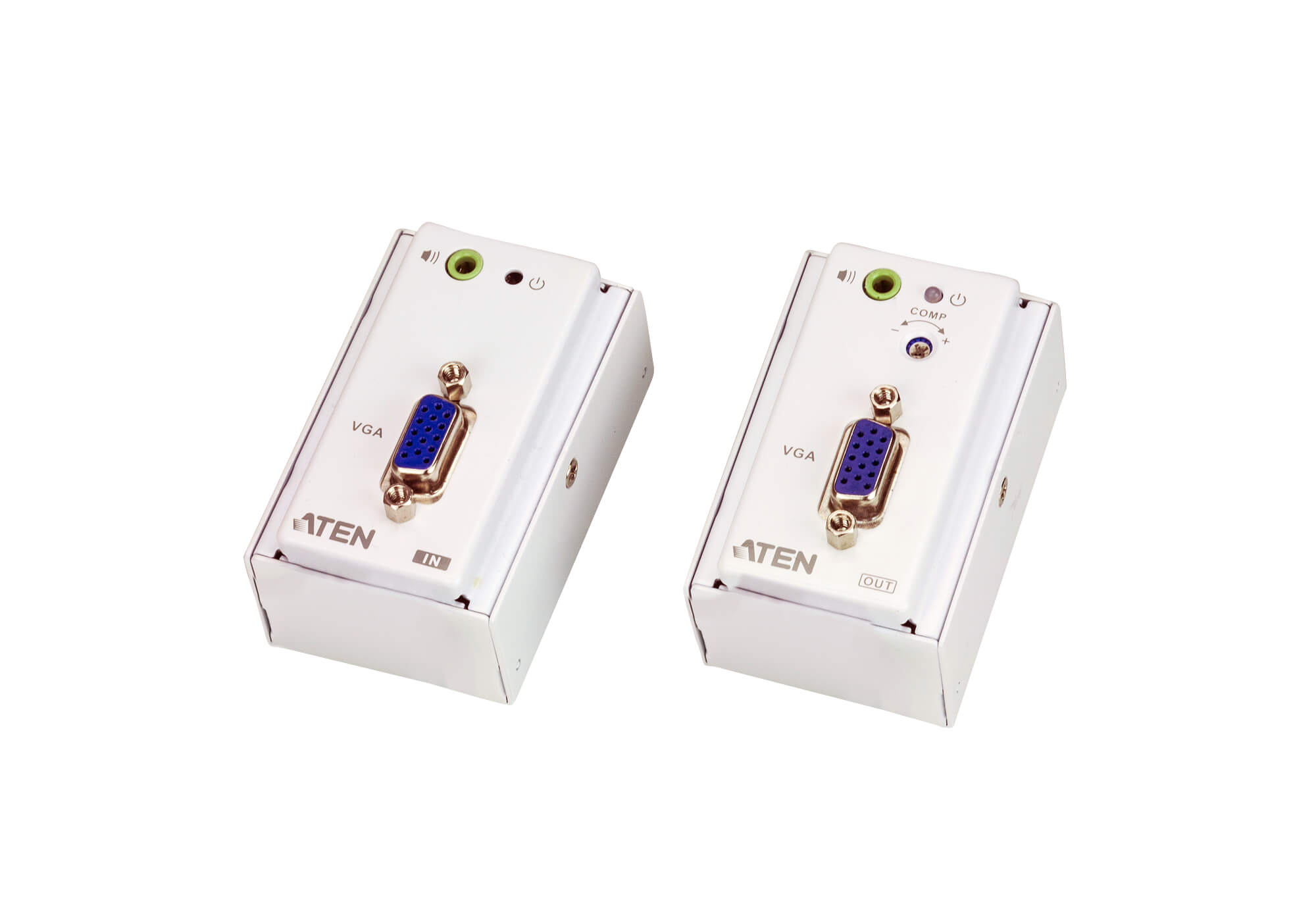

Aten VE157 Wall Plate VGA /Audio Cat 5 Extender,30M

Overview

The VE157 VGA/Audio Cat 5 Extender with MK Wall Plate is designed to be conveniently mounted in a one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes. It extends VGA and audio signals up to 150 meters over a Cat 5e/6 cable and supports wide screen formats while ensuring excellent video quality.

The VE157 can be easily powered at either the Transmitter or Receiver side using another Cat 5e/6 cable. The VE157’s compact wall plate design does away with bulky cables allowing a neat and convenient installation. Therefore, it is a perfect solution for function rooms, museums and any setting that requires equipment or cabling to be kept from the public’s view.

Package Contents

• 1x VE157 VGA/Audio Cat 5 Transmitter with MK Wall Plate
• 1x VE157 VGA/Audio Cat 5 Receiver with MK Wall Plate
• 1x Terminal Block Connector
• 1x Power Adapter
• 2x MK type Wall Plate Covers
• 8x Screw Covers
• 1x Screw kit
• 1x User Instructions

Features

• Uses two Cat 5e/6 cables to connect the local and remote units- one to transmit video, and another for power*
• Remotely powered from either the Transmitter or Receiver side**
• Extends the distance between VGA source and VGA display
• Supports superior video quality up to 1920 x 1200 @60 Hz at a distance of 30 m; 1280 x 1024 @ 60 Hz at a distance of 150 m
• Designed to mount in one- gang junction box for UK, Singapore, Hong Kong and other markets that apply MK type junction boxes.
• Adjustable Gain Control – manually adjusts signal strength to compensate for distance
• Supports wide screen formats
• Supports hot- plugging
• Supports stereo audio
• Built- in 8KV/ 15 KV ESD protection
• Plug- and- play with no software installation required
• LED indication of power sources / connection status
