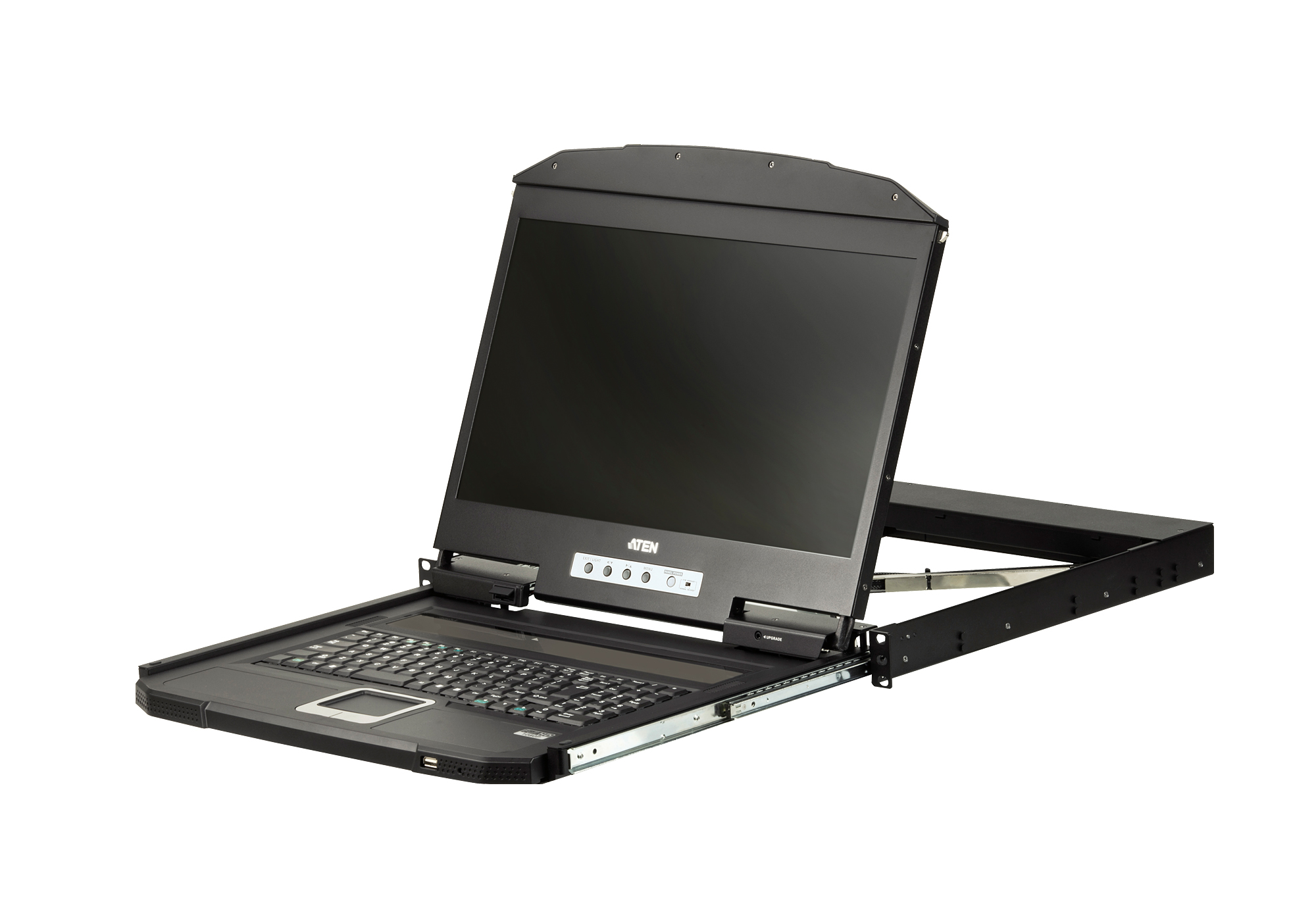

Aten CL3700NW 1U Ultra Short Depth 18.5in USB HDMI LCD Console

Overview

The CL3700 USB HDMI LCD Console is a short depth single rail LCD KVM console featuring an 18.5" LED-backlit widescreen LCD monitor with an integrated keyboard and touchpad. The short-depth design fits all 19" equipment cabinets, and is especially suitable for shallow racks. The CL3700 provides an ideal space-saving solution for special environments such as outside broadcast vans (OB vans) and compact control rooms.

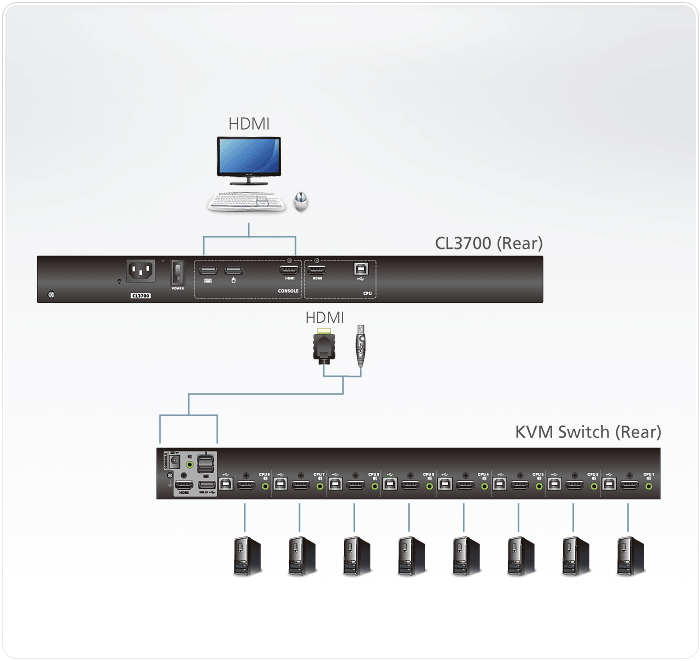

The CL3700 is a dedicated front end sliding console for compatible HDMI KVM switches. The CL3700NW’s full HD widescreen LCD monitor ensures excellent video quality and provides ample viewing area. For added convenience, users can choose to manage the computer from an external console. The CL3700 features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (USB keyboard/mouse and HDMI monitor) are provided on the rear panel.

With a rich feature set, the CL3700 is designed to exceed the requirements for space utility optimization, superior video quality, adaptive deployment, and operational versatility, and is ideal for applications such as mobile live streaming in the broadcasting sector or control rooms with limited space in any industry.

Package Contents

• 1x CL3700 LCD KVM Console with Standard Rack Mount Kit
• 1x USB HDMI KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft)
• 1x Firmware Upgrade Cable
• 1x Power Cord
• 1x User Instructions

Features

Space Utility Optimization

• Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
• Integrated LCD KVM console with an 18.5'' LED-backlit widescreen LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
• Short-depth design allows you to work with your rack-mounting equipment in narrow spaces
• Console lock – enables the console drawer to remain securely locked away in position when not in use
• Optional 2-in-1U Mounting Kit (2K-0001/2K-0002/2K-0007) – fitting the CL3700 and a rack KVM switch/KVM over IP switch in 1U of space on a rack for space-saving, easy and flexible operation*

Remarkable Video Experience

• Supports HDMI video input
• The 18.5" LCD screen offers resolutions of up to 1920 x 1080 (Full HD) @ 60Hz for CL3700NW and resolutions of up to 1366 x 768 @ 60Hz for CL3700NX
• External console supports input video resolutions up to 1920 x 1200 @ 60Hz

Installation Flexibility

• Standard rack mount kit included
• Optional rack mount kits available including easy installation options*
• No software required
• Firmware upgradable
• Supports hot-plugging

Reliability and Operational Versatility

• Supports an external console with USB / HDMI connectors
• Additional hot-pluggable USB mouse port on front panel (also functions as a USB peripheral port)
• Console selection via hotkey
• Standard 105-key keyboard
• The design complies to the UL 60950-1 and CAN/CSA standards
