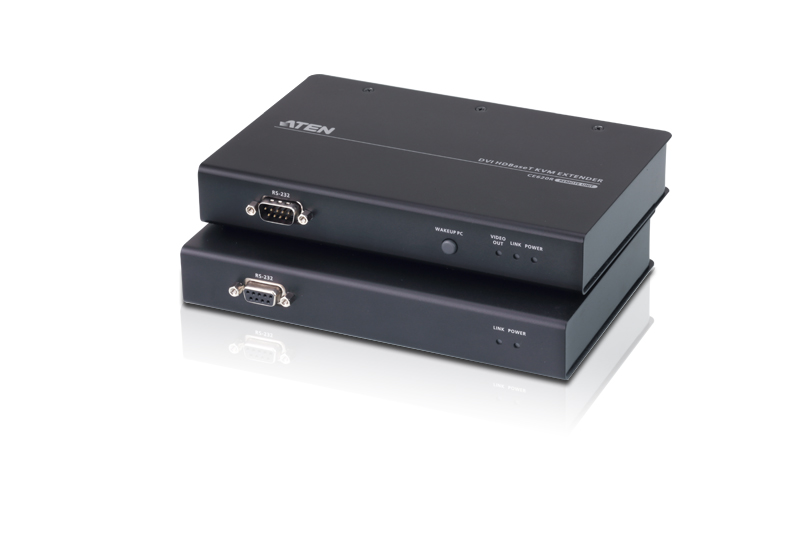

Aten CE620 USB DVI HDBaseT2.0 KVM Extender

Overview

The ATEN CE620 USB DVI HDBaseT™ 2.0 KVM Extender integrates the latest HDBaseT™ 2.0 technologies to provide the most reliable transmission of video, audio, USB and RS-232 signals available on the market. Featured with a Long Reach mode, the CE620 delivers high-quality DVI video, PCM 2-channel digital audio, USB 2.0, and RS-232 signals up to 150 meters using a single Cat6/6a/ATEN 2L-2910 Cat 6 cable. With a simple cable installation supporting various signals, the CE620 is ideal for applications where convenient remote access is required – in places such as transportation control centers, medical facilities, industrial warehouses and extended workstations.

Package Contents

• 1x CE620L USB DVI HDBaseT 2.0 KVM Extender (Local Unit)
• 1x CE620R USB DVI HDBaseT 2.0 KVM Extender (Remote Unit)
• 1x Custom KVM Cable (DVI, USB; 1.8m/6ft)
• 2x Power Adapters
• 2x Mounting Kits
• 8x Foot Pads
• 1x User Instructions

Features

• HDBaseT™ 2.0 connectivity technology
• Extends video, audio, USB and RS-232 signals via a single Ethernet cable
• EDID Buffer for smooth power-up and the highest quality display
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
• Long distance superior video quality
• HDBaseT™ Standard mode up to 1920 x 1200 @ 100 m
• HDBaseT™ Long Reach mode up to 1920 x 1080 @ 150 m
• Long Reach mode switch — switches between HDBaseT™ Standard and Long Reach modes in a snap
• 3 USB 2.0 ports for keyboard/mouse and peripherals
• Supports 2-channel PCM digital audio — ensuring highquality audio transmissions
• Supports PC Wakeup function via pushbutton or hotkey
• Built-in 8KV/15KV ESD pr otection (Contact voltage 8KV; Air voltage 15KV)
