| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | FEAT-GS980M/52-30 |
| Manufacturer No: | AT-GS980M/52-30 |
| Delivery: | In Stock: 5-7 Days |
 |

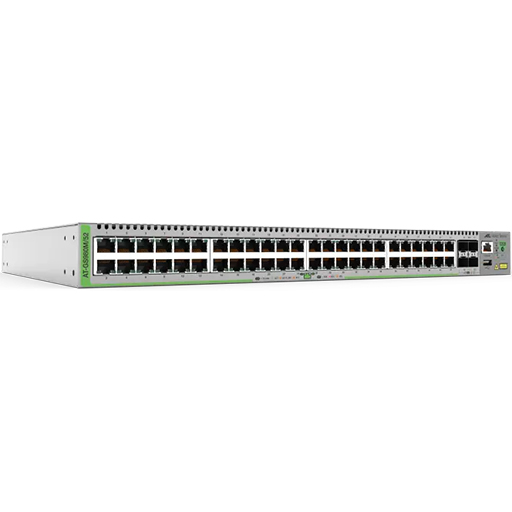

The Allied Telesis AT-GS980M/52-30 is a high-density, Layer 3 managed Gigabit edge switch designed for organisations that require reliable performance, advanced control, and Power over Ethernet Plus (PoE+). Part of the CentreCOM GS980M Series, this 48-port Gigabit switch with 4 SFP uplinks delivers enterprise-grade features in a space-saving, rack-mountable form factor, making it ideal for modern network edge deployments such as offices, education, retail, and surveillance environments.
The AT-GS980M/52-30 provides 48 Gigabit Ethernet access ports, enabling Gigabit-to-the-desktop performance for bandwidth-intensive applications. Combined with four dedicated SFP uplinks, the switch supports high-speed fibre connections to aggregation or core layers, ensuring scalable and future-ready network designs.
Designed to simplify deployments at the network edge, this model delivers PoE+ across all 48 copper ports, supplying up to 30 watts per port. With a total PoE budget of 740W, it can reliably power IP phones, wireless access points, and video surveillance cameras without the need for additional power sources.
The switch supports Layer 3 features including static routing and RIP for both IPv4 and IPv6, allowing efficient traffic segmentation and routing at the edge. With support for up to 4094 VLANs and 16K MAC addresses, it offers flexibility for complex network topologies.
Built on the AlliedWare Plus operating system, the AT-GS980M/52-30 integrates seamlessly into Allied Telesis AMF Plus environments. This enables zero-touch provisioning, automated configuration, and rapid recovery, reducing operational overhead and ongoing management costs.
Comprehensive security features protect both users and infrastructure. These include IEEE 802.1X authentication, dynamic and static ACLs, DHCP snooping, IP source guard, Dynamic ARP Inspection, and secure management protocols such as SSH and HTTPS. Private VLANs and port isolation further enhance edge security.
With a switching fabric of 104 Gbps and a forwarding rate of 77.4 Mpps, the switch delivers wire-speed performance across all ports. Advanced Quality of Service (QoS) features, including eight priority queues per port and traffic classification, ensure optimal handling of voice, video, and real-time applications.
The AT-GS980M/52-30 includes enterprise-grade resiliency features such as Ethernet Protection Switched Ring (EPSR), Rapid Spanning Tree, link aggregation, and loop protection. Diagnostic tools like Active Fiber Monitoring, optical DDM, port mirroring, and built-in self-test help maintain uptime and quickly identify issues.
Housed in a 1RU rack-mountable chassis, the switch measures 441 x 359 x 44 mm and is suited to space-constrained network cabinets. Eco-friendly modes allow unused ports and LEDs to be disabled, reducing power consumption and operational costs.
The Allied Telesis AT-GS980M/52-30 is a high-density, Layer 3 managed Gigabit edge switch designed for organisations that require reliable performance, advanced control, and Power over Ethernet Plus (PoE+). Part of the CentreCOM GS980M Series, this 48-port Gigabit switch with 4 SFP uplinks delivers enterprise-grade features in a space-saving, rack-mountable form factor, making it ideal for modern network edge deployments such as offices, education, retail, and surveillance environments.
The AT-GS980M/52-30 provides 48 Gigabit Ethernet access ports, enabling Gigabit-to-the-desktop performance for bandwidth-intensive applications. Combined with four dedicated SFP uplinks, the switch supports high-speed fibre connections to aggregation or core layers, ensuring scalable and future-ready network designs.
Designed to simplify deployments at the network edge, this model delivers PoE+ across all 48 copper ports, supplying up to 30 watts per port. With a total PoE budget of 740W, it can reliably power IP phones, wireless access points, and video surveillance cameras without the need for additional power sources.
The switch supports Layer 3 features including static routing and RIP for both IPv4 and IPv6, allowing efficient traffic segmentation and routing at the edge. With support for up to 4094 VLANs and 16K MAC addresses, it offers flexibility for complex network topologies.
Built on the AlliedWare Plus operating system, the AT-GS980M/52-30 integrates seamlessly into Allied Telesis AMF Plus environments. This enables zero-touch provisioning, automated configuration, and rapid recovery, reducing operational overhead and ongoing management costs.
Comprehensive security features protect both users and infrastructure. These include IEEE 802.1X authentication, dynamic and static ACLs, DHCP snooping, IP source guard, Dynamic ARP Inspection, and secure management protocols such as SSH and HTTPS. Private VLANs and port isolation further enhance edge security.
With a switching fabric of 104 Gbps and a forwarding rate of 77.4 Mpps, the switch delivers wire-speed performance across all ports. Advanced Quality of Service (QoS) features, including eight priority queues per port and traffic classification, ensure optimal handling of voice, video, and real-time applications.
The AT-GS980M/52-30 includes enterprise-grade resiliency features such as Ethernet Protection Switched Ring (EPSR), Rapid Spanning Tree, link aggregation, and loop protection. Diagnostic tools like Active Fiber Monitoring, optical DDM, port mirroring, and built-in self-test help maintain uptime and quickly identify issues.
Housed in a 1RU rack-mountable chassis, the switch measures 441 x 359 x 44 mm and is suited to space-constrained network cabinets. Eco-friendly modes allow unused ports and LEDs to be disabled, reducing power consumption and operational costs.
Product data is provided by Icecat, we do not warrant the accuracy of the material above.
