End of Life Product
£170.00
£204.00 Inc VAT
Earn 170 Data Points when purchasing this product. More Info
Sorry, this item is no longer available from Comms Express.

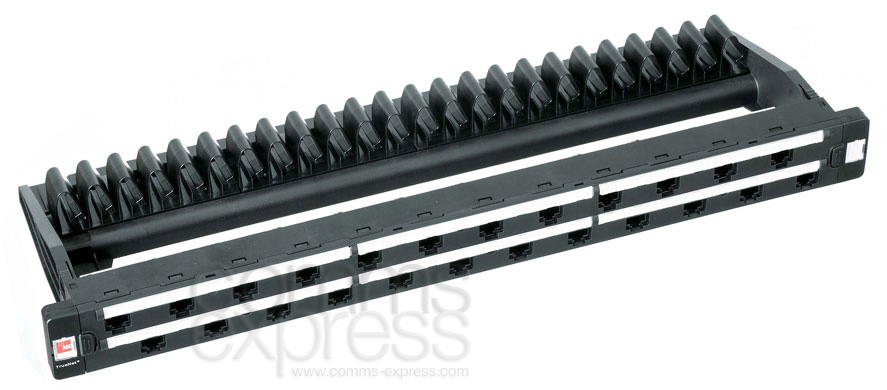

24 Port CopperTen UTP Patch Panel

by TE Connectivity
See more product details
Part No:KRPAN6A
Manufacturer No:6527 1 743-00
Delivery: End of Life Product
More Related Items
Click to change options
Colour:
Apply
£125.00 Ex VAT
Qty:
Click to change options
Colour:
Door:
Flat Pack:
Accessory Kit:
Apply
£516.00 Ex VAT
Qty:
Email product to a friend
X
  • Scroll to top
    24 Port CopperTen UTP Patch Panel

    The CopperTen™ unshielded (UTP) patch panel is a core component of the CopperTen solution.  To deliver an Augmented Category 6 solution, insertion loss and alien crosstalk that is prevalent at high frequencies needed to be addressed.

    This involved electrical changes to the jack and introduction of a carbon cap alonside the use of a plastic 19” 1U housing to deliver the full 24 ports.

    The standard CopperTen UTP patch panel has an innovative cable management system that clips into the panel and grips the cable, which allows for fast installation and protection.

    A key feature of the panel is the unique upgrade path to Physical Layer Management (PLM) providing complete end-to-end, real time control and remote management of the Enterprise network.  This industry first design incorporates a removable front fascia which can easily be replaced with the PLM fascia.  This upgrade is quick, simple, tool-less and has no impact on the permanent wiring leaving the existing jacks untouched.

    Features

    • Supports 10 Gigabit Ethernet over unshielded copper to a full 100m up to 500MHz
    • Exceeds the requirements of IEEE 802.3an (10GBASE-T) and channel requirements of ISO/IEC 11801:2002 amendment
    • 19” 1U design incorporating 24 CopperTen UTP modular jacks
    • Unique upgrade path to PLM
    • Innovative and integrated cable management system allows for swift installation and cable protection
    • Maximises productivity levels with 10 times the data throughput of Category 6
    • True future proofing for tomorrow’s network applications
    • Covered by TrueNet System Warranty



    The CopperTen™ unshielded (UTP) patch panel is a core component of the CopperTen solution.  To deliver an Augmented Category 6 solution, insertion loss and alien crosstalk that is prevalent at high frequencies needed to be addressed.

    This involved electrical changes to the jack and introduction of a carbon cap alonside the use of a plastic 19” 1U housing to deliver the full 24 ports.

    The standard CopperTen UTP patch panel has an innovative cable management system that clips into the panel and grips the cable, which allows for fast installation and protection.

    A key feature of the panel is the unique upgrade path to Physical Layer Management (PLM) providing complete end-to-end, real time control and remote management of the Enterprise network.  This industry first design incorporates a removable front fascia which can easily be replaced with the PLM fascia.  This upgrade is quick, simple, tool-less and has no impact on the permanent wiring leaving the existing jacks untouched.

    Features

    • Supports 10 Gigabit Ethernet over unshielded copper to a full 100m up to 500MHz
    • Exceeds the requirements of IEEE 802.3an (10GBASE-T) and channel requirements of ISO/IEC 11801:2002 amendment
    • 19” 1U design incorporating 24 CopperTen UTP modular jacks
    • Unique upgrade path to PLM
    • Innovative and integrated cable management system allows for swift installation and cable protection
    • Maximises productivity levels with 10 times the data throughput of Category 6
    • True future proofing for tomorrow’s network applications
    • Covered by TrueNet System Warranty
