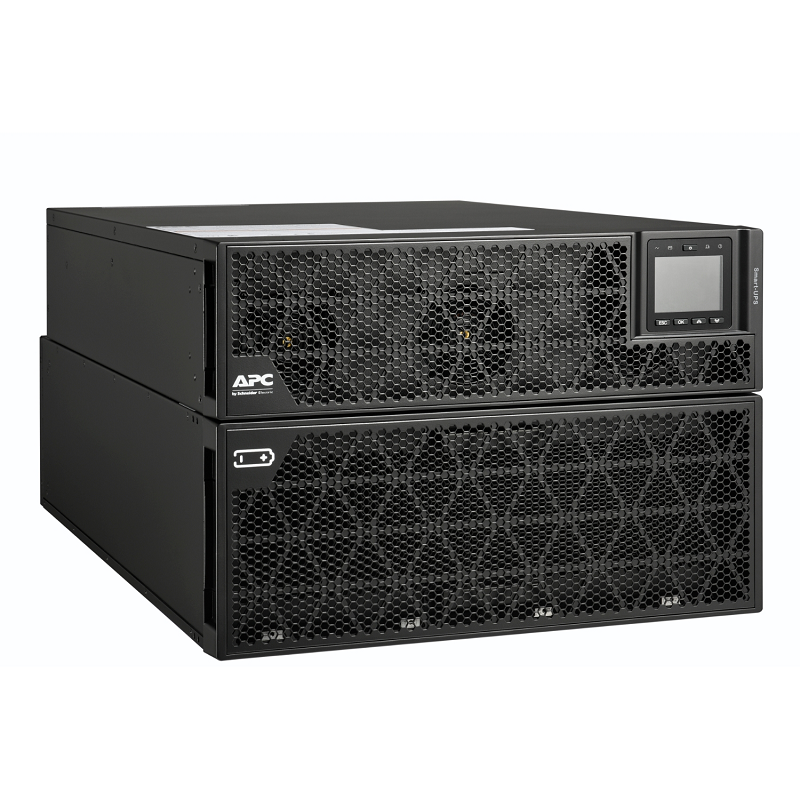

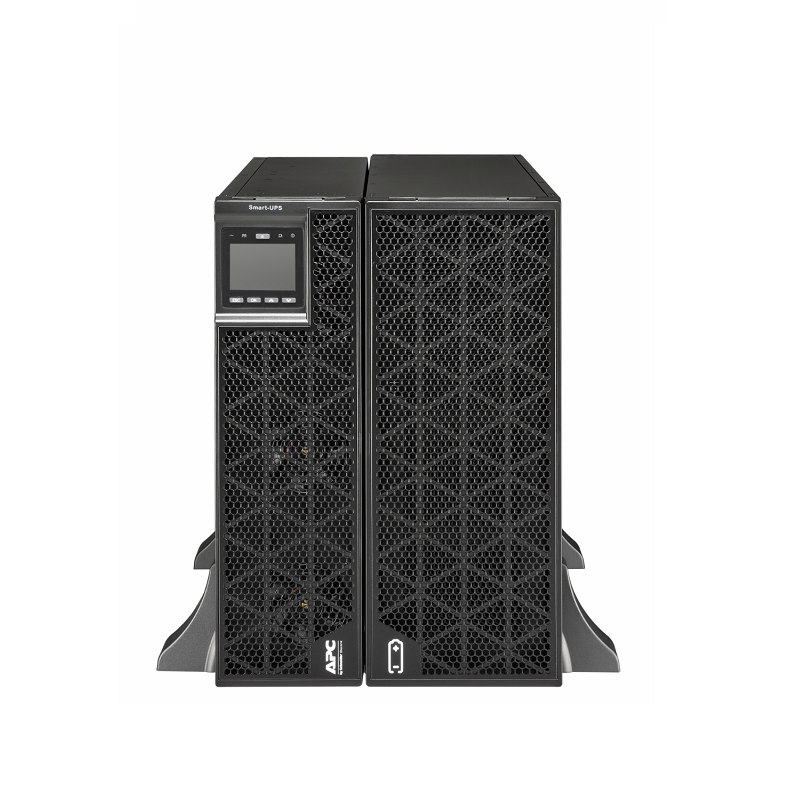

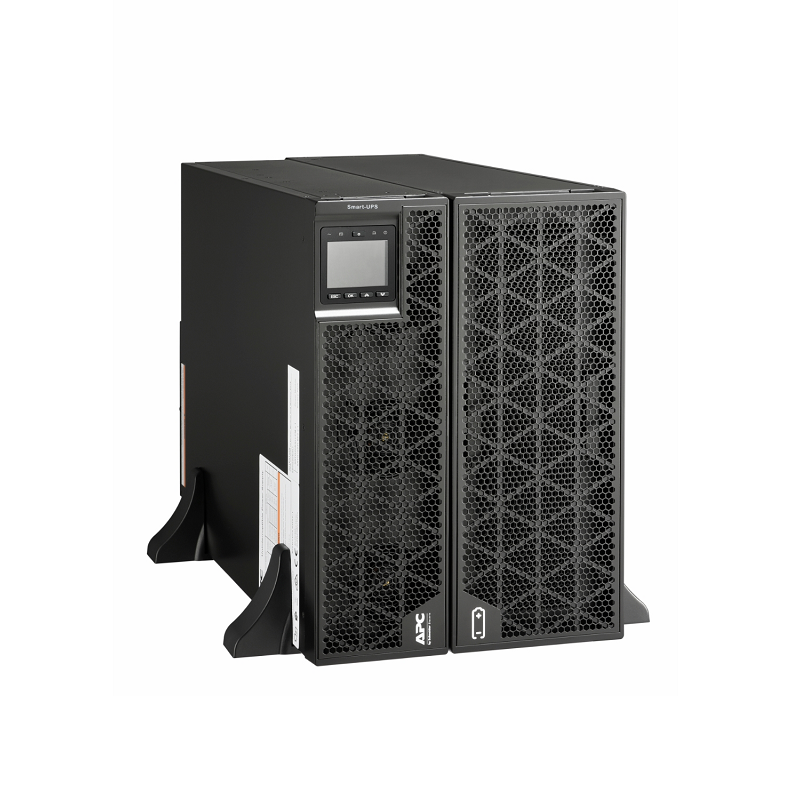

APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit
Ideal for a range of applications, from network and server rooms to branch offices and secure power uses, the new APC Smart-UPS RT On-Line provides high-density, double-conversion online power protection, scalable runtime, and affordability without sacrificing quality.
Smart-UPS On-Line is capable of supporting loads from 15 - 20kVA in a flexible, compact rack/tower convertible form. When business systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
Smart-UPS RT On-Line is available at a competitive price, providing refreshed features and value to customers with demanding power conditions.
15kVA/15kW double-conversion on-line pure sine wave rack/tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/tower convertible (SRTGRK1 rail kit sold separately)
Delivers clean power with zero transfer time for critical or sensitive devices
Add up to 4 external battery packs (SRTG192XLBP2) for extended runtime
More real output power in watts. Unity on 15kVA – 20kVA units
Achieves efficiency greater than 98%, which helps save utility and cooling costs without compromising performance or reliability.
Intuitive interface provides detailed and accurate information with the ability to configure locally.
Ability to control a group of receptacles. Ships with AP9641.
1PH:1PH, 3PH:1PH and 3PH:3PH power options for installation flexibility.
Ability to add APC accessories for additional communication options.
Additional year of warranty protection for electronics provides peace of mind
Remote UPS shutoff in the event of an emergency
Serial, USB and SmartSlot for network accessory cards.

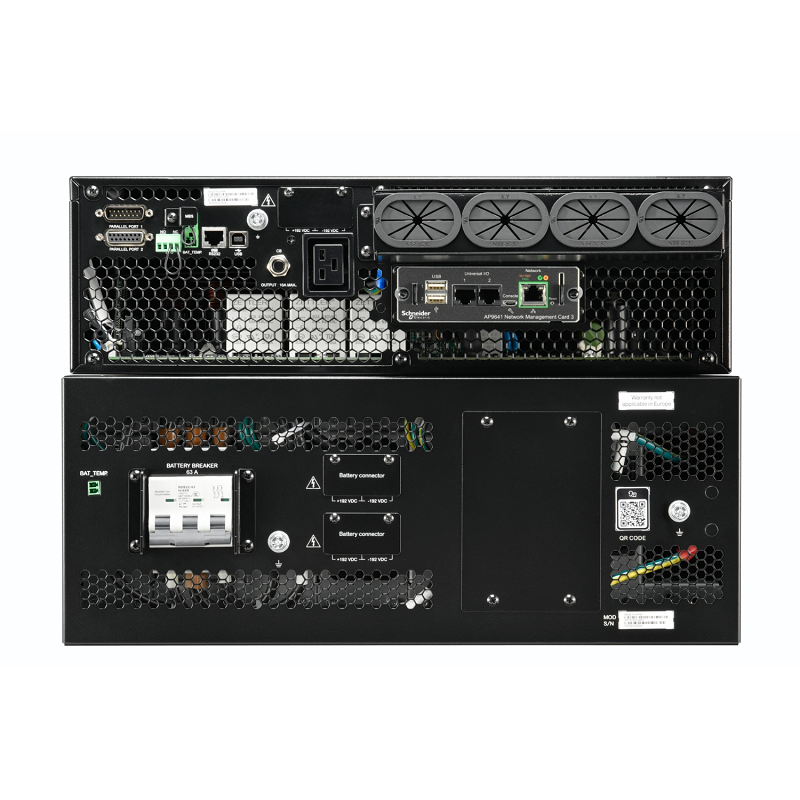

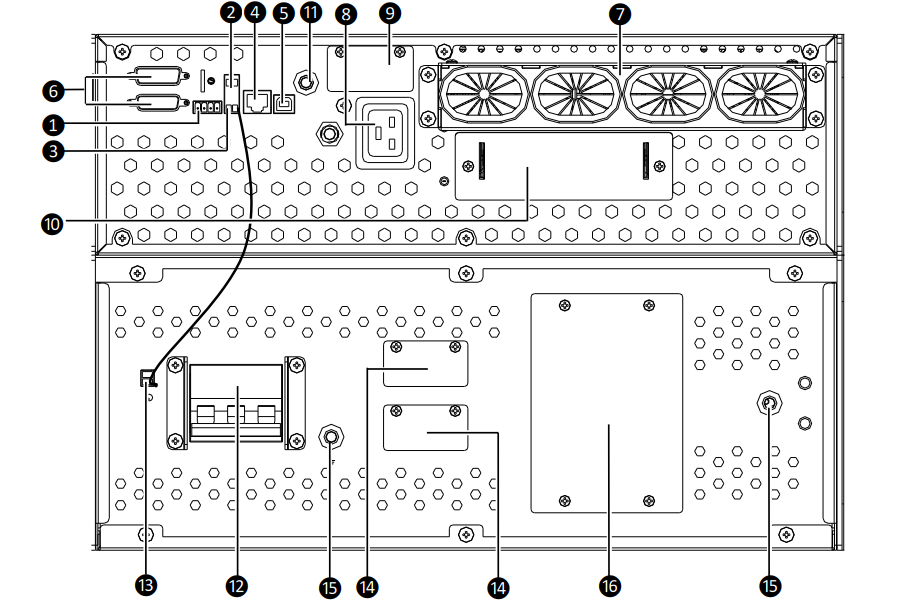

1. EPO terminal
The Emergency Power Off (EPO) terminal allows the user to connect the UPS to a central EPO system.
2. MBS terminal
Maintenance bypass signal. Connect MBS cable to UPS before maintenance switch turned on. Pull out the MBS terminal when necessary to maintain the UPS.
3. BAT_T terminal
Battery temperature sensor.
4. RS232 port
The serial com port is used to communicate with the UPS. Use only interface kits supplied or approved by APC by Schneider Electric. Any other serial interface cable will be incompatible with the UPS connector.
5. USB port
Communication interface only.
6. Parallel Port
Parallel communication port.
7. Input/Output hardwire terminals
Remove the cover to connect input and output wires to the hardwire terminal blocks
8. Output socket with circuit breaker.
Connect electronic devices to these outlets
9. Battery Connector
External battery connector.
10. Smart Slot
The Smart Slot can be used to connect optional management accessories
11. Ground Terminal
Connect to ground.
12. Battery breaker
Connects or disconnects batteries
13. BAT_T
Battery temperature sensor
14. Battery connector
Enables connection of battery pack to UPS or connection of additional battery packs.
15. Ground Terminal
Connect to ground.
16. Battery Fuse
2 nos. of 100 A / 500 VDC fuse
Additional information can be found in the Brochure PDF file
Installation information can be found in the User Guide PDF file
