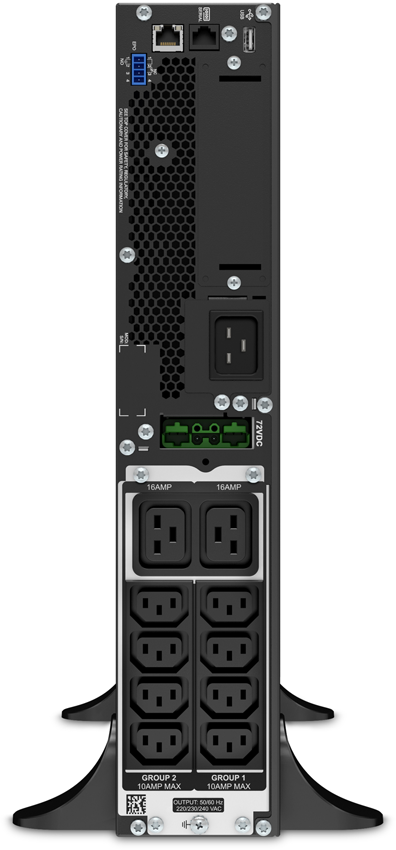

APC SRT2200XLI Smart-UPS 2200VA 230V
Tower
by APC
See more product details
Part No:
FESRT2200XLI
Manufacturer No:
SRT2200XLI
Delivery:
In Stock: Next Day
Delivery to UK Mainland on orders placed before 4:30pm Mon-Fri currently estimated 1-2 Working Days due to current service disruption. Additional charges may apply dependant on location, floor standing cabinets and other heavy/bulky items.
Smart UPS On Line provides high-density, double-conversion online power protection for servers, voice/data networks,
medical labs, and light industrial applications.
The Smart UPS On Line supports loads from 1 kVA to 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and
10 kVA models feature unity output power factor, allowing them to handle power-hungry blade servers and heavily loaded
equipment racks. When business-critical systems require extended runtime, Smart UPS On Line can be configured with
multiple battery packs to meet demanding uptime requirements.
The included PowerChute Network Shutdown management software enables unattended, graceful shutdown of network
operating systems. Models from 5 kVA to 10 kVA include an integrated network management card for remote
administration. The Smart UPS On Line family offers value for customers facing demanding power conditions, featuring a
wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power
factor correction.
2200VA/1980W double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK4 or SRTRK3 sold separately)
Delivers clean power with zero transfer time for critical or sensitive devices
Add up to 10 external battery packs (SRT72BP) for extended runtime
Standard Features
Best in class power density: More real power in watts, 0.82 to 0.9 pf on the 1, 1.5, 2.2, and
3 kVA models. 0.85 pf on 5 kVA and Unity on 6–10 kVA units.
High efficiency "Green Mode": Achieves 98% efficiency, helping reduce utility and cooling
costs without compromising reliability.
Graphical LCD display with multicolor backlight: Intuitive interface provides detailed,
accurate information with local configuration capabilities.
Intelligent battery management: Temperature-compensated charging extends battery life, with
algorithms that recommend replacement dates and detect new battery packs.
Built-in energy meter: Measures energy use and displays UPS efficiency across operating modes
for easy tracking.
Operate without battery: Provides immediate protection when power returns after full battery
discharge.
Three-year warranty on electronics: Extra year of coverage for electronic components ensures
reliability.
LCD graphics display: Text and mimic diagrams show operation modes, parameters, and alarms.
ECO Mode: Bypasses unused components in good power conditions to maintain efficiency without
compromising protection.
Battery failure notification: Early fault analysis enables proactive maintenance.
Rack/Tower convertible: Preserves investment when transitioning between tower and rack
configurations.
Additional Features
Embedded network management card with environmental monitoring (5–10 kVA models): Enables
remote monitoring and control via Ethernet while freeing the SmartSlot for additional accessories.
Switched outlet group(s): Allows independent control of output receptacle groups. Features
include:
Reboot hung devices without cycling the entire UPS
Sequenced turn on/off
Load shedding based on battery time, runtime remaining, and overload
Scheduled power-off to conserve energy
Emergency power off (EPO): Remote UPS shutdown option with support for normally open (NO) or
normally closed (NC) contacts.
Communication ports: Serial, USB, Ethernet, and SmartSlot for network accessory cards.
Communication protocols: Modbus Serial, USB PowerSummary, HTTP, SNMP, and Telnet.
1:1, 3:1 input hard-wire options: Supports both 3-PH and 1-PH input wiring (230 V, 8–10 kVA
models).
Dual input: Enables a secondary input source connection to UPS bypass (230 V, 8–10 kVA
models).
APC Warranties available for this Product
APC Service Pack Warranty Extension (New Product Purchases)
Protection for your system, peace of mind for you -
With the APC Extended Warranty program, you will have peace of mind knowing that in the unlikely event of a failure, your product will be repaired or replaced quickly, minimizing downtime.
Our warranty guarantees free next business day delivery of parts or unit to ensure you get what you need as soon as you need it.
Battery Options for this Product
APC Replacement Battery Cartridge - APCRBC141
This APC Replacement Battery Cartridge fits selected APC Smart-UPS and Back-UPS, restoring power back-up capacity for home offices, small businesses, and IT departments.
This replacement battery cartridge (RBC) has a lifetime of three to five years, offers safe and reliable support to the UPS, and extends the useful life of your UPS. The APC RBC comes fully assembled and includes easy-to-follow replacement instructions, making hot-swap installation simple.
*This product is generally delivered next day but due to its weight and restrictions imposed on us by next day couriers, may take longer
APC External Battery Pack - BR24BPG
The APC Extended Run Battery Pack is the ideal companion for the APC Back-UPS Pro UPS (uninterruptible power supply).
The battery pack increases the duration of time that you can protect your electronic devices from damage and disconnect due to unexpected blackouts, voltage fluctuations, and other power disruptions.
Smart UPS On Line provides high density, double conversion online power protection for servers, voice/data networks, medical labs, and light industrial applications.
The Smart UPS On Line is capable of supporting loads from 1 kVA to 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power?hungry blade servers or heavily loaded equipment racks. When business critical systems require runtime in hours, not minutes, Smart UPS On Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart UPS On Line family helps to provide value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
Standard features
Best in class power density: More real power in watts, 0.82 to 0.9 pf on the 1, 1.5, 2.2 and 3 kVA models. 0.85 pf on 5 kVA and Unity on 6 kVA – 10 kVA units.
High efficiency "Green Mode": Achieves 98% efficiency, which helps save utility and cooling costs without compromising performance or reliability.
Graphical LCD display with multicolor backlight: Intuitive interface provides detailed and accurate information with ability to configure locally.
Intelligent battery management: Temperature compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform the user which batteries need to be replaced and auto detect when additional battery packs are added.
Built in energy meter: Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
Operate without battery: Ability to immediately protect equipment when power returns after a complete discharge of the battery.
Three year warranty on electronics: Additional year of warranty protection for electronics provides peace of mind.
LCD graphics display - Text and mimic diagrams that display modes of operation, system parameters and alarms.
ECO Mode - Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection
Rack/Tower convertible - Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Additional features
Embedded network management card with environmental monitoring (5 kVA – 10 kVA models): Remote monitoring and control of the UPS and the environment via Ethernet connection while freeing up the SmartSlot so customers can add accessories for additional communication options.
Switched outlet group(s): Ability to control a group of output load receptacles independent from the main UPS. Enables:
Rebooting hung device without cycling the entire UPS
Sequenced turn on/off
Shedding of noncritical loads based on a variety of parameters (battery time, runtime remaining, and overload)
Scheduled time off to conserve energy
Emergency power off (EPO): Remote UPS shutoff in the event of an emergency. The UPS can accept normally open (NO) or normally closed (NC) contacts.
Communication ports: Serial, USB, Ethernet, and SmartSlot for network accessory cards.
Communication protocols: Modbus Serial, USB PowerSummary, HTTP, SNMP, and Telnet.
1:1, 3:1 input hard-wire options: Product can be wired for 3-PH or 1-PH input (230 V, 8 kVA, and 10 kVA models only).
Dual input: Enables second input source to be connected to UPS bypass (230 V, 8 kVA, and 10 kVA models only).
APC Warranties available for this UPS
APC Service Pack Warranty Extension (New Product Purchases)
APC Service Pack Warranty Extension (Renewal or High Volume)
Protection for your system, peace of mind for you - With the APC Extended Warranty program, you will have peace of mind knowing that in the unlikely event of a failure, your product will be repaired or replaced quickly, minimizing downtime.
Our warranty guarantees free next business day delivery of parts or unit to ensure you get what you need as soon as you need it.
Replacement Battery Options for this UPS
APC Replacement Battery Cartridge - FEAPCRBC141
This APC Replacement Battery Cartridge fits selected APC Smart-UPS and Back-UPS, restoring power back-up capacity for home offices, small businesses and IT departments.
This replacement battery cartridge (RBC) has a lifetime of three to five years, offers safe and reliable support to the UPS, and extends the useful life of your UPS. The APC RBC comes fully assembled and includes easy-to-follow replacement instructions, making hot-swap installation simple.
APC UPS External Battery Pack - FEBR24BPG
The APC Extended Run Battery Pack is the ideal companion for the APC Back-UPS Pro UPS (uninterruptible power supply).
The battery pack increases the duration of time that you can protect your electronic devices from damage and disconnect due to unexpected blackouts, voltage fluctuations, and other power disruptions.
