APC Smart-UPS On-Line, 1000VA/1000W, Rackmount 2U, 230V, 6x C13 IEC outlets, Network Card, Extended runtime, W/ rail kit
This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 1000VA/1000W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 2U rackmount SRT has a preinstalled Network Management Card in the Smart Slot for UPS network-based monitoring and management.
PowerChute network shutdown provides graceful, unattended shutdown of critical IT equipment ranging from physical servers and virtual machines to HCI cluster. It comes with BS1363A British, IEC 60320 C20, and Schuko CEE 7/EU1-16P inputs, 6x IEC 320 C13/60320 C13 outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
Its dimensions are 505mm (depth) x 85mm (height) x 432mm (width) and weighs 21.00kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CE and EAC. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
1000VA/1000W double-conversion on-line pure sine wave 2U rackmount UPS
Ideal for mission critical servers, storage, networking, medical labs, light industrial applications
Rack/Tower convertible (rail kit included)
Delivers clean power with zero transfer time for critical or sensitive devices
Add up to 10 external battery packs (SRT48RMBP) for extended runtime
Replacement battery available
More real power in watts, 0.9 pf on 2.2 kVA – 5 kVA, Unity on 1-1.5 kVA unites and 6 kVA – 10 kVA units.
Achieves 98 percent efficiency, which saves utility and cooling costs without compromising performance or reliability.
Intuitive interface provides detailed and accurate information with ability to configure locally.
Temperature-compensated charging extends life and advanced algorithms recommend replacement date. The UPS can inform user which batteries need to be replaced and auto detect when additional battery packs are added.
Measures energy use and displays UPS efficiency in various modes of operation for easy energy tracking.
Ability to immediately protect equipment when power returns after a complete discharge of the battery
Additional year of warranty protection for electronics provides peace of mind.

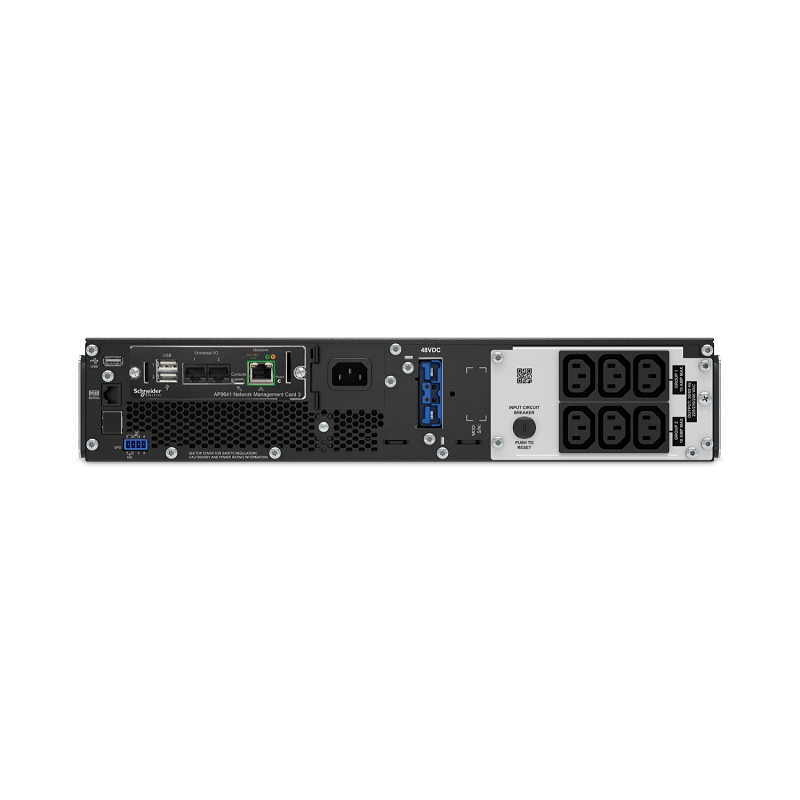

1. SmartSlot
The SmartSlot can be used to connect optional management accessories.
2. AC C14 input plug
Inlet for AC input power cord.
3. External battery power and communication connector
Use the external battery cable on the XLBP to connect the UPS and XLBP. XLBPs provide extended runtime during power outages. The UPS will automatically recognize up to 10 external battery packs.
4. Controllable outlet group 1
Connect electronic devices to these outlets.
5. Chassis ground screw
The UPS and XLBPs have ground screws for connecting the ground leads. Prior to connecting a ground lead, disconnect the UPS from mains power.
6. Controllable outlet group 2
Connect electronic devices to these outlets
7. EPO terminal
The Emergency Power Off (EPO) terminal allows the user to connect the UPS to a central EPO system.
9. Serial Com
The Serial Com port is used to communicate with the UPS. Use only interface kits supplied or approved by APC by Schneider Electric. Any other serial interface cable will be incompatible with the UPS connector.
10. USB port
The USB port is used to connect either a server for native operating system communications, or for software to communicate with the UPS.
Additional information can be found in the Brochure PDF file
Installation information can be found in the User Guide PDF file
