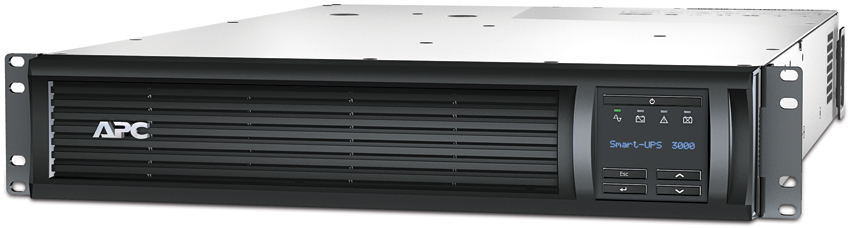

APC SMT3000RMI2UC Smart-UPS 3000VA LCD RM 2U 230V with SmartConnect

The APC SMT3000RMI2UC is a 3000VA/2700W line-interactive UPS in a 2U rackmount chassis, designed to protect servers, network switches, storage and point-of-sale hardware from power outages, surges, sags and brownouts. It delivers pure sine wave output, automatic voltage regulation and cloud-based status monitoring via the built-in SmartConnect port, making it suitable for remote sites and distributed edge deployment.

Key Features

The APC SmartConnect feature makes Connected Smart-UPS the first cloud enabled UPS for distributed IT.

Connected Smart-UPS routinely provides proactive UPS lifecycle recommendations, helping maximize the lifespan of your APC UPS.

• 3000VA / 2700W output capacity with pure sine wave output on battery
• Line-interactive topology with extended-range AVR (boost and trim)
• 2U rackmount chassis with included rails and rack hardware
• Nine total outlets: 8x IEC C13 and 1x IEC C19, plus 3x IEC jumper cables
• Built-in SmartConnect Ethernet port for cloud monitoring via secure web portal
• SmartSlot bay for adding SNMP, environmental or relay management cards
• Hot-swappable batteries and Emergency Power Off (EPO) input

Benefits

• SmartConnect cloud monitoring removes the need for additional management hardware on smaller deployments
• AVR corrects voltage fluctuations without drawing on the battery, extending battery life
• Pure sine wave output is compatible with active PFC power supplies used in modern servers and network equipment
• Hot-swappable batteries allow scheduled replacement without taking protected equipment offline

Product Comparison

• APC SMT2200RMI2UC - the step-down 2200VA/1980W model for racks with lower load, with the same line-interactive topology and SmartConnect feature
• APC SRT3000RMXLI Smart-UPS Online - same 3000VA capacity but with double-conversion topology, for environments requiring zero transfer time and full input isolation
• Eaton 9PX3000IRT2U - an alternative 3000VA online UPS from a different vendor, typically chosen where IT teams are standardising on Eaton's Intelligent Power Manager

Sizing and Runtime

3000VA / 2700W maximum output in a 2U chassis that fits any standard 19-inch rack (rails included). Runtime is load-dependent. Indicative figures based on APC's published runtime curve:

• Approximately 50+ minutes at 25% load (~675W)
• Approximately 17 minutes at 50% load (~1350W) depending on load and battery condition
• Approximately 4-5 minutes at 100% load (2700W) depending on load and battery condition

Typical recharge time after a full discharge is around 3 hours. For an exact runtime figure, use APC's online runtime calculator against your specific connected load.

Who It's For

IT teams protecting on-premises server racks, branch office wiring closets, point-of-sale infrastructure, network cabinets and small data rooms where 2U of rack space is available.

FAQs

• What's the difference between VA and watts? VA is apparent power and watts is real power. This unit is rated 3000VA / 2700W; size your load against the watt figure for the most accurate match.
• Does it output a pure sine wave? Yes. Pure sine wave output ensures compatibility with active PFC power supplies common in modern servers and network gear.
• Are the batteries hot-swappable? Yes. Batteries can be replaced without powering down the connected load.
• What ships in the box? The UPS, rack mounting rails and hardware, USB cable, BS1363A British input cable, Schuko input cable, three IEC jumper cables and documentation.
• How long is the warranty? Three years repair or replace on the unit, with two years on the battery.

---

Secure, remote monitoring

Connected Smart-UPS support remote monitoring through our secure web portal, so you can always be up to date on the status of your power infrastructure.

Pro-active lifecycle alerts

Maximise the life span of your UPS, and protect your investment, with pro-active alerts for firmware upgrade, device maintenance and warranty protection.

Cloud enabled as standard

New Smart-UPS models are cloud enabled as standard, with an inbuilt ethernet port. We've made it as easy and cost effective as possible to monitor your UPS online.

---

The 2U rackmount 2700W 3000VA UPS is trusted to protect critical data and equipment from power problems, and supplies clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS units have extremely high efficiency at low, medium and high load levels, making them ideal for today’s multi-core or virtualized servers that have varying load consumption.

---

---

Product Features

1. Alphanumeric LCD (Liquid Crystal Display) - Intuitive interface provides detailed and accurate information with the ability to configure locally.
2. Communication Ports - Serial, USB, and SmartSlot™ for accessory cards.
3. 8 IEC320 C13 and 1 IEC320 C19 Outlets
4. Emergency Power Off (EPO) - Provides for remote UPS shut-off in the event of a fire or other emergency.
5. Push Button Circuit Breaker - Enables quick recovery from overloads.
6. Network-Grade Power - Provides stable power conditions by filtering noise, automatic voltage regulation (AVR), and surge protection.
7. High Efficiency Green Mode - Saves utility costs and reduces heat promoting longer component life.
8. Advanced Battery Management - Temperature-compensated charging extends life and advanced algorithms recommend replacement date.

---

Smart-UPS Display

Intuitive, easy-to-use LCD interface

LCD Display Screen - Clear, consistent, and detailed information in your choice of basic or advanced menus.

Power Status:

• Operating mode and efficiency
• Load VA/Watts/Amps
• Input/Output voltage and frequency
• Battery capacity and runtime
• Energy meter and more

Control - UPS and outlet group settings

Language

Power quality settings

Alarm, delay and threshold settings

Test and Diagnostics - Initiate battery and runtime calibration tests

Logs - See explanation of last 10 transfers and faults

About - UPS and replacement battery part numbers, serial numbers, battery install, and suggested replacement dates

Online Status Indicators - Online, on battery, fault, and replace battery LEDs for quick status identification.

Escape - Exits to the previous menu or screen.

Return - Used to enter or confirm settings.

Navigation Arrows - Allow for quick adjustment of settings.

---

APC Warranties available for this Product

APC Service Pack Warranty Extension
(New Product Purchases)

FEWBEXTWAR1YR-SP-04

Purchase 1 Year Warranty

FEWBEXTWAR3YR-SP-04

Purchase 3 Year Warranty

APC Service Pack Warranty Extension
(Renewal or High Volume)

FEWEXTWAR1YR-SP-04

Purchase 1 Year Warranty

FEWEXTWAR3YR-SP-04

Purchase 3 Year Warranty

Protection for your system, peace of mind for you - With the APC Extended Warranty program, you will have peace of mind knowing that in the unlikely event of a failure, your product will be repaired or replaced quickly, minimizing downtime.

Our warranty guarantees free next business day delivery of parts or unit to ensure you get what you need as soon as you need it.

---

Battery Options for this Product

APC Replacement Battery Cartridge - RBC43

This APC Replacement Battery Cartridge fits selected APC Smart-UPS and Back-UPS, restoring power back-up capacity for home offices, small businesses, and IT departments.

This replacement battery cartridge (RBC) has a lifetime of three to five years, offers safe and reliable support to the UPS, and extends the useful life of your UPS. The APC RBC comes fully assembled and includes easy-to-follow replacement instructions, making hot-swap installation simple.

Purchase Replacement Battery Cartridge

*This product is generally delivered next day but due to its weight and restrictions imposed on us by next day couriers, may take longer

---

This Product is Compatible with these Mounting Products

• APC 2-Post Mounting Kit for Smart-UPS and Symmetra - AP9625

---

This Product is Compatible with these Sensors

• APC Temperature Sensor - AP9335T
• APC Temperature & Humidity Sensor - AP9335TH
