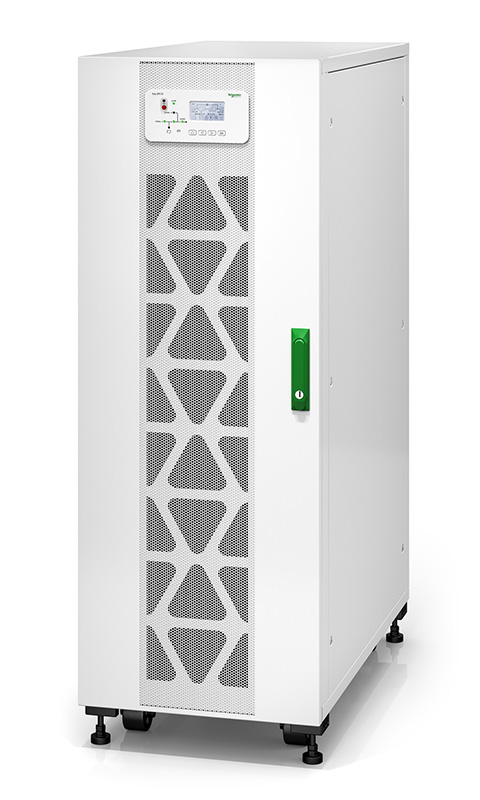

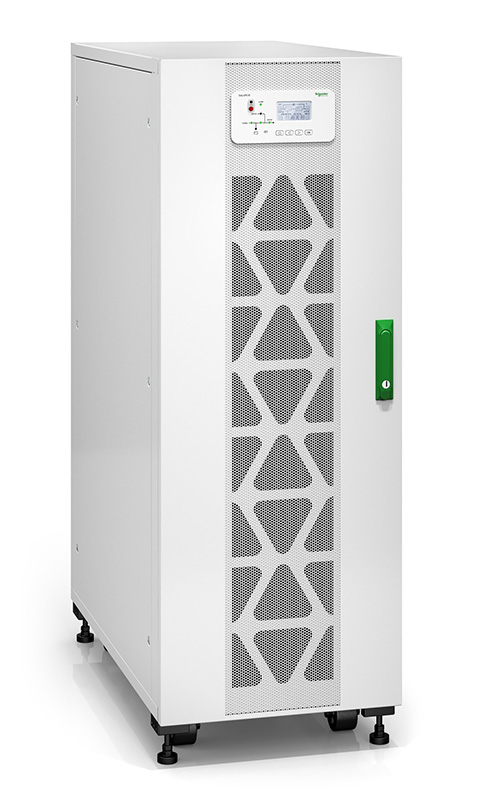

    APC E3SUPS30KHB1 Easy 3S 30 kVA 400V 3:3 2 Internal Battery String UPS
    7Ah Modular Battery Strings, Expandable to 4

    Business continuity made easy

    The Schneider Electric Easy UPS 3 Series is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 10-200 kVA 3 phase UPS ideal for small and medium businesses, data centers, and other mission critical applications.

    The Schneider Electric Easy UPS 3 Series brings predictability to utility costs by delivering up to 96 percent efficiency in double conversion mode and up to 99 percent efficiency in energy-saving ECO mode, thanks to its advanced product features, competitive specifications, and robust electrical design. It is exceptionally easy to install, connect, operate, maintain, and service, making it ideal for a wide range of small and medium business applications.

    This EcoStruxure™ Ready UPS features a wide operating temperature range and strong overload protection, all in a compact and lightweight footprint. Start-up service* optimizes your system's performance, quality, and safety. The Easy UPS 3 Series is the easy choice for your business continuity in the data center or electrical room.

    Features and Benefits

    • Rolls into position quickly and easily
    • Minimal footprint requirement with lightweight, compact form factor
    • Straightforward installation
    • Input, output, and bypass breakers are included
    • Emergency Power Off (EPO) switch is included
    • Easy Loop test verifies UPS performance before you connect your load, without the need for a load bank
    • Aesthetic design blends well into your installation environment
    • On-site start-up** with Schneider Electric Field Service Representatives
    **Included with Easy UPS 3M; recommended service option for Easy UPS 3S

    Technical Specification

    Normal AC Supply Input
    Input voltage (V) 380/400/415 V (Three-phase + Neutral)
    Frequency (Hz) 45 - 65 Hz
    Input power factor 0.99
    THDI <3% for 10 kVA UPS, <4% for 15-40 kVA UPS
    Input voltage range 304 V to 477 V at full load
    Dual mains input Yes (default: single mains input)
    Output
    Nominal output voltage (V) 3:1 - 220/230/240 V
    3:3 - 380/400/415 V
    Efficiency: Double conversion mode Up to 96%
    Efficiency: ECO mode Up to 99%
    Overload capacity in normal operation 130% for 10 minutes and 130-150% for one minute
    Output voltage tolerance +/-1%
    Communication and management
    Communication interface RS232, RS485, USB, dry contact, Modbus TCP/IP, optional network card
    Control panel Multi-function LCD, status and display console
    Weights and dimensions
    UPS for external batteries
    Dimensions (H x W x D mm)
    Unpackaged - 770 x 250 x 800 mm
    Shipping - 1015 x 400 x 982 mm
    UPS for internal batteries, without batteries
    Dimensions (H x W x D, mm)
    Unpackaged - 1400 x 500 x 969 mm
    Shipping - 1640 x 683 x 1114 mm
    UPS for external batteries
    Weight (kg)
    Unpackaged - 60 kg
    Shipping - 77 kg
    UPS for external batteries
    Weight (kg)
    Unpackaged - 152 kg
    Shipping - 190 kg
    Battery string
    (1 string/4 modules)
    Weight (kg)
    Unpackaged - 27 kg per module
    Shipping - 28 kg per module
    Regulatory
    Safety IEC/EN62040-1-1
    Performance IEC 62040-3
    EMC/EMI/RFI IEC 62040-2
    Environmental IEC 62040-4
    Markings CE.RCM, EAC, WEEE
    Battery type
    Battery type VRLA
    Nominal DC bus (100% load) +/-192 to +/-240
    Charging power in % of output power (selectable) 1-20%
    Environmental
    Operating temperature 0°C to 40°C
    Relative humidity 0 to 95% non-condensing
    Operating elevation 0 to 1,000 m at 100% load
    Audible noise at 1 m from unit 10-20 kVA: 60 dBA at 100% load; 30-40 kVA: 63 dBA at 100% load
    Protection class IP20
    Warranty One year with Schneider Electric-certified Field Service Representative or Certified Service Partner Start-up Service (sold separately)

    Business continuity made easy

    The Schneider Electric Easy UPS 3 Series is an easy-to-install, easy-to-connect, easy-to-use, and easy-to-service 10-200 kVA 3 phase UPS ideal for small and medium businesses, data centers, and other mission critical applications.

    The Schneider Electric Easy UPS 3 Series brings predictability to utility costs by delivering up to 96 percent efficiency in double conversion mode and up to 99 percent efficiency in energy-saving ECO mode, thanks to its advanced product features, competitive specifications, and robust electrical design. It is exceptionally easy to install, connect, operate, maintain, and service, making it ideal for a wide range of small and medium business applications.

    This EcoStruxure™ Ready UPS features a wide operating temperature range and strong overload protection, all in a compact and lightweight footprint. Start-up service* optimizes your system's performance, quality, and safety. The Easy UPS 3 Series is the easy choice for your business continuity in the data center or electrical room.

    Features and Benefits

    • Rolls into position quickly and easily
    • Minimal footprint requirement with lightweight, compact form factor
    • Straightforward installation
    • Input, output, and bypass breakers are included
    • Emergency Power Off (EPO) switch is included
    • Easy Loop test verifies UPS performance before you connect your load, without the need for a load bank
    • Aesthetic design blends well into your installation environment
    • On-site start-up** with Schneider Electric Field Service Representatives
    **Included with Easy UPS 3M; recommended service option for Easy UPS 3S

    Technical Specification

    Normal AC Supply Input
    Input voltage (V) 380/400/415 V (Three-phase + Neutral)
    Frequency (Hz) 45 - 65 Hz
    Input power factor 0.99
    THDI <3% for 10 kVA UPS, <4% for 15-40 kVA UPS
    Input voltage range 304 V to 477 V at full load
    Dual mains input Yes (default: single mains input)
    Output
    Nominal output voltage (V) 3:1 - 220/230/240 V
    3:3 - 380/400/415 V
    Efficiency: Double conversion mode Up to 96%
    Efficiency: ECO mode Up to 99%
    Overload capacity in normal operation 130% for 10 minutes and 130-150% for one minute
    Output voltage tolerance +/-1%
    Communication and management
    Communication interface RS232, RS485, USB, dry contact, Modbus TCP/IP, optional network card
    Control panel Multi-function LCD, status and display console
    Weights and dimensions
    UPS for external batteries
    Dimensions (H x W x D mm)
    Unpackaged - 770 x 250 x 800 mm
    Shipping - 1015 x 400 x 982 mm
    UPS for internal batteries, without batteries
    Dimensions (H x W x D, mm)
    Unpackaged - 1400 x 500 x 969 mm
    Shipping - 1640 x 683 x 1114 mm
    UPS for external batteries
    Weight (kg)
    Unpackaged - 60 kg
    Shipping - 77 kg
    UPS for external batteries
    Weight (kg)
    Unpackaged - 152 kg
    Shipping - 190 kg
    Battery string
    (1 string/4 modules)
    Weight (kg)
    Unpackaged - 27 kg per module
    Shipping - 28 kg per module
    Regulatory
    Safety IEC/EN62040-1-1
    Performance IEC 62040-3
    EMC/EMI/RFI IEC 62040-2
    Environmental IEC 62040-4
    Markings CE.RCM, EAC, WEEE
    Battery type
    Battery type VRLA
    Nominal DC bus (100% load) +/-192 to +/-240
    Charging power in % of output power (selectable) 1-20%
    Environmental
    Operating temperature 0°C to 40°C
    Relative humidity 0 to 95% non-condensing
    Operating elevation 0 to 1,000 m at 100% load
    Audible noise at 1 m from unit 10-20 kVA: 60 dBA at 100% load; 30-40 kVA: 63 dBA at 100% load
    Protection class IP20
    Warranty One year with Schneider Electric-certified Field Service Representative or Certified Service Partner Start-up Service (sold separately)
