IP Surveillance

Investing in a scalable end-to-end solution that integrates with your existing IP network just makes great business sense

Knowing that high quality, reliable security cameras keep a vigilant eye on your facility even when you are not there can provide you with tremendous peace of mind.

Video surveillance has shifted from low tech analogue security surveillance systems to high tech IP systems that can leverage the same business network used for email, network storage and enterprise software applications. IP Surveillance is also advantageous over analogue surveillance as there is a greater ROI (return on investment) achieved by centralising the management of the surveillance system and using standard networking protocols for more dynamic surveillance.

Leveraging its 30-year history as a networking expert, D-Link is at the forefront of the technology evolution that is changing the face of physical security. D-Link delivers a full line of IP cameras, network switches, video storage devices, and Video Management Software (VMS) technologies that help organisations deploy IP surveillance systems with the flexibility, scalability, performance, and compatibility expected from a best-of-breed security vendor.

If you still haven’t upgraded your analogue CCTV system to an IP Surveillance system, here are a few reasons to do so:

Camera Megapixel Resolution:

In general, IP cameras can capture higher quality images for better identification of print and facial features. Every D-Link system starts with reliable, full-featured cameras with onboard video processing, motion and tamper detection, high definition and multi-megapixel resolution, ICR (Integrated Camera Recorder) for recording in any light, and H.264/ MPEG-4/MJPEG compression. And because D-Link products are built to industry-standard (ONVIF compliant), you’ll enjoy seamless interoperability with a broad range of VMS platforms. View the best D-Link IP Surveillance Cameras.

Day/Night modes

IP Cameras are available with infrared lighting, very low light sensitivity or lenses with an automatic iris enabling detailed image capture even in darkened corridors, outside buildings, and parking areas.

Flexible Installation:

Power over Ethernet (PoE) IP Cameras can be installed with a single combined power and network cable connected to a PoE switch; allowing camera installation far away from standard power outlets.

Centralised Management:

Management of all components of an IP Surveillance system can be centralised in a single location for multi-site installations.



Security cameras that safeguard businesses

D-Link are unique in providing a complete IP Surveillance solution, including a complete range of cameras, network video recorders, and network infrastructure – for round-the-clock security and monitoring, whether for a small shop or large industrial corporations with multiple sites.

Superior optics

D-Link lenses use high-quality glass for superior images. Details like number plates can be captured in Full HD clarity even at maximum zoom. D-Link security cameras are designed to make business operations easier, give you peace of mind, and keep you in the know with instant alerts for emergencies.
Wireless router and  server - sub image



Know your role

Bullet Cameras

Bullet cameras - thumb image
Bullet cameras are a permanently sealed weatherproof enclosure that can be used indoors or outdoors without the need for additional hardware (a wall mount is included).
Although the lens cannot be replaced, bullet cameras are often used because of their all-in-one design and attractive pricing. D-Link bullet cameras are available in HD resolution, offer day/night functionality and integrated infrared illumination.

Dome Cameras

Dome cameras - thumb image
D-Link dome cameras offer an aesthetic design wherein the camera, lens and cabling are hidden and protected inside of a domed enclosure. Available in both indoor and outdoor models, D-Link dome cameras offer an attractive protected camera for indoor applications and a rugged vandal and weather-resistant design for outdoor applications.

Cube Cameras

Cube cameras - thumb image
Designed for use in small businesses and residential applications, D-Link cube cameras are an attractive entry-level surveillance camera solution. Offering HD resolution, the ability to see in complete darkness and two-way audio with a built-in microphone and speaker, D-Link professional cube cameras are high-end cameras in small easy-to-install packages.

The Switches behind the surveillance

Switches with Surveillance GUI. D-Link’s ONVIF compliant switches include a redesigned surveillance interface making surveillance features more accessible than ever before. The choice between Standard and Surveillance modes can be made during switch set up.

Switches are at the heart of the modern network and, as a market leader, D-Link has an extensive range of products to offer. Everything from plug and play entry-level products through Web-managed Smart switches to fully-managed enterprise solutions. All built to deliver the ideal platform on which to build a robust and scalable IP Surveillance system.

PoE (Power over Ethernet) support simplifies D-Link camera installation, while breakthrough Auto Surveillance VLAN technology automatically prioritises surveillance traffic above ordinary data traffic.

Close integration with D-Link wireless access points and our unified Wired/Wireless Access Switching system also help locate cameras where cabling cannot reach, while still delivering the same robust and secure connectivity as on wired LANs.

Naturally, D-Link has network management and security products too, plus network storage solutions to provide a total solution from the core of your network to its edge, for IP Surveillance and a lot more besides.

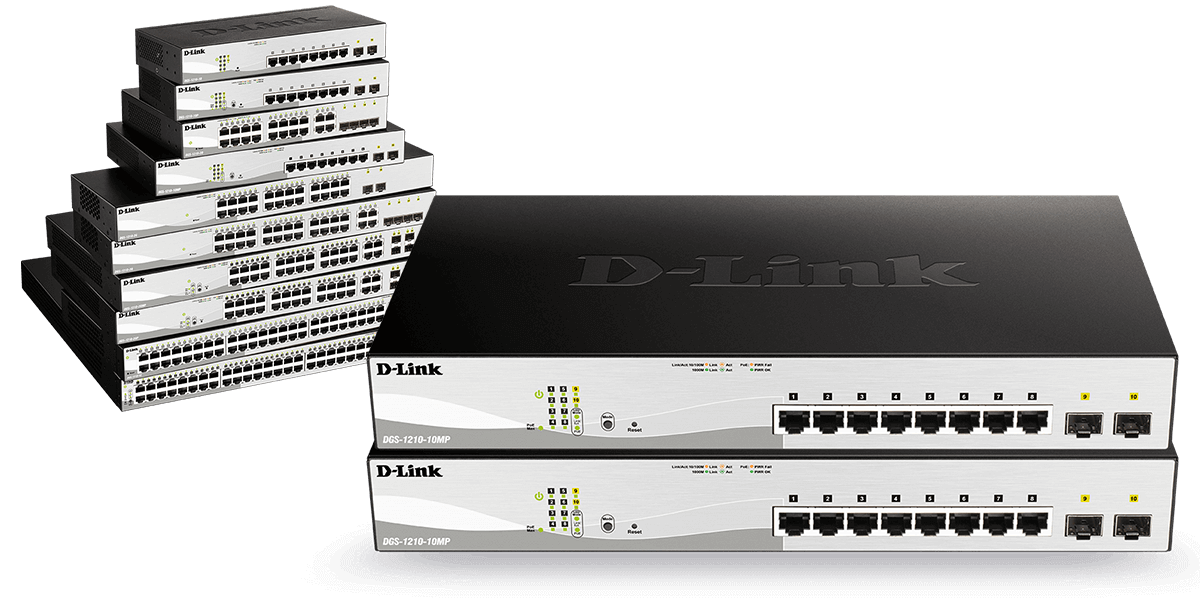

D-Link DGS-1210 Series
Smart+ Managed Gigabit Switches

D-Link DGS-1210 Series Gigabit Smart + Managed Switches

Smart+ Managed Gigabit Switches

Smart Managed with a Plus
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D-Link’s DGS-1210 Smart+ Managed Gigabit Switches provide a cost-efficient and flexible solution for expanding any business network.

The DGS-1210 Series Gigabit Smart Switches with Fibre Uplinks is the latest generation of D-Link Smart Switches featuring high port density and optional PoE support. With D-Link Green 3.0 technology, the series offers a high level of energy saving and efficiency, as well as compliance with IEEE 802.3az Energy Efficient Ethernet standard.

Features:

  • Compact CLI via Telnet: Supports a compact Command-Line Interface for system management.
  • Static Routing: Route Layer 3 traffic between switches, even if they’re segmented in VLANs.
  • Fibre Uplink Ports: Connect to other areas of your network at fibre-optic Gigabit speeds, and reach even further distances.
  • Dual Software Images, Dual Config Files: Risk-free firmware upgrades and configuration testing.
  • Surveillance Mode Interface: D-Link’s exclusive, easy-to-use Surveillance Mode interface gives you a snapshot of your security topology in an instant.
  • Limited Lifetime Warranty: Register and enjoy Limited Lifetime Warranty support from one of the global leaders in the industry.

Buy D-Link DGS-1210 Series Smart Switches

Storage

An IP Surveillance system will generate large amounts of data which can be stored on our range of D-Link network storage appliances. Intelligently designed and affordable, storage appliances are easily teamed with D-Link IP cameras and connected via D-Link network switches to provide robust, scalable and secure storage for all your IP surveillance and data sharing needs.

Simple Network Attached Storage boxes make for quick and easy deployment on small business networks, while highly scalable iSCSI SAN solutions are available for datacentre deployment. Unified storage appliances, offering simultaneous NAS and iSCSI support, are another option, similarly, with easy integration into the network using D-Link wired and wireless switches.

D-Link even has Network Video Recorders. These self-contained IP Surveillance appliances ship with camera monitoring and recording software pre-installed as well as built-in storage for recordings. Whatever your needs – surveillance and more – D-Link have a storage solution to fit.

D-Link DNR-4020-16P
JustConnect 16-Channel PoE Video Recorder

D-Link DNR-4020-16P JustConnect 16Channel PoE Video Recorder

IP Surveillance in a box

All-in-one solution that allows businesses to connect and power up to 16 cameras, and simultaneously record and view real-time video streams from a local network or remotely over the Internet
All-In-One Solution Standalone NVR solution with no need for additional computer or software 16-Channels Simultaneously record and view real-time video streams from up to 16 cameras PoE Capable 16 x 802.3af PoE ports with a total PoE power budget of 120 W High Efficiency Video Coding Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements Dual Bay SATA Up to 16 TB storage with 2 x SATA 3.5″ HDD interface, each supporting up to 8 TB capacity User-Friendly Interface Provides 16 channels of simultaneous live view, recording, playback, and PTZ control JustConnect+ App Mobile app allows easy and remote access on a mobile device Automated Surveillance.

Automated Surveillance

The DNR-4020-16P supports multiple recording modes including continuous, scheduled and event-based recording. Motion detection or sensors, such as on a door or window, connected to the Alarm In ports can automatically initiate event-based video recording.

User-defined scheduled recording and continuous recording will automatically overwrite the oldest footage to ensure the surveillance system continues to record the most up-to-date footage.

Features:

  • All-In-One Solution: Standalone NVR solution with no need for additional computer or software
  • 16-Channels: Simultaneously record and view real-time video streams from up to 16 cameras
  • PoE Capable: 16 x 802.3af PoE ports with a total PoE power budget of 120 W
  • High Efficiency Video Coding: Support for the latest H.265 standard to significantly reduce bandwidth and storage requirements
  • Dual Bay SATA: Up to 16 TB storage with 2 x SATA 3.5” HDD interface, each supporting up to 8 TB capacity
  • User-Friendly Interface: Provides 16 channels of simultaneous live view, recording, playback, and PTZ control
  • JustConnect+ App: Mobile app allows easy and remote access on a mobile device
  • 2-Year D-Link Warranty: You’re protected by one of the global leaders in the industry

Buy D-Link DNR-4020-16P NVR



Free Surveillance Management Software

D-Link Network Cameras include the DCS-100 D-ViewCam Video Management Software – a free comprehensive surveillance system that lets you centrally manage up to 32 network cameras, while displaying real-time information.
Wireless router and  server - sub image

The Map Mode allows you to create maps based on camera location and orientation, and the Device Tree lists all the connected cameras for easy viewing. Lastly, support for the latest H.265 compression format provides the best quality and performance for critical applications.

Download the datasheet from D-Link
