WDR - What is Wide Dynamic Range?

Q: Is WDR the same as HDR?

No. While both balance light, HDR is for vibrant color in consumer electronics, whereas WDR is a security-grade technology designed for clarity and identification in high-contrast environments.

Q: Do all cameras have WDR?

No. Many budget cameras use Digital WDR (DWDR), which is software-processed. Professional models feature True WDR, which uses hardware sensors to capture multiple exposures for superior image quality.

Q: Can WDR work in complete darkness?

No. WDR requires light to function. In total darkness, security cameras rely on Infrared (IR) LEDs or low-light sensors rather than WDR to see objects.

Q: Does WDR affect video recording?

Yes, it can sometimes lower frame rates or increase processing load since the camera handles multiple exposures per frame. However, the trade-off is much higher detail in difficult lighting.

Q: Should I choose WDR for a security camera?

Absolutely. WDR is essential for any camera location where light levels vary significantly, such as near windows, entrances, or outdoor areas with harsh shadows.

Introduction to Wide Dynamic Range

Have you ever tried taking a photo indoors with a bright window behind your subject, only to end up with either a pitch-black person or a completely white window? That’s exactly the kind of problem Wide Dynamic Range (WDR) technology is designed to solve. WDR helps cameras capture clear images in tricky lighting situations where bright and dark areas exist in the same frame. It balances the light, ensuring that both highlights and shadows are visible.

What Does Dynamic Range Mean?

Dynamic range refers to the span between the darkest and brightest parts of an image that a camera (or the human eye) can capture. A limited dynamic range means losing details either in shadows or highlights. For example, a regular camera might show a person standing in front of sunlight as just a silhouette. WDR extends this capability, making sure both the subject and background appear correctly lit.

How Does WDR Work?

WDR works by combining multiple techniques to balance lighting:

Multiple Exposures – The camera captures more than one image at different exposure levels (bright and dark) and merges them into one balanced photo.
Tone Mapping – The brightness is adjusted across the image to prevent extreme darks or whites.
Sensor Adjustments – Modern cameras can tweak sensitivity in different parts of the frame, brightening dark areas while toning down overly bright spots.

The result? A clear, natural-looking image where both shadows and highlights retain detail.

Types of WDR

Not all WDR is created equal. Here are the main types you’ll find:

Digital WDR (DWDR): A software-based method that adjusts brightness and contrast digitally. It’s cheaper but less accurate.
True WDR: Uses hardware and multiple exposures to capture real details from both light and dark areas. More expensive, but delivers far better results.
HDR vs WDR: High Dynamic Range (HDR) is similar but focuses more on vivid colours and contrast, often used in TVs and smartphones. WDR, on the other hand, is more practical and focused on clarity—especially in security and surveillance.

Where is WDR Used?

WDR has many real-world applications, including:

Security Cameras: Essential in places like shops, banks, parking lots, and lobbies where lighting changes drastically. WDR ensures faces, license plates, and details aren’t lost.
Photography & Videography: Helps photographers shoot against sunlight or bright backgrounds without losing detail.
Automotive Cameras: Dash cams and rear-view cameras rely on WDR to capture clear footage during day and night driving.
Smartphones: Most modern phones use a form of WDR (or HDR) to improve photos in tough lighting.

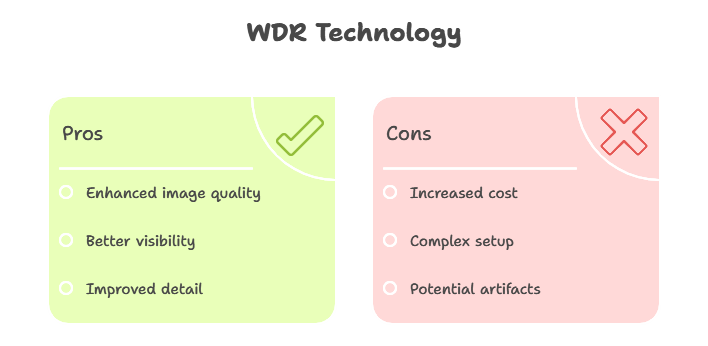

Benefits of WDR

Using WDR-enabled cameras brings several advantages:

Clearer images in mixed lighting (both indoors and outdoors).
Better facial and object recognition in surveillance footage.
Reduced glare and shadow loss in photos and videos.
Improved safety in vehicles and public places thanks to clearer monitoring.

Limitations of WDR

While powerful, WDR isn’t perfect:

It can require more processing power and storage.
Sometimes fast-moving objects appear blurred when multiple exposures are combined.
True WDR cameras tend to cost more than standard ones.

Conclusion – Buy IP Cameras (CCTV), IP CCTV, and PoE Devices at Comms Express

Wide Dynamic Range (WDR) is a game-changing technology in the world of imaging. By balancing light and dark areas, it ensures that no detail gets lost – even in the toughest lighting conditions. Whether it’s a security camera protecting a store, a dash cam recording the road, or your smartphone capturing a sunset selfie, WDR makes sure the picture is as clear as possible.

FAQs

Q1: Is WDR the same as HDR?
No. HDR is designed for vivid, colourful images in TVs and smartphones, while WDR focuses on clarity in real-life situations, especially in security.

Q2: Do all cameras have WDR?
No. Many budget cameras only offer limited or digital WDR. High-end models often have true WDR.

Q3: Can WDR work in complete darkness?
No. WDR needs some light to work. In complete darkness, cameras rely on infrared (IR) instead.

Q4: Does WDR affect video recording?
Yes. It can sometimes lower frame rates slightly due to processing multiple exposures.

Q5: Should I choose WDR for a security camera?
Absolutely—especially if your camera faces bright windows, doors, or outdoor lighting changes.
