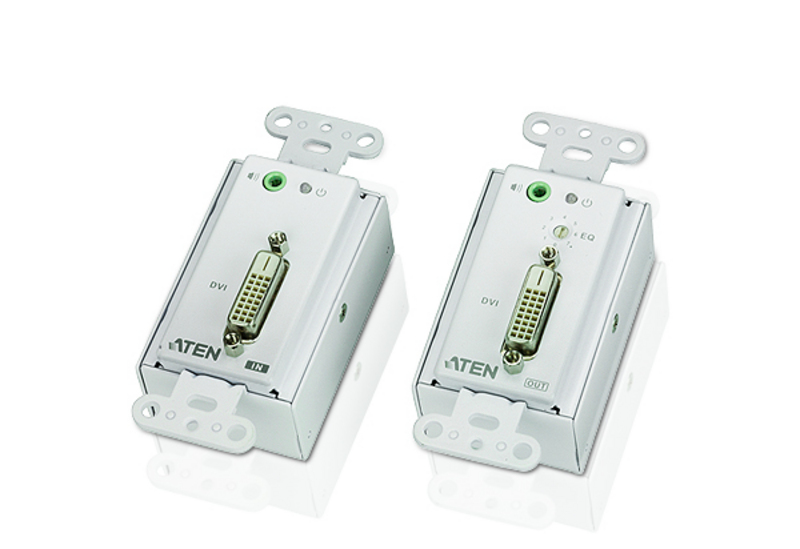

Aten VE606 DVI /Audio Cat 5 Extender Wall Plate

Overview

The VE606 DVI Over Cat 5 Extender Wall Plate extends DVI and audio signals up to 60m using Cat 5e cable. It supports popular wide screen formats and ensures excellent video quality over long distance transmissions. The VE606 combination can further extend the distance or multiply sources/displays.

The VE606 can be powered at either the Transmitter or Receiver side, and uses a second Cat 5e cable to transmit the power signal. The VE606’s compact wall plate design does away with bulky cables and allows a neat and convenient installation. It is an ideal solution for function rooms, museums and any environment that requires equipment or cabling to be kept hidden from public view.

Package Contents

• 1x VE606T DVI Over Cat 5 Extender Wall Plate
• 1x VE606R DVI Over Cat 5 Extender Wall Plate
• 1x Terminal Block Connector
• 1x Power Adapter
• 1x User Instructions

Features

• Uses two Cat 5e cables to connect the local and remote units – one to transmit video and audio; and another for power*
• Remotely powered from either the Transmitter or Receiver side**
• Extends the distance between DVI source and DVI display
• Superior video quality – up to 1920 x 1200@40m; 1280 x 1024@60m
• 8 segment equalization adjustment switch optimizes display quality
• Supports wide screen formats
• Supports hot-plugging
• Decora type design is easily configurable to fit various wall plates
• LED indication of power sources / connection status
• Supports stereo audio
• Built-in 8KV/15KV ESD protection
• Easy installation
• Wall mountable type for a neat and cleaner installation
• Plug-and-play – no software installation required
