Ubiquiti UVC-AI-Theta-Pro UniFi Camera

The Ubiquiti AI Theta Pro UniFi Protect 4K UHD PoE Mini IP Camera System is a complete ceiling 360-degree AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.

A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.

Features

• A complete ceiling 360° AI Theta system designed to discreetly provide a panoramic view of large, busy spaces.

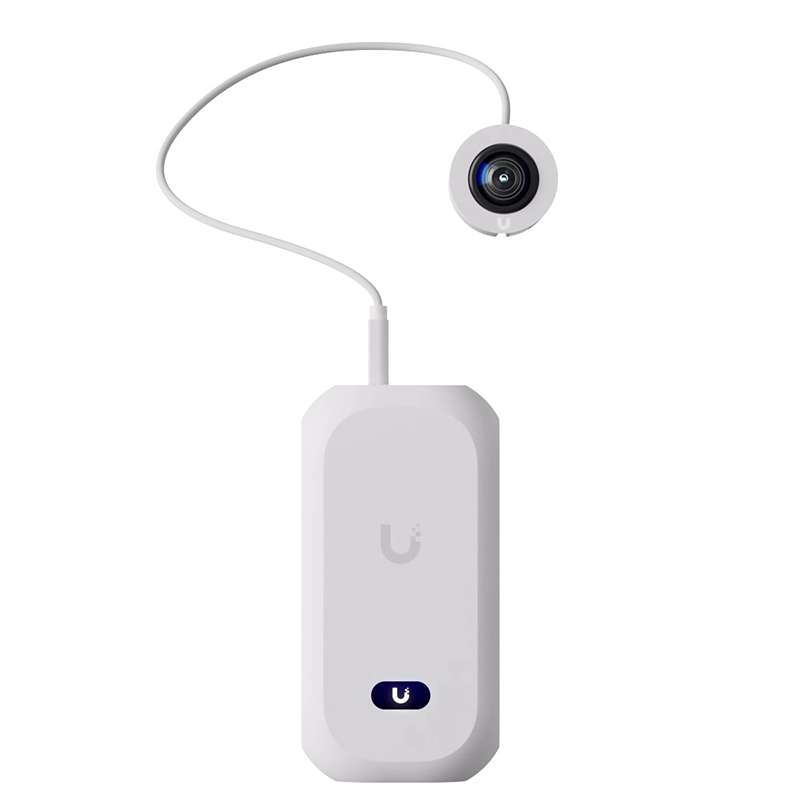

• Kit includes (1) AI Theta Hub, (1) Pro 360 Lens, (1) Standard Flush Mount, and (1) Pro Flush Mount
• 4K (8MP) resolution with ultra-wide 360° view
• Exceptional image quality with superb low-light performance and enhanced dynamic range
• Advanced AI: Detect people, read license plates, and more*
• Minimal footprint with lens separated from the camera body

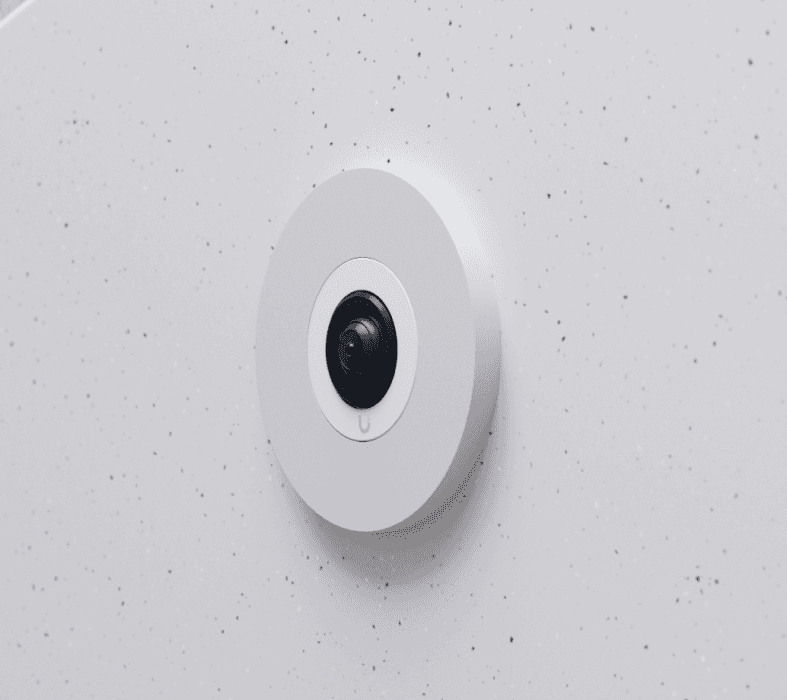

• Included Pro Flush Mount allows for mounting lens without access to the rear of a ceiling or wall
• PoE-powered hub that connects to lens with included cable
• Supports optional AI Theta Audio module for two-way audio

Specifications

Mechanical

• Material: UVC-AI-Theta-Hub: aluminum alloy, UVC-AI-Theta-ProLens360: aluminum alloy, polycarbonate
• Mount Material: UVC-AI-Theta-Hub: aluminum alloy, UVC-AI-Theta-ProLens360 Flush Mount: polycarbonate

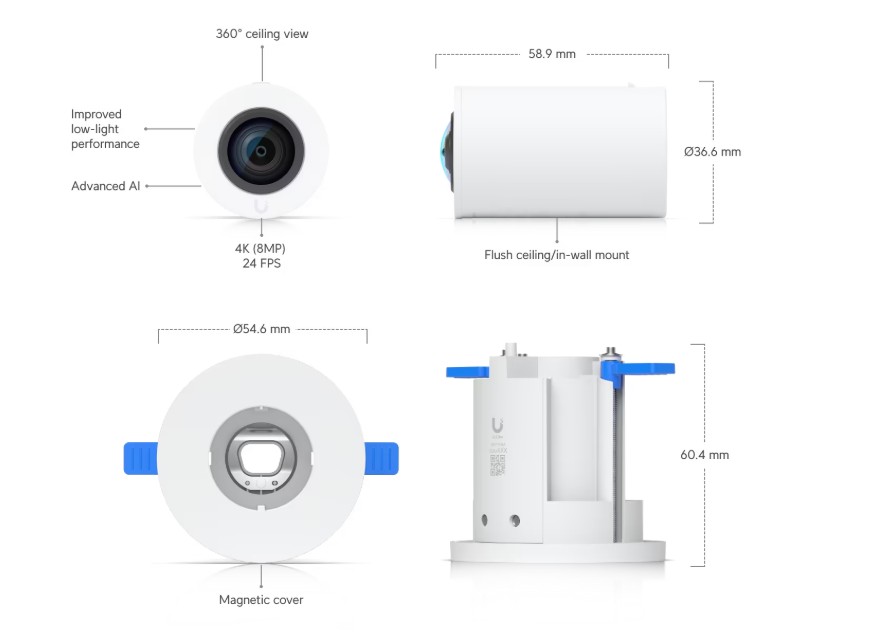

• Dimensions:

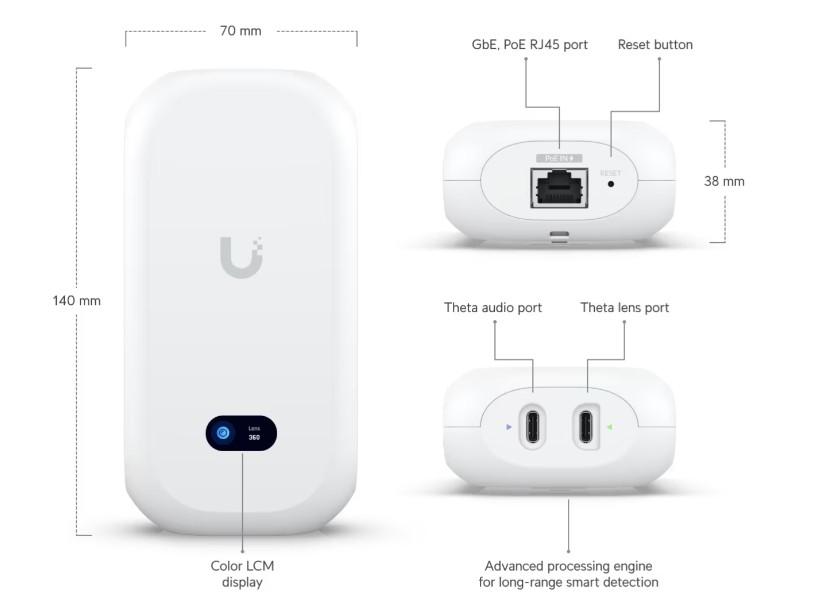

  • UVC-AI-Theta-Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”)
  • UVC-AI-Theta-ProLens360: Ø36.6 x 58.9 mm (Ø1.4 x 2.3”)
  • UVC-AI-Theta-ProLens360 Flush Mount: Ø54.6 x 60.4 mm (Ø2.2 x 2.4”)
  • Cable length: 1 m (3.3 ft)
• Weight:
• UVC-AI-Theta-Hub: 330 g (11.6 oz)
• UVC-AI-Theta-Hub Mount: 35 g (1.2 oz)
• UVC-AI-Theta-ProLens360: 58 g (2 oz)
• UVC-AI-Theta-ProLens360 Flush Mount: 24 g (0.8 oz)

Optic

• Sensor: 8MP 1/1.8" CMOS
• Lens: Fixed focal length
• View Angle: H: 180°, V: 180°, D: 180°

Video and Audio

• Video compression: H.264
• Resolution: 4MP 2160 x 2160 (1:1)
• Max. frame rate: 24 FPS
• Image settings: Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
• Microphone: No
• Speaker: No

System

• Processor: Quad-core Arm® Cortex®-A53 based chip
• Networking interface: GbE RJ45 port
• Max. power consumption: 12.5W
• Power Supply: 5V DC, 0.5A
• Power method: PoE
• Supported voltage range: 37—57V DC
• Output power: 5V DC, 1A per port

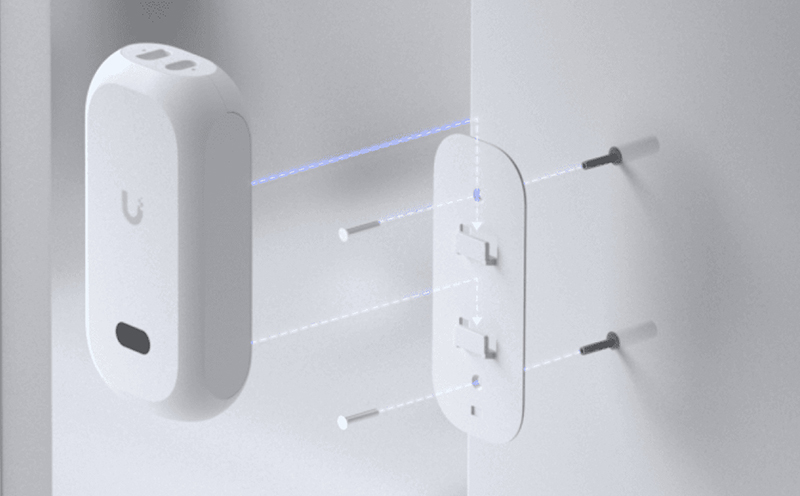

• Mounting: Wall, ceiling mount
• Ambient operating temperature: -20 to 40° C (-4 to 104° F)
• Ambient operating humidity: 10 to 90% noncondensing
