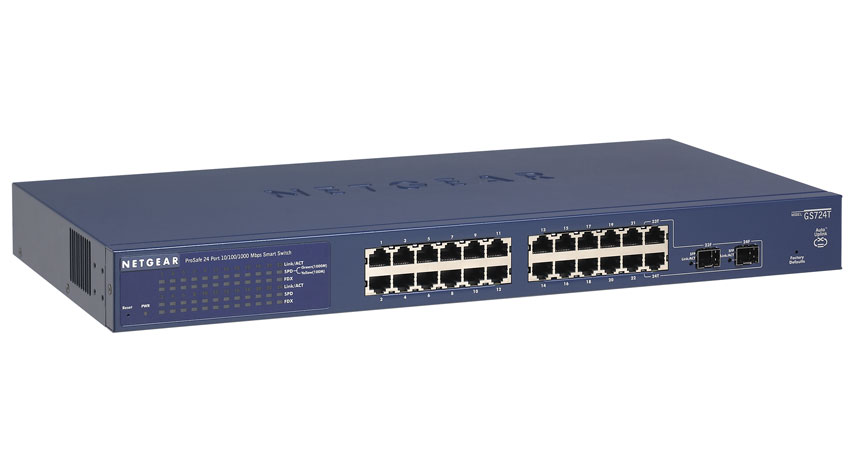

Netgear GS724T

The GS716T and GS724T Smart Gigabit switches are ideal for growing business networks who wish to benefit from network management without the cost and complexity of a managed network.

KEY FEATURES

• Smart Switches with basic management at unmanaged switch prices
• Delivers large files, including images & video in no time at all
• 2 Optional fibre ports available for fast, secure backbone connections
• Auto-sensing ports automatically sense the speed & duplex connection mode
• Auto Uplink™ technology automatically adjusts for different types of Ethernet cable
• Simple to set-up & use, via an intuitive web-browser interface
• Made to last; housed in 17-inch metal boxes,& with rack mount kit included

Gigabit & Fiber Connectivity

The GS716T and GS724T switches are standards based for easy integration of Ethernet (10 Mbps), Fast Ethernet (10/100 Mbps) and Gigabit (10/100/1000 Mpbs) devices. These unmanaged, rackmountable network switches feature 16 or 24 Gigabit Ethernet ports, each capable of powering 2000 Mbps of data throughput in full duplex mode. The GS716T and GS724T also feature two hot-swappable Small Form-factor Pluggable (SFP) GBIC Slots for optional SFP Modules to provide private bandwidth for PCs, servers, hubs, or a secure, long-distance uplink connection. All 16 or 24 ports provide automatic speed and duplex sensing, plus Auto Uplink™ technology to adjust for straight-through or crossover cables and make the right connection.

Smart Management

NETGEAR's GS716T and GS724T Smart Switches offer network management features for the price of an unmanaged switch. These network management features include: performance monitoring, port configuration, VLAN for traffic control, port trunking for increased bandwidth, and Class of Service (CoS) for traffic prioritisation.

Ease of Use

Shipped ready to use straight out of the box, the GS716T and GS724T deliver switching that's easy to set up and use via an intuitive Web-browser interface. LEDs located on the front panal make switch status easy to observe and troubleshooting easy to accomplish.

TECHNICAL SPECIFICATION

 Physical Connectivity:

• 16 or 24 10/100/1000 Mbps auto sensing Gigabit Ethernet switching ports (RJ-45)
• Option to utilise 2 ports as SFP slots for STP GBIC Modules

Status LEDs:

• Unit: Power
• Per port: Speed, Link, Activity
