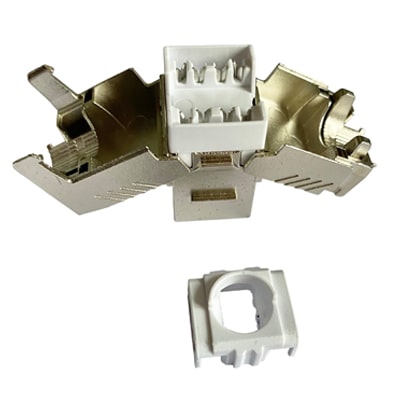

Molex PowerCat 6A Tool-less shielded Keystone Jack

Molex PowerCat 6A Tool-less Shielded Keystone Jack is designed for support of installations requiring Keystone Jack apertures specifically in work area applications. The jack is also compatible with Molex range of Keystone Jack Patch Panels.

The PowerCat 6A Shielded Keystone jack offers superior alien crosstalk suppression, excellent insertion loss, and provides enhanced electromagnetic interference (EMI) protection by utilizing robust die cast zinc alloy jack body housing. The shielded jack is dual colour coded for either 568A or 568B wiring schedules. The toolless design allows for on-site installation without the need for a termination tool.

The PowerCat 6A Shielded Keystone Jack was specifically designed for highspeed 10GB data transmission. The jack is also backwards compatible with Shielded C6 and C5e systems. Our PowerCat 6A shielded system is suitable for the most demanding PoE applications.

Features & Advantages

• 360° shielding for EMI protection
• Tool-less termination process
• Dual color coding allows 568A/B wiring
• Accommodates 23-26AWG conductors
• Protected front labeling feature for additional panel or port identification
• Straight cable entry (180°)
• Robust die-cast housing

Technical Information

Jack

• Grounding contacts: Stainless steel
• Housing: Zinc Die-Casting with nickel plating
• Contact bracket: Polycarbonate, UL94V-2
• Contact material: Phosphor bronze with nickel plating
• Contact gold plating: 50 micro-inch gold plating on surface of plug contact area
• Wire management cap (IDC-Cap): Polycarbonate, UL94V-2
• Operating Life: ? 750 cycles
• Mating/Un-mating force: ? 30N
• Retention strength: 7.7 kg between jack and plug
• Installation temperature: 0°C to 50°C (32°F to 122°F)
• Storage temperature: -40°C to 70°C (-40°F to 158°F)
• Operating temperature: -10°C to 60°C (14°F to 140°F)

IDC

• Housing: Polycarbonate, UL94V-2
• Terminals: Phosphor bronze with tin plating
• Cable o.d. accommodation: 5.0 mm to 8.5 mm
• Operating Life: ? 20 cycles

Environmental Standards

• RoHS compliant
• REACH compliant

Electrical

• Contact resistance: ? 20m?
• Insulation Resistance: > 500 M? at 100Vdc, for 60 sec.
• Voltage: Contact to contact 1000 Vdc
• Voltage rating: 150 V
