Excel Cat6a F/FTP Patch Leads

Excel Category 6a – Augmented Category 6 – cables, and associated connectors, take the performance capabilities of copper infrastructure to new levels. Designed to the current ISO and EIA/TIA standards for Class Ea augmented Category 6a performance these products are intended to deliver reliable, high network performance including support of emerging applications such as 10GBase-T, 10 Gigabit Ethernet.

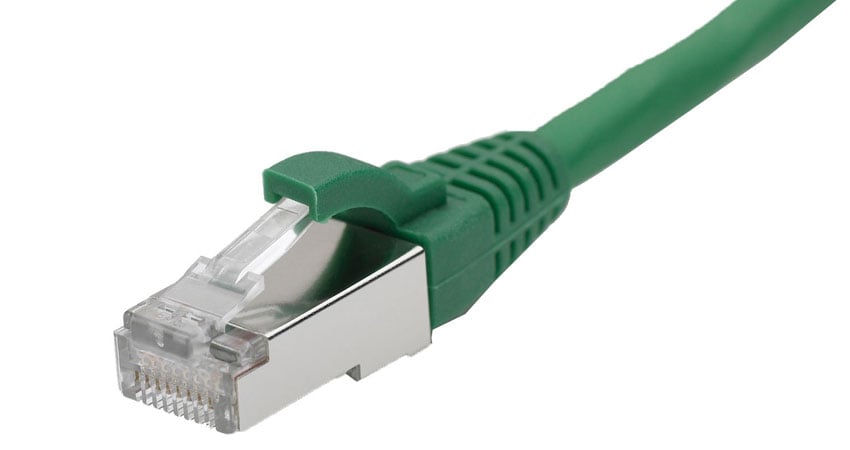

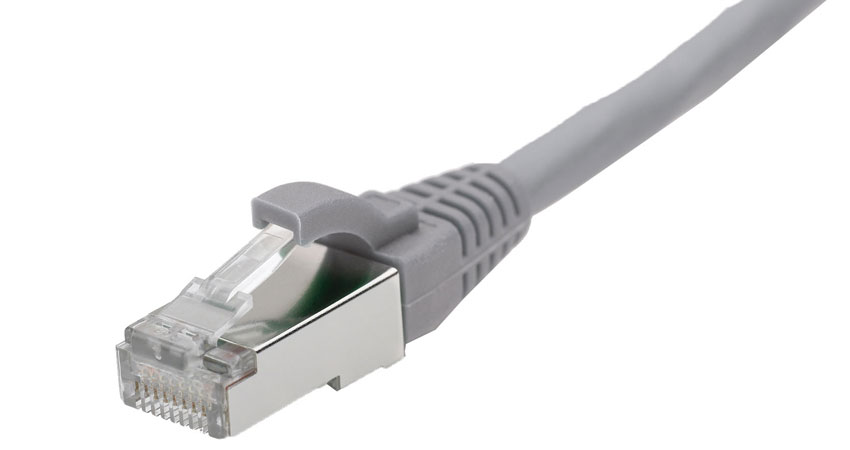

Each Excel Category 6a patch leads consists of 4 twisted pairs of 26AWG stranded copper wires, an aluminium/polyester foil tape provides an individual screen for each pair. These pairs are then cabled together, with different lay lengths to ensure optimum performance. Staggered pin RJ45 shielded plugs, terminate the cable, and each lead is fitted with colour coded slimline molded boots, suitable for use in high density router or switch blades.

Performance Overview
Excel Category 6A patch leads are designed, manufactured and tested in accordance with the ISO and TIA standards for Cat 6A. The use of foil tape screens in the design of this cable ensure that systems are immune to performance concerns sometimes found in high speed, high frequency copper cable networks. Cables designed with pair screening such as this act against Alien Crosstalk, the inducement of noise from one 4 pair cable to an adjoining cable as well as protecting against signal loss though emissions and enabling immunity from disturbance’s which could potentially be received from external sources.

Features:

• Specified to 500MHz
• Suitable for 10 Gigabit, 10GBase-T, Ethernet application
• Individual foil screen over each pair
• Blade style molded strain relief boot with clip protector
• Choice of Length and Colour
• Low Smoke Zero Halogen Outer Sheath
• 25 year system warranty
