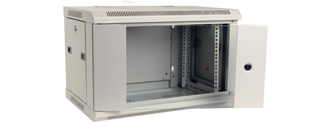

The new EC wall mount Data Cabinet from Cooper B-Line offers users a highly cost effective and versatile solution for wall mounted products such as cabling infrastructures, networking and telecom equipment.

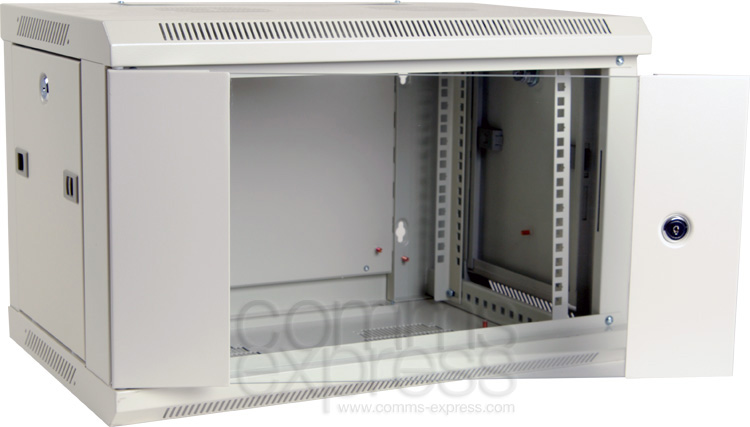

The Data Rack is supplied in the standard light grey with mid grey trims. Wall cabinet doors have a quick release two pin hinge mechanism and are supplied fully glazed with a standard lock. The door can also be easily changed from left to right-hand operation. The EC wall mounted box is also available with optional steel doors and rear panels made to order.
The 19" mounting rails on the EC wall box are adjustable front to rear and in common with the freestanding cabinet the wall box has "U" ident markings for ease of equipment location.
Cable entry in the EC Data Rack is gained through rear top and bottom slots with removable cover plates and cable management is further enhanced through suitable points for locating and securing cables.
The standard product consists of EC wall box frame with 2 pairs of 19" mounting angles, glass front door and 2 cable entry plates.
Benefits
Lockable, aesthetic glass door with quick release hinges for easy removal Fully adjustable 19" mounting angles front and rear Door can be hinged left or right handed Large apertures for cable entry
Accessories are available on the following pages:
Please Note: Casters are not compatible with wall mounted cabinets.
Colours Grey
Front Door Type/s Glass In Steel Surround,Lockable
Mounting Profile Width 19"
Cable Entry Bottom,Top
Construction Bolted,Welded
External Depth 390mm
Mounting Profiles Position/s Front & Rear,Front Only
Side Panels Lockable/Removable
Internal Working Depth 300mm
U Height 6u
External Height 368mm
External Width 600mm
