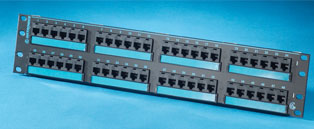

48 Port Clarity6 Patch Panel

Part No.:

OR-PHD66U48

Discontinued

This product is no longer available from Comms Express.

need assistance - call us on 0845 2000 256

Twitter/Facebook

Overview

Clarity⁶ 48-port high density patch panel is component compliant to EIA/TIA Category 6 performance requirements. It occupies two rack units, and measures 19" x 3.5". Jacks are grouped in six-port modules. Part of the Clarity⁶ link and channel solution that provides significant installed performance headroom

SPECIFICATIONS
Performance Rating	Category 6
Panel or Accessory Type	Mod 8/110
Mod Jack Wiring	Universal T568A/B
Wiring Scheme	T568 A/B
Number of Ports	48
Critical Size	2 rack units
Color	Black with blue print
Labeling & Identification	Yes
Width	19 in (482.6 mm)
Depth	1.25 in (31.75mm)
Height	3.5 in (88.9 mm)
Cable Diameter Range	22-26 AWG
UL Listing No.	E131600
UL Standard	UL 1863
CUL Listing No.	E131600
CUL Standard	UL 1863
FCC Standard	Part 68
ETL Listing No.	3013270-004
ETL Standard	TIA/EIA-568-B.2

LABELING OPTIONS
Part No. & Sheet Size	70400408, '8.5" x 11"
Label Size	3.74" x .392"
No. Labels/Sheet	26
No. Sheets/Bag	10
Brady Part No.	LAT-43-7070.375 x 2.87 Label
Acceptable printers	Laser sheet fed

CONSTRUCTION
	Material	Finish/Plating
Panel	.094" Aluminum	Painted black texture with blue silkscreen
Six-port jack housing	High impact thermoplastic UL 94V-0
Six-port rear IDC housing	Polycarbonate
Array of eight modular dual reactance Category 6 contacts	Beryllium Copper	Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
IDC contacts (low noise)	Phosphor Bronze	Nickel plating with tin over plate
Printed circuit board	Two-sided FR.4 epoxy resin/glass base with solder mask
Front bezel/rear designation housing	ABS UL94V-0
Rear wire management bar	0.32" x 0.125" Cold rolled steel, round edge flat wire	Painted black - no texture

FEATURES

BENEFITS

ETL verified to TIA Category 6 component spec

Ensures component performance

Center tuned to Clarity⁶ patch cords

More transparent mated union

Universally wired 110 termination

Supports T568A and T568B installs

New IDC housing

Handles larger Category 6 conductors

Supplied rear cable management

Supports good cabling practice

High density design

Maximizes rack utilization

RoHS compliant

Lead free

SPECIFICATIONS
Performance Rating	Category 6
Panel or Accessory Type	Mod 8/110
Mod Jack Wiring	Universal T568A/B
Wiring Scheme	T568 A/B
Number of Ports	48
Critical Size	2 rack units
Color	Black with blue print
Labeling & Identification	Yes
Width	19 in (482.6 mm)
Depth	1.25 in (31.75mm)
Height	3.5 in (88.9 mm)
Cable Diameter Range	22-26 AWG
UL Listing No.	E131600
UL Standard	UL 1863
CUL Listing No.	E131600
CUL Standard	UL 1863
FCC Standard	Part 68
ETL Listing No.	3013270-004
ETL Standard	TIA/EIA-568-B.2

SPECIFICATIONS
Performance Rating	Category 6
Panel or Accessory Type	Mod 8/110
Mod Jack Wiring	Universal T568A/B
Wiring Scheme	T568 A/B
Number of Ports	48
Critical Size	2 rack units
Color	Black with blue print
Labeling & Identification	Yes
Width	19 in (482.6 mm)
Depth	1.25 in (31.75mm)
Height	3.5 in (88.9 mm)
Cable Diameter Range	22-26 AWG
UL Listing No.	E131600
UL Standard	UL 1863
CUL Listing No.	E131600
CUL Standard	UL 1863
FCC Standard	Part 68
ETL Listing No.	3013270-004
ETL Standard	TIA/EIA-568-B.2

CONSTRUCTION
	Material	Finish/Plating
Panel	.094" Aluminum	Painted black texture with blue silkscreen
Six-port jack housing	High impact thermoplastic UL 94V-0
Six-port rear IDC housing	Polycarbonate
Array of eight modular dual reactance Category 6 contacts	Beryllium Copper	Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
IDC contacts (low noise)	Phosphor Bronze	Nickel plating with tin over plate
Printed circuit board	Two-sided FR.4 epoxy resin/glass base with solder mask
Front bezel/rear designation housing	ABS UL94V-0
Rear wire management bar	0.32" x 0.125" Cold rolled steel, round edge flat wire	Painted black - no texture
