End of Life Product

£123.22

£147.86 Inc VAT

123

Earn 123 Data Points when purchasing this product. More Info

Sorry, this item is no longer available from Comms Express.

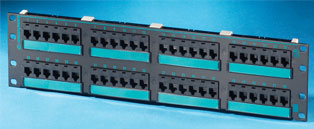

48 Port Clarity5e Patch Panel

See more product details

Part No:	OR-PHD5E6U48
Delivery:	End of Life Product

Looking to save even more money?

Submit a quote request today and we may be able to save you money

More Related Items

Prism PI 18u 600mm Wide x 800mm Deep Data Cabinet

Click to change options

Colour:

Apply

£418.75 Ex VAT

Qty:

Datacel 12u 500mm Deep Data Cabinet/Rack

Click to change options

Colour:

Apply

£124.00 Ex VAT

Qty:

9U Wall Mounted Data Cabinet Data Rack 390mm Deep

Click to change options

Colour:

Apply

£125.00 Ex VAT

Qty:

Fluke Networks CableIQ Qualification Tester

£1941.00 Ex VAT

Qty:

Email product to a friend

Your Name:

Your Email:

Recipient Email:

Message:

Scroll to top

Clarity5E 48-Port High Density Patch Panel is component compliant to EIA/TIA Category 5e performance requirements. It occupies two rack units and measures 19" x 3.5". Jacks are grouped in six-port modules. Part of the Clarity5E link and channel solution that provides significant installed performance headroom

SPECIFICATIONS
Performance Rating	Category 5e
Panel or Accessory Type	Mod 8/110
Mod Jack Wiring	Universal T568A/B
Wiring Scheme	T568 A/B
Number of Ports	48
Critical Size	2 rack units
Color	Black with green print
Width	19 in (482.6 mm)
Depth	.125 in (3.175 mm)
Height	3.5 in (88.9 mm)
Cable Diameter Range	22-26 AWG
UL Listing No.	E131600
UL Standard	UL 1863
CUL Listing No.	E131600
CUL Standard	UL 1863
FCC Standard	Part 68
ETL Listing No.	3013270-004
ETL Standard	TIA/EIA-568-B.2

LABELING OPTIONS
Part No. & Sheet Size	70400408, '8.5" x 11"
Label Size	3.74" x .392"
No. Labels/Sheet	26
No. Sheets/Bag	10
Brady Part No.	LAT-43-7070.375 x 2.87 Label
Acceptable printers	Laser sheet fed

CONSTRUCTION
	Material	Finish/Plating
Panel	.094" Aluminum	Painted black texture with green silkscreen
Six-port jack housing	High impact thermoplastic UL 94V-0
Six-port rear IDC housing	Polycarbonate
Array of eight modular dual reactance contacts	Beryllium copper	Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
IDC contacts (low noise)	Phosphor Bronze	Nickel plating with tin over plate
Printed circuit board	Two-sided FR.4 epoxy resin/glass base with solder mask
Front bezel/rear designation housing	ABS UL94V-0
Rear wire management bar	0.32" x 0.125" Cold rolled steel, round edge flat wire	Painted black - no texture

FEATURES	BENEFITS
ETL verified to TIA Category 5e component spec	Elevated component performance
Center tuned to Clarity^5E patch cords	More transparent mated union
Universal wiring	Supports T568A and T568B installs
Easy lace 110 termination	Saves installation time
Supplied rear cable management	Supports good cabling practice
High density design	Maximizes rack utilization
RoHS compliant	Lead free

SPECIFICATIONS
Performance Rating	Category 5e
Panel or Accessory Type	Mod 8/110
Mod Jack Wiring	Universal T568A/B
Wiring Scheme	T568 A/B
Number of Ports	48
Critical Size	2 rack units
Color	Black with green print
Width	19 in (482.6 mm)
Depth	.125 in (3.175 mm)
Height	3.5 in (88.9 mm)
Cable Diameter Range	22-26 AWG
UL Listing No.	E131600
UL Standard	UL 1863
CUL Listing No.	E131600
CUL Standard	UL 1863
FCC Standard	Part 68
ETL Listing No.	3013270-004
ETL Standard	TIA/EIA-568-B.2

LABELING OPTIONS
Part No. & Sheet Size	70400408, '8.5" x 11"
Label Size	3.74" x .392"
No. Labels/Sheet	26
No. Sheets/Bag	10
Brady Part No.	LAT-43-7070.375 x 2.87 Label
Acceptable printers	Laser sheet fed

CONSTRUCTION
	Material	Finish/Plating
Panel	.094" Aluminum	Painted black texture with green silkscreen
Six-port jack housing	High impact thermoplastic UL 94V-0
Six-port rear IDC housing	Polycarbonate
Array of eight modular dual reactance contacts	Beryllium copper	Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
IDC contacts (low noise)	Phosphor Bronze	Nickel plating with tin over plate
Printed circuit board	Two-sided FR.4 epoxy resin/glass base with solder mask
Front bezel/rear designation housing	ABS UL94V-0
Rear wire management bar	0.32" x 0.125" Cold rolled steel, round edge flat wire	Painted black - no texture

FEATURES	BENEFITS
ETL verified to TIA Category 5e component spec	Elevated component performance
Center tuned to Clarity^5E patch cords	More transparent mated union
Universal wiring	Supports T568A and T568B installs
Easy lace 110 termination	Saves installation time
Supplied rear cable management	Supports good cabling practice
High density design	Maximizes rack utilization
RoHS compliant	Lead free
