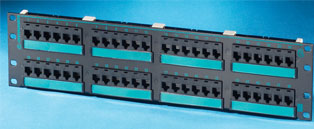

48 Port Clarity5e Angled Patch Panel

Part No.:

OR-PHA5E6U48

£156.32

£183.68 Inc VAT.

Price:

In Stock: Next Day

Delivery:

This product is no longer available from comms express.

need assistance - call us on 0845 2000 256

Overview

Express List

Clarity5E angled 48-port high density patch panel is component compliant to TIA/EIA Category 5e performance requirements. It occupies one rack unit and measures 19" x 3.5". Jacks are grouped in six-port modules. Part of the Clarity5E link and channel solution that provides significant installed performance headroom.

SPECIFICATIONS
Performance Rating	Category 5e
Panel or Accessory Type	Mod 8/110
Mod Jack Wiring	Universal T568A/B
Wiring Scheme	T568A/B
Number of Ports	48
Critical Size	2 rack units
Color	Black with green print
Width	19" (482.6 mm)
Depth	.182" (46.23 mm)
Height	3.5" (88.90 mm)
Cable Diameter Range	22-26 AWG
UL Listing No.	E131600
UL Standard	UL 1863
CUL Listing No.	E131600
CUL Standard	UL 1863
FCC Standard	Part 68
ETL Listing No.	3013270-004
ETL Standard	TIA/EIA-568-B.2

LABELING OPTIONS
Part No. & Sheet Size	70400408, 8.5" x 11"
Label Size	3.74" x .392"
No. Labels/Sheet	26
No. Sheets/Bag	10
Brady Part No.	LAT-43-7070.375 x 2.87 Label
Acceptable printers	Laser sheet fed

CONSTRUCTION
	Material	Finish/Plating
Panel	.090" Aluminum	Painted black texture with green silkscreen
Six-port jack housing	High impact thermoplastic UL 94V-0
Six-port rear IDC housing	Polycarbonate
Array of eight modular dual reactance contacts	Beryllium copper	Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area
IDC contacts (low noise)	Phosphor Bronze	Nickel plating with tin over plate
Printed circuit board	Two-sided FR.4 epoxy resin/glass base with solder mask
Front bezel/rear designation housing	ABS UL94V-0
Rear wire management bar	0.32" x 0.125" Cold rolled steel, round edge flat wire	Painted black - no texture

FEATURES	BENEFITS
Recssed design with lower mounted profile	Directs cords more easily to vertical management
ETL verified to TIA Category 5e component spec	Elevated component performance
Center tuned to Clarity^5E patch cords	More transparent mated union
Universal wiring	Supports T568A and T568B installs
Easy lace 110 termination	Saves installation time
Supplied rear cable management	Supports good cabling practice
High density design	Maximizes rack utilization
RoHS compliant	Lead free

SPECIFICATIONS

Performance Rating

Category 5e

Panel or Accessory Type

Mod 8/110

Mod Jack Wiring

Universal T568A/B

Wiring Scheme

T568A/B

Number of Ports

Critical Size

2 rack units

Color

Black with green print

Width

19" (482.6 mm)

Depth

.182" (46.23 mm)

Height

3.5" (88.90 mm)

Cable Diameter Range

22-26 AWG

UL Listing No.

E131600

UL Standard

UL 1863

CUL Listing No.

E131600

CUL Standard

UL 1863

FCC Standard

Part 68

ETL Listing No.

3013270-004

ETL Standard

TIA/EIA-568-B.2

LABELING OPTIONS

Part No. & Sheet Size

70400408, 8.5" x 11"

Label Size

3.74" x .392"

No. Labels/Sheet

No. Sheets/Bag

Brady Part No.

LAT-43-7070.375 x 2.87 Label

Acceptable printers

Laser sheet fed

CONSTRUCTION

Material

Finish/Plating

Panel

.090" Aluminum

Painted black texture with green silkscreen

Six-port jack housing

High impact thermoplastic UL 94V-0

Six-port rear IDC housing

Polycarbonate

Array of eight modular dual reactance contacts

Beryllium copper

Nickel plating and a minimum of 50 micro inches of selective gold plating in contact area

IDC contacts (low noise)

Phosphor Bronze

Nickel plating with tin over plate

Printed circuit board

Two-sided FR.4 epoxy resin/glass base with solder mask

Front bezel/rear designation housing

ABS UL94V-0

Rear wire management bar

0.32" x 0.125" Cold rolled steel, round edge flat wire

Painted black - no texture

FEATURES	BENEFITS
Recssed design with lower mounted profile	Directs cords more easily to vertical management
ETL verified to TIA Category 5e component spec	Elevated component performance
Center tuned to Clarity^5E patch cords	More transparent mated union
Universal wiring	Supports T568A and T568B installs
Easy lace 110 termination	Saves installation time
Supplied rear cable management	Supports good cabling practice
High density design	Maximizes rack utilization
RoHS compliant	Lead free
