End of Life Product

£751.24

£901.49 Inc VAT

751

Earn 751 Data Points when purchasing this product. More Info

Sorry, this item is no longer available from Comms Express.

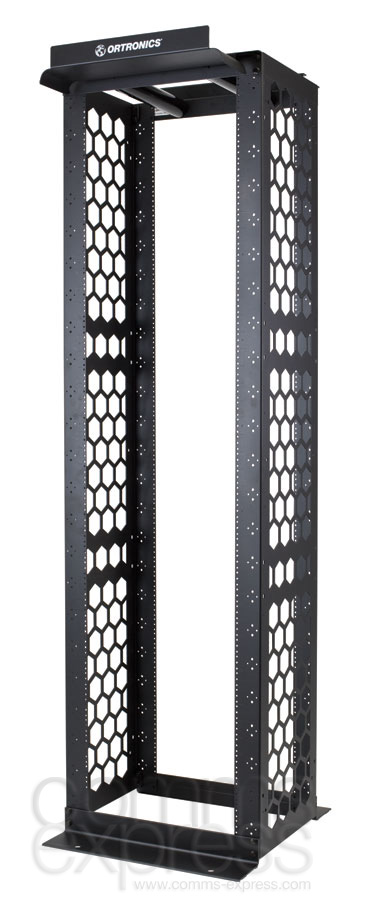

45u Mighty Mo 10 320mm Deep Rack

See more product details

Part No:	OR-MM10716
Delivery:	End of Life Product

Looking to save even more money?

Submit a quote request today and we may be able to save you money

More Related Items

Click to change options

Colour:

Apply

£97.88 Ex VAT

Qty:

Click to change options

Length:

Colour:

Apply

£1.71 Ex VAT

Qty:

£61.47 Ex VAT

Qty:

£76.08 Ex VAT

Qty:

Email product to a friend

Your Name:

Your Email:

Recipient Email:

Message:

Scroll to top

SPECIFICATIONS
Family	Mighty Mo 10
Product	Mighty Mo 10 Cable Management Racks
Color	Black
Width (Imp/Metric)	23.75" (603 mm)
Depth (Imp/Metric)	26.25" (667 mm)
Height (Imp/Metric)	86" (2.2 m)
Capacity Weight-US	Static capacity 1,500 lbs.
Rack Units	45
Patent No.	Patent pending

CONSTRUCTION
	Material	Finish/Plating
Frame	Aluminum	Black Powdercoat

FEATURES	BENEFITS
Honeycomb side rails designed to maximize the airflow of network equipment.	Combined with baffles, manages intake and exhaust air creating cold aisle/hot aisle distribution from side vented equipment
High density racking solution	45 rack units front and rear
Choice of vertical management	A solution for every application; vertical cable management cage with individual rack unit fingers and hinged door, vertical cage with hinged access latches, and cable management rings
Patented channel construction	Protects and conceals your horizontal cabling like no other rack
Built-in top trough with waterfalls	Gives bend radius control and cable routing
Open channels top and bottom	Allows floor and ceiling access for horizontal distribution cables
EIA hole pattern front and rear of channel	Supports equipment shelves and heavy electronics while power strips and other accessories can be mounted to the rear rail without using additional rack space
Can be assembled as a 19" or 23" rack	No additional hardware required; no need to stock two sizes of racks
Footprint 23.75" W x 21.5" D (when assembled as a 19" rack and rear base angle turned in)	Stays within a 2' square footprint
Speed nuts included	Increases speed and ease of assembly, while adding extra strength to your rack--Speednut eliminates the need for a second wrench
Rack includes hardware kit, two packages of hook and loop D-style straps and 50 #12-24 equipment mounting screws	Do not have to purchase as separate items; money saving

SPECIFICATIONS
Family	Mighty Mo 10
Product	Mighty Mo 10 Cable Management Racks
Color	Black
Width (Imp/Metric)	23.75" (603 mm)
Depth (Imp/Metric)	26.25" (667 mm)
Height (Imp/Metric)	86" (2.2 m)
Capacity Weight-US	Static capacity 1,500 lbs.
Rack Units	45
Patent No.	Patent pending

CONSTRUCTION
	Material	Finish/Plating
Frame	Aluminum	Black Powdercoat

FEATURES	BENEFITS
Honeycomb side rails designed to maximize the airflow of network equipment.	Combined with baffles, manages intake and exhaust air creating cold aisle/hot aisle distribution from side vented equipment
High density racking solution	45 rack units front and rear
Choice of vertical management	A solution for every application; vertical cable management cage with individual rack unit fingers and hinged door, vertical cage with hinged access latches, and cable management rings
Patented channel construction	Protects and conceals your horizontal cabling like no other rack
Built-in top trough with waterfalls	Gives bend radius control and cable routing
Open channels top and bottom	Allows floor and ceiling access for horizontal distribution cables
EIA hole pattern front and rear of channel	Supports equipment shelves and heavy electronics while power strips and other accessories can be mounted to the rear rail without using additional rack space
Can be assembled as a 19" or 23" rack	No additional hardware required; no need to stock two sizes of racks
Footprint 23.75" W x 21.5" D (when assembled as a 19" rack and rear base angle turned in)	Stays within a 2' square footprint
Speed nuts included	Increases speed and ease of assembly, while adding extra strength to your rack--Speednut eliminates the need for a second wrench
Rack includes hardware kit, two packages of hook and loop D-style straps and 50 #12-24 equipment mounting screws	Do not have to purchase as separate items; money saving
