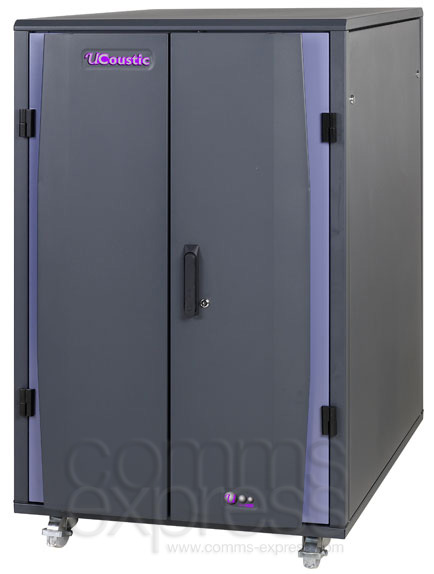

24u 1100mm Deep UCoustic Sound Proof Server Cabinet

This range of UCoustic enclosures has been designed to eliminate two of the most common problems associated with modern high density server and active equipment, namely excessive noise and heat.

Sound Reduction – From Noisy Server to Human Whisper
The combination of record breaking noise attenuation and thermal dissipation performance ensures the UCoustic™ family is a world class leader in its field.

Using state of the art acoustic materials, Sound reduction up to 28.5dBA can be achieved using the UCoustic sound proof enclosures.  All this is achieved without compromising airflow or cooling.

As with all sound proof enclosures, the performance of the UCoustic™ family relies upon the ingenuity of the enclosure design and the acoustic material used in order to remove as much noise from the enclosed sound source (e.g. servers) as is possible. Noise is measured in decibels (dBA) so when we claim 28.5dBA noise attenuation, we are basically saying this is the amount of noise we are removing from the sound source. So if the starting point of the sound source is 69dBA (equivalent to a vacuum cleaner at 3m) then by removing 28.5dBA will be the equivalent of reducing the sound source down to say ‘quiet speech’ (see chart below) putting this into context, the cabinet placed in an office environment which can sit anywhere between 48dBA (average office without speech) and 78dBA (busy office with speech), then basically this is a long winded way of saying you will not be able to hear the original sound source from within the UCoustic™ Cab – unless you had your ear pressed up again the cabinet!

You can use the following sound demonstration to hear the effects yourself

Passive Model
Heat in dissipated through normal airflow convection, using only the fans in the server equipment to channel the hot air through the cabinet.  This cabinet is capable of dealing with a heat load up to 2.25kW.

Features:

• Passive Wardrobe Front & Rear Doors
• 780w x 1100d Frame
• 19” Mounting Angles fitted front and rear
• Front and rear infill’s
• Cable entry via base of cabinet cable entry acoustic foam block
• Optional dust ingress protection
• All cladding is easily removable
• Load Bearing Castors

Active Model
UCoustic Active models come complete with a fan assisted rear door which increases the efficiency of the heat dissipation up to a maximum of 7.2kw.

Features:

• Passive Wardrobe Front Doors
• Active Rear Doors c/w Fan speed controller and temperature sensor
• 780w x 1100d Frame
• 19” Mounting Angles fitted front and rear
• Front and rear infill’s
• Cable entry via base of cabinet and cable entry acoustic foam block
• Optional dust ingress protection
• All cladding is easily removable
• Load Bearing Castors
