17`` 1u Cyberview LCD, Keyboard & Mouse Console Drawer

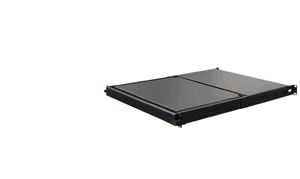

Austin Hughes 1u LCD, Keyboard Mouse Console Drawer - RKP117

The RKP11x series is a 1U high LCD keyboard drawer with optional USB or PS/2 KVM switch, available with 15", 17" or 19" Samsung LCD screen. Features include extended slide rails to provide clearance between the rack panel mounts and the rear of the LCD panel allowing other installed equipment to be protruding behind the panel whilst it is in use maintaining a suitable viewing angle.

The extended slide rails have two friction stops to prevent the keyboard moving when typing and provide effective control for an administrator to manage multiple servers via the optional KVM switch or remotely via the world wide web using secure IP access.

Console Drawer Features:

• 1U LCD Screen / Keyboard Drawer
  Space saving 1U design incorporating LCD screen and keyboard
• 15" TFT LCD Screen
  Available with a 15 or 17" LCD screen,  in a 1U unit
• Built in on screen display controlled by integeral membrane switches
  Alllows adjustment of color, contrast, brightness, H position, V position, Auto Configure, OSD, etc
• Unique modular mechanical design
  Allows easy component level replacement and provides a KVM migration path
• Extended slide rails provide clearance distance between rack panel mounts and rear of the LCD screen
  Alllows protruding equipment i.e servers and patch panels to be mounted directly above the drawer, without interference
• Slide rails have two friction stops to prevent movement of the keyboard
  Alllowing comfortable working on the unit while maintaining safety practices
• A selection of keyboards and mouse options
  Available with notebook keyboard and either trackball or touchpad mouse
• Full selection of keyboard languages
  Available in European (UK) / US / Spanish / German / French / Italian / Norwegian
• All mounting hardware included

Optional inbuilt KVM Options (PS2/USB)

CV-801 / CV-1601 Series KVM switches -: 1U rack mount PS/2 KVM (keyboard, Video and Mouse)switches with front LED membrane providing channel and bank selection or OSD (on screen display) using hotkeys.Using the PS/2 KVM switch allows you to connect upto 16 servers, in addition to this the KVM switch can be cascaded 'or stacked' with our other CV series KVM switches to enable access to upto 128 servers.

Click here to download a data sheet for the optional KVM

• 8 or 16 port KVM
  Available with PS/2 or USB KVM switch options, cascade able up to 128 servers
• Built in integral membrane switch
  Allows user to choose server selection via membrane button or 'hot' keys via OSD
• Multiplatform
  Provides instant switching between PC's, SUN's, IBM's, HP's, Compaq and DELL platforms
• Stay Alive Feature
  Safeguards server for power loss to switch
• Access Password Security
  Supports eight character password protection and search feature for specific PC or server name
• Auto Scan Mode
  Monitor your servers at intervals 5 - 99 seconds, set by the user
• Supplied with 8 x 6ft C Series KVM connection cables
  Supports good rear cable management via the use of 8 x 3 in 1 cables


Optional inbuilt KVM Options (IP)

IP-802 / IP-1602 Series KVM switches -: 1U rack mount PS/2 - two console - KVM (keyboard, Video and Mouse)switches with front LED membrane providing channel and bank selection or OSD (on screen display) using hotkeys.

Using the PS/2 KVM switch allows you to connect upto 16 servers, in addition to this the KVM switch can be cascaded 'or stacked' with our other CV series KVM switches to enable access to upto 128 servers.

Click here to download a data sheet for the IP KVM Option
