| Part No: | FEST7300USBME |
| Manufacturer No: | ST7300USBME |
| Delivery: | In Stock: Next Day |
 |

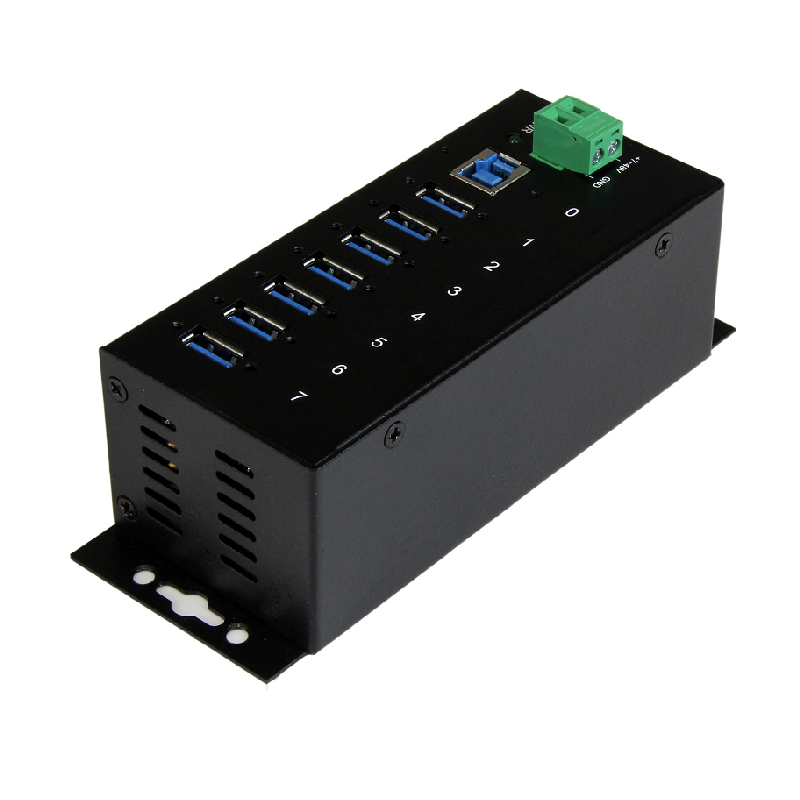

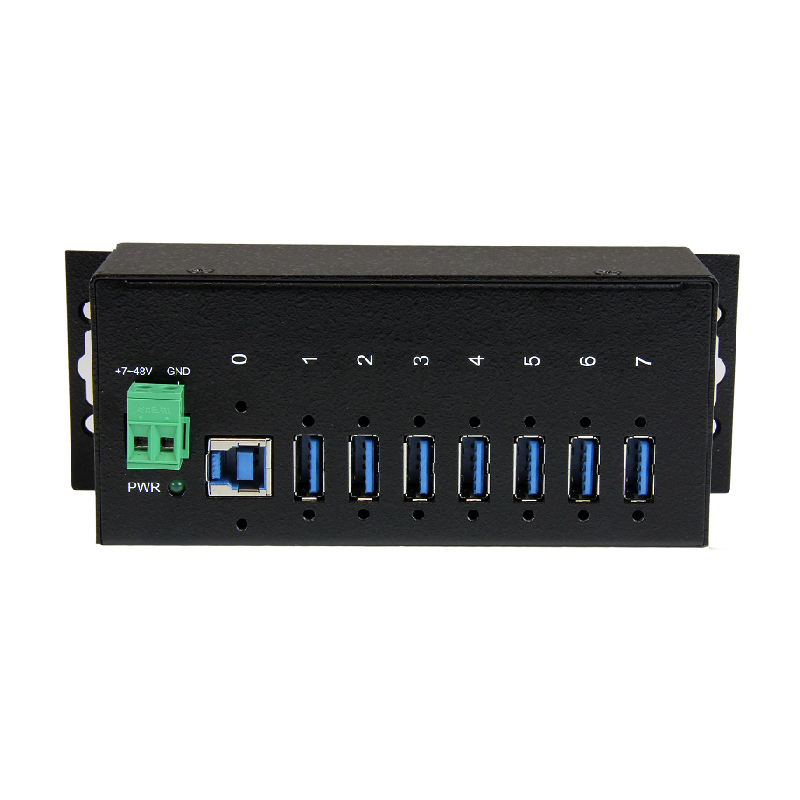

7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
Industrial-grade | 15kV Air | 8kV Contact?| Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 7-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Designed for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.

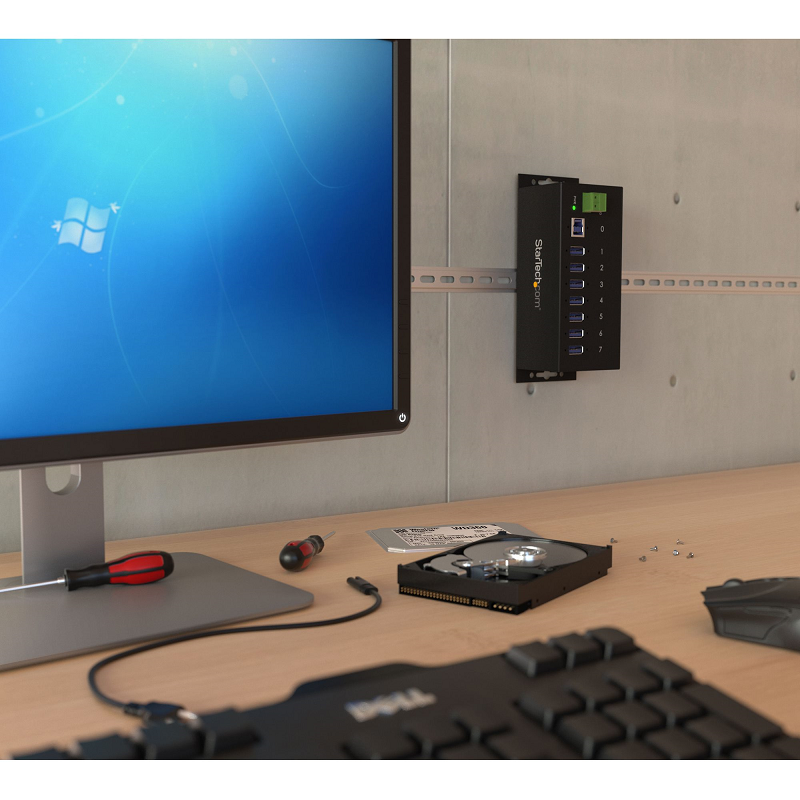

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port | Yes |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Ports quantity | 7 |
| Features | |
| Surge protection | Yes |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Steel |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Power | |
| Power source type | DC |
| Input voltage | 7 - 48 V |
| Performance | |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Surge protection | Yes |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 126106 h |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Design | |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Weight & dimensions | |
| Width | 54 mm |
| Depth | 145 mm |
| Height | 45 mm |
| Weight | 325 g |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 190 mm |
| Package height | 69 mm |
| Package weight | 600 g |
| Manual | Yes |
| Terminal block included | Yes |
| DIN rail kit included | Yes |
| Cables included | USB |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
A product diagram can be found in the PDF file
7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub
Industrial-grade | 15kV Air | 8kV Contact?| Metal | Mountable | DIN Rail | 5 Gbps
This TAA compliant 7-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-48V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Designed for a high volume of connections, this robust USB 3.0 hub offers 7 connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 35W total, so you can charge your mobile devices faster than traditional USB ports allow.
With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
StarTech.com offers an external power adapter, ITB20D3250, sold separately. The universal DC power adapter can be used as an alternative, back up or replacement power supply for StarTech.com’s line of industrial USB hubs.
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.
The ST7300USBME is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port | Yes |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Ports quantity | 7 |
| Features | |
| Surge protection | Yes |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Steel |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Power | |
| Power source type | DC |
| Input voltage | 7 - 48 V |
| Performance | |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Surge protection | Yes |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 126106 h |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95 % |
| Design | |
| LED indicators | Power |
| Product colour | Black |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Weight & dimensions | |
| Width | 54 mm |
| Depth | 145 mm |
| Height | 45 mm |
| Weight | 325 g |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 190 mm |
| Package height | 69 mm |
| Package weight | 600 g |
| Manual | Yes |
| Terminal block included | Yes |
| DIN rail kit included | Yes |
| Cables included | USB |
Full specification and details can be found in the PDF file
An instruction manual can be found in the PDF file
A product diagram can be found in the PDF file
