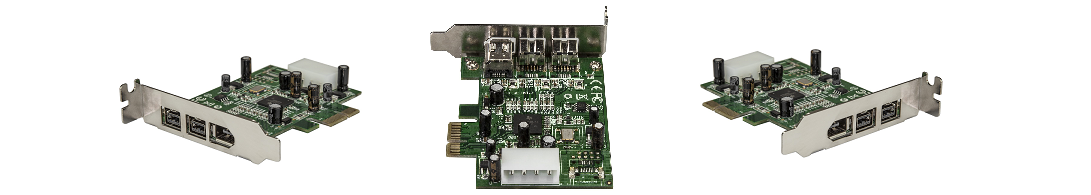

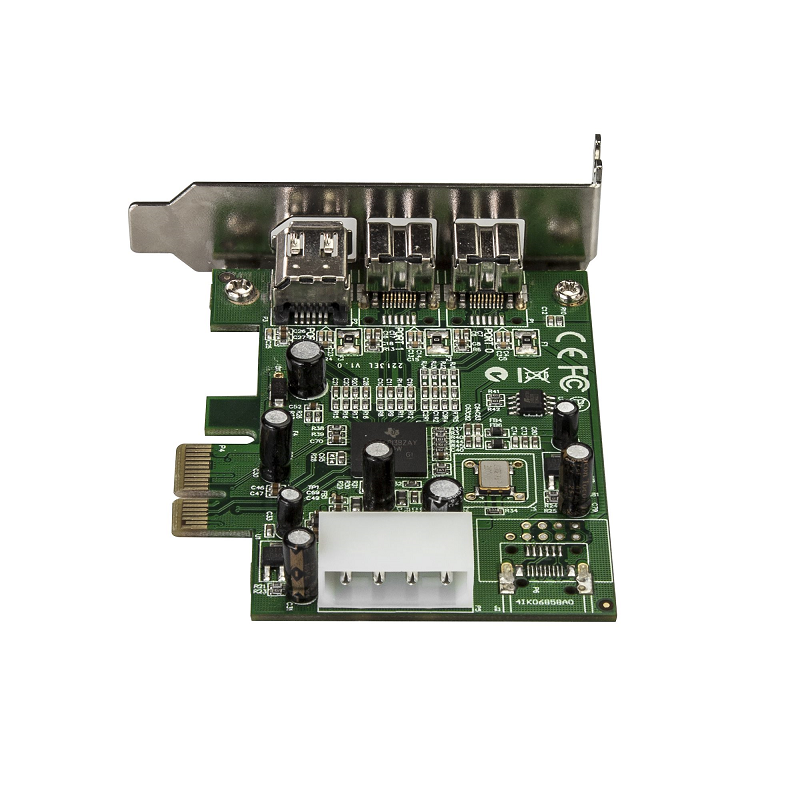

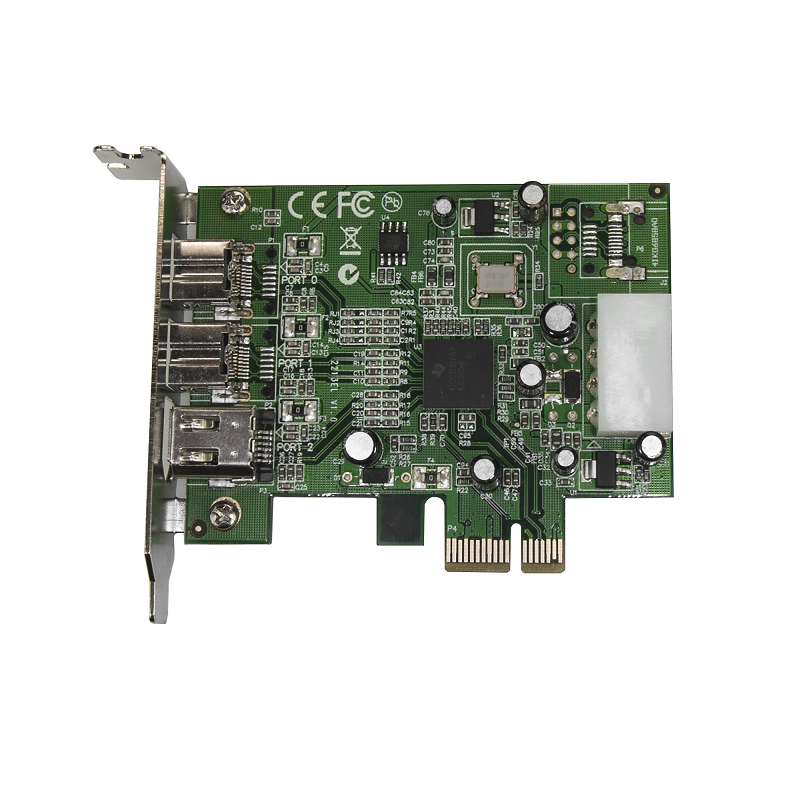

3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot

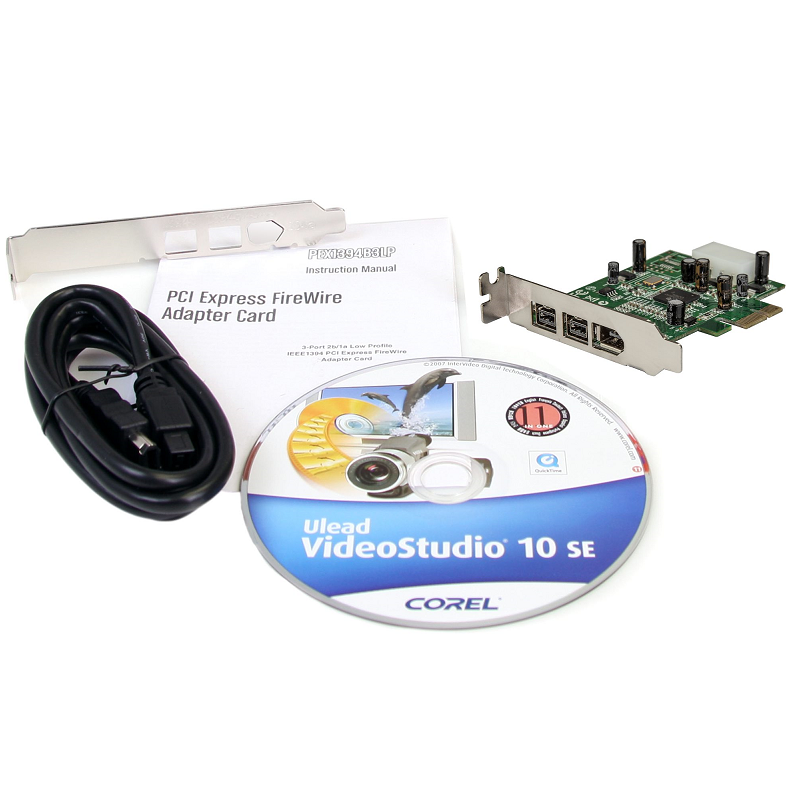

This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
| Ports & interfaces | |
| Internal | Yes |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
| Output interface | IEEE 1394/Firewire |
| Firewire (IEEE 1394) ports | 3 |
| Host interface | PCIe |
| Technical details | |
| Plug and Play | Yes |
| Chipset | LSI/Agere - FW643 |
| Data transfer rate (max) | 0.8 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Chipset | LSI/Agere - FW643 |
| Data transfer rate (max) | 0.8 Gbit/s |
| Product colour | Green |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 58 mm |
| Height | 20 mm |
| Depth | 90 mm |
| Weight | 40 g |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
Add 2 native FireWire 800 ports to your low profile/small form factor computer through a PCI Express expansion slot
This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case.
The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
The 2x FireWire 800 and 1x FireWire 400 card features a native (single chip) PCI Express chipset, which provides faster, more reliable and cost-effective performance than expansion cards that utilize a "bridge" chip.
| Ports & interfaces | |
| Internal | Yes |
| FireWire 400 ports quantity | 1 |
| FireWire 800 ports quantity | 2 |
| Output interface | IEEE 1394/Firewire |
| Firewire (IEEE 1394) ports | 3 |
| Host interface | PCIe |
| Technical details | |
| Plug and Play | Yes |
| Chipset | LSI/Agere - FW643 |
| Data transfer rate (max) | 0.8 Gbit/s |
| Sustainability certificates | RoHS |
| Performance | |
| Hot-swap | Yes |
| Plug and Play | Yes |
| Chipset | LSI/Agere - FW643 |
| Data transfer rate (max) | 0.8 Gbit/s |
| Product colour | Green |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 90 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 58 mm |
| Height | 20 mm |
| Depth | 90 mm |
| Weight | 40 g |
Full specification and details can be found in the PDF file
A user manual can be found in the PDF file
