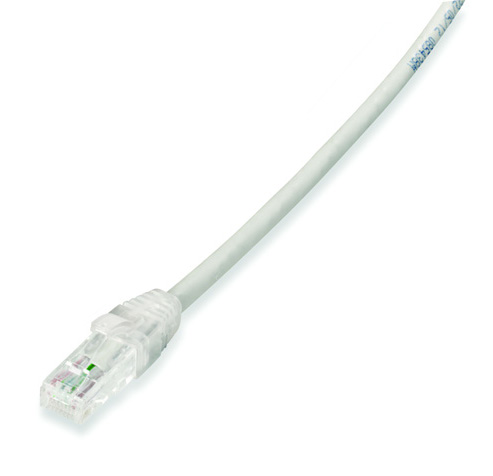

Molex PowerCat 5E U/UTP LS0H Patch Cord Grey

Molex PowerCat 5e U/UTP Patch Cords are key components of PowerCat 5e U/UTP End-to-End Solution and are designed to support data networks for 10/100BASE-T and 1000BASE-T applications.

The patch cable is made from high quality four pair 24 AWG stranded copper wire. Available in a range of colors and lengths, PowerCat 5e patch cords are pre-terminated with RJ45 plugs and feature anti-snag slim strain relief slip on boots.

Features & Advantages

• 4 pair 24 AWG stranded copper wire
• Pre-terminated with WE8W plugs
• Slim clear anti-snag slip on boots
• Suitable for EIA 568A or 568B wiring
• LS0H sheath
• RoHS Compliant

Technical Information

Cable

• Conductor size: 24 AWG stranded copper wire
• Nom.: O.D.: 5.4mm
• Sheath: LS0H
• Bend radius: 4X O.D.
• Operating temperature range: -25°C to 55°C

Plug

• MIN operating life: 750 insertion cycles
• RJ45 plug and boot material: Clear polycarbonate
• Contact material: 0.35mm thick copper alloy
• Contact plating: Selective gold
• RJ45 plug dimensions compliant with: ISO/IEC 60603-7-4 and FCC 47 Part 68

Electrical

• Max voltage: 150 VAC (max)
• Max current: 1.5A @ 25°C
