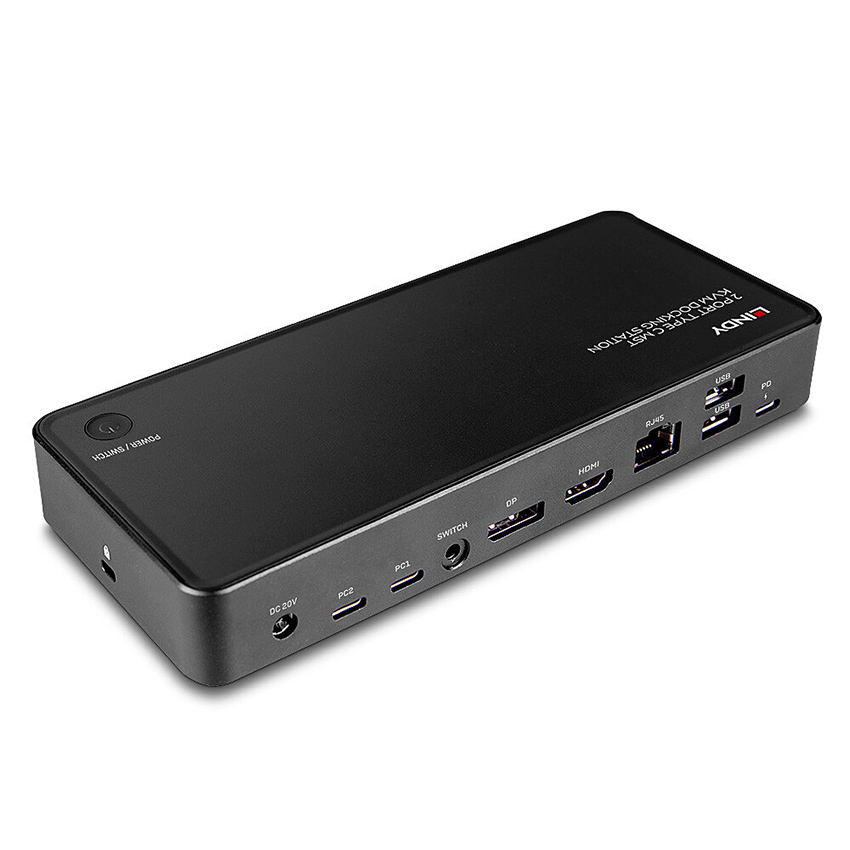

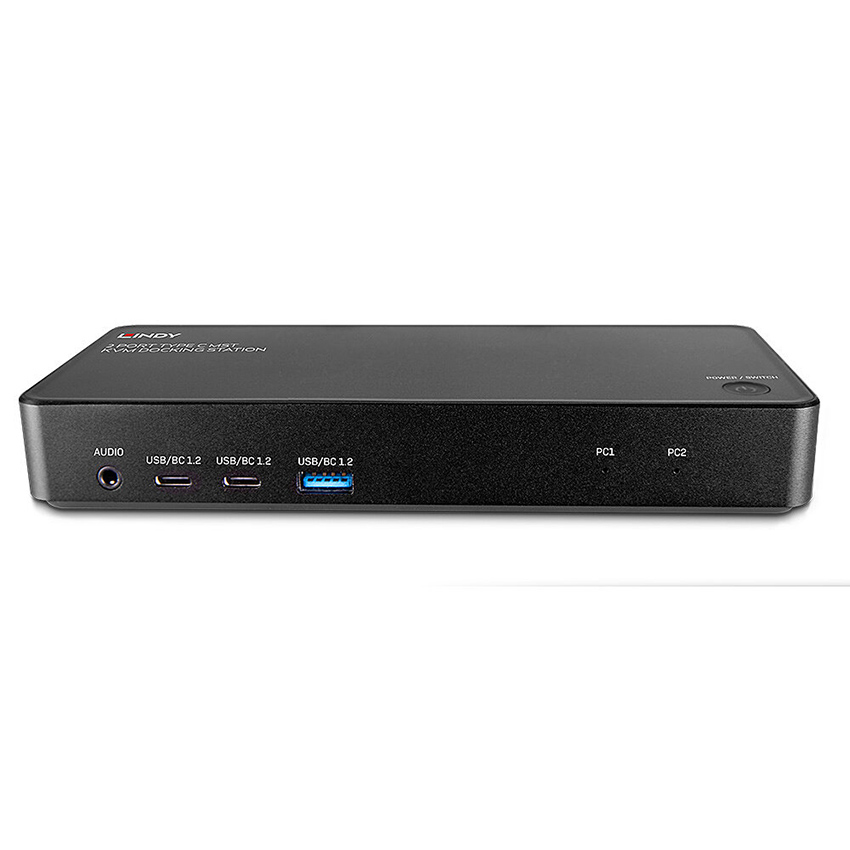

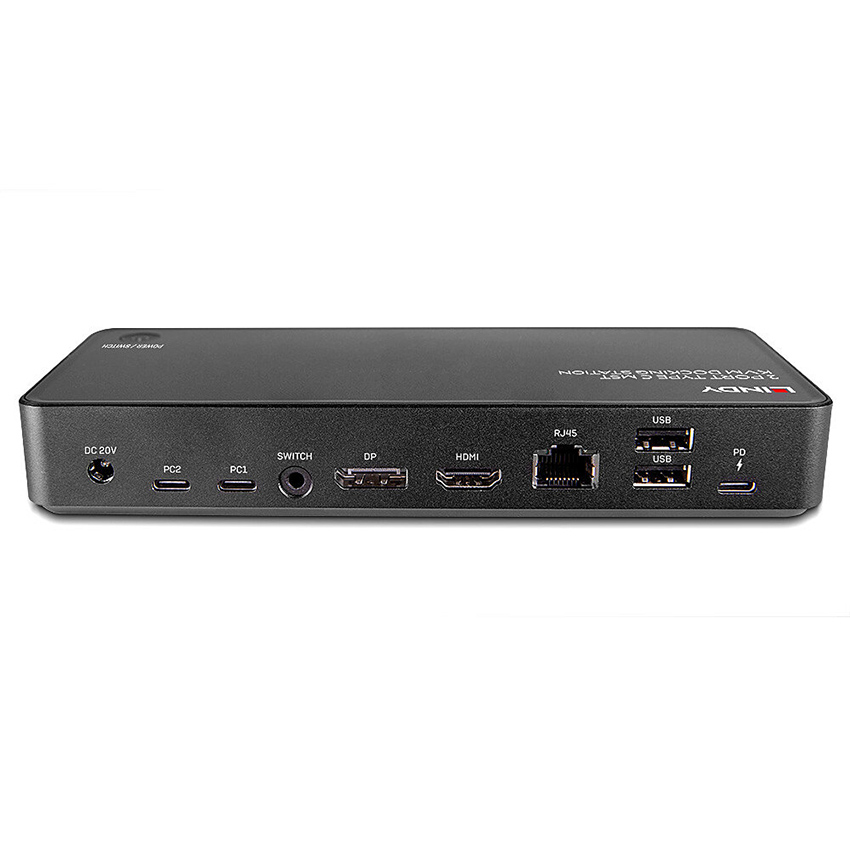

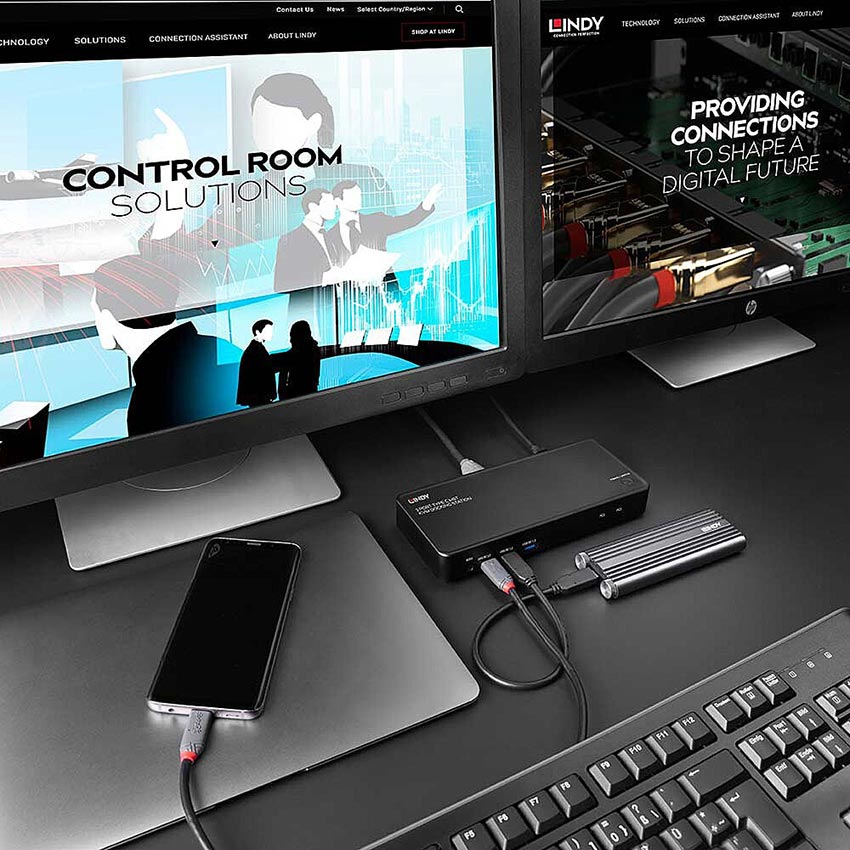

Lindy 43202 2 Port Type C MST KVM Docking Station

2 Port Type C MST KVM Docking Station - Connect and share your peripherals between 2 USB Type C sources

Key Features:

• Adds DP, HDMI, USB Type A, USB Type C, Gigabit Ethernet, Audio and a Power Delivery ports to 2 laptops, tablets or smartphones
• Supports up to 4K60 for one display, 4K30 and FullHD for dual display (MST)
• Features DisplayPort Alternate Mode
• USB Power Delivery 3.0 (100W on port 1 and 65W on port 2) allows charging the laptop while using the Docking Station
• 2-year warranty

The Lindy 2 Port Type C MST KVM Docking Station is a compact and versatile solution for connecting laptops to a range of interfaces including two displays. Featuring all critical interfaces required for a modern workstation, this device combines the comfort of a Desktop Docking Station with a Type C KVM Switch; it provides two USB 3.2 Type C inputs to connect sources such as laptops, tablets or smartphones in order to share the same workstation and peripherals connected. Switching is easily possible by pushing the button on the top of the unit.

Specifications:

• Interface: USB Type C to HDMI, DP, RJ45, USB Type A, USB Type C, 3.5mm
• Interface Standard: USB 3.2 / 3.1 Gen 1 / USB 3.0, HDMI 2.0, Gigabit LAN, DisplayPort 1.4
• Supported Bandwidth: 18G, 5Gbps, 10/100/1000Mbps
• Maximum Input Resolution: 3840 x 2160 @ 60Hz
• Maximum Output Resolution: 3840 x 2160 @ 60Hz
• Chipset: VL170 / VL160, FL7102 / FL7112, AX88179A, GL3510, KT0200, RTD2142
• Compatibility: USB Type C or Thunderbolt 3 equipped computers with DisplayPort Alternate Mode support
• Power Delivery: PD 3.0 up to 100W on port 1 and up to 65W on port 2
• HDCP Support: HDCP 1.4/2.2
• Supported Audio: 24/96kHz audio sampling rate
• Separate Audio Ports: 1x Audio combo port 3.5mm
• Special Features: MST, DisplayPort Alternate Mode, BC 1.2 charging
• Inputs: 2 x USB Type C (Female)
• Outputs: 1 x HDMI (Female), 1 x DisplayPort (Female), 1 x RJ45 (Female), 3 x USB Type A (Female), 3 x USB Type C (1 for PD) (Female), 1 x 3.5mm (Female)
• Power: 5.5/2.5mm
• Dimensions WxDxH: 185 x 79 x 28.7mm (7.28 x 3.11 x 1.13in)
• Housing Material: Plastic and Aluminium
• Net Weight: 1.2kg (2.65lb)
• Operating Temperature: 0°C - 55°C (32°F - 131°F)
• Storage Temperature: -10°C - 70°C (14°F - 158°F)
• Humidity: 0 - 85% RH  (non-condensing)
• Power Requirements: 24VDC 5.63A
• Colour: Black
• Packaging Type: Carton Box
• Packaging Dimensions: 250 x 203 x 50mm (9.84 x 7.99 x 1.97in)
• Gross Weight: 1.3kg (2.87lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, REACH & RoHS, CP65

Package contents:

• 2 Port Type C MST KVM Docking Station
• 2 x USB 3.2 Gen2 Type C cables, 1m
• 2 x Mains Cable IEC C13 (Schuko and UK), 1m
• IEC C14 Power Supply
• Lindy Manual

Datasheets / User Manuals / Quick Start Guides/ Charts can be downloaded from our Documentation tab (above)
