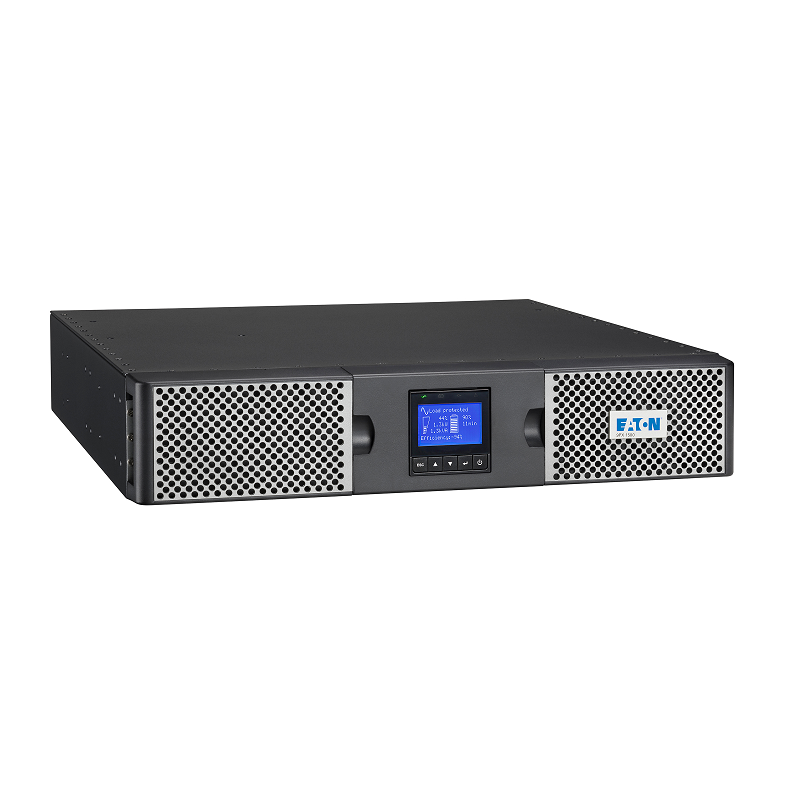

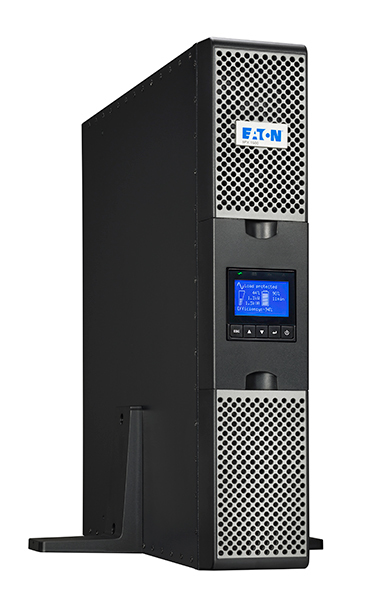

Eaton 9PX 9PX1500IRTM Marine UPS
Energy-efficient double conversion UPS
• Bridge systems
• Navigation systems
• Communication systems
• Small computer and automation systems
• Double conversion topology constantly monitors power conditions and regulates voltage and frequency.
• The internal bypass allows service continuity in case of internal fault, a maintenance bypass is also available for easy replacement of the UPS.
• With coated boards and hi-temperature environment compatibility, 9PX Marine is designed for Marine & Offshore environments.
• Stronger, longer battery life: Eaton ABM® battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%.
• DNV-GL type approved UPS.
• 9PX Marine is the first UPS in its class to provide Unity power factor (VA=W). It delivers 11% more power than any other UPS as well as powering more servers with equivalent VA ratings and lower power factors.
• 9PX can meter energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent PowerTM Software.
• Energy Star qualified, the 9PX Marine provides the highest efficiency level to reduce energy and cooling costs.
• The graphical LCD display provides clear information on the UPS’s status and measurements on a single screen. Enhanced configuration capabilities are also available.
• 9PX offers Serial and USB connectivity, plus an extra slot for an optional communication card. Eaton’s Intelligent Power Software seamlessly integrates with leading virtualisation environments and cloud orchestrations tools.
• More runtime can be added with up to 4 external hot-swappable battery modules, able to run systems for hours if necessary.
1. Graphical LCD display :
- Clear information on UPS status and measurements
- Enhanced configuration capabilities
2. Panel for batteries replacement (Hot swappable)
3. Slot for Management card
4. Outputs: 8 x IEC 10A + 2 x IEC 16A with energy metering (including 2 programmable groups)
5. USB port,1 serial port, Remote ON/OFF, Remote power OFF and Relay output
6. External battery (EBM) connector
Full specification and details can be found in the Product Datasheet PDF file
