| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DLDAP-3711 |
| Manufacturer No: | DAP-3711 |
| Delivery: | In Stock: 1-2 Weeks |
 |

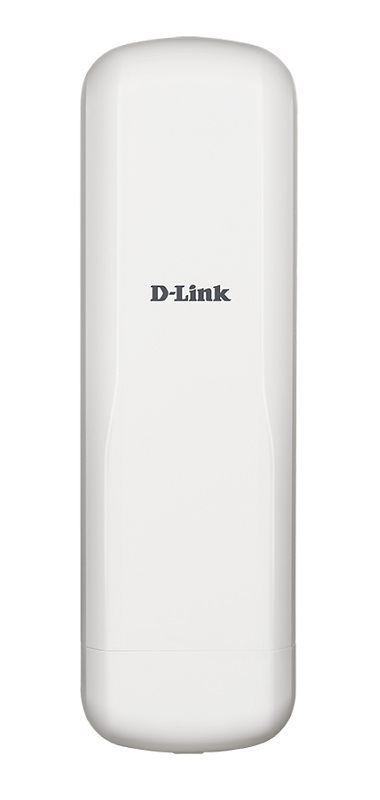

5 km Long Range Wireless AC Bridges

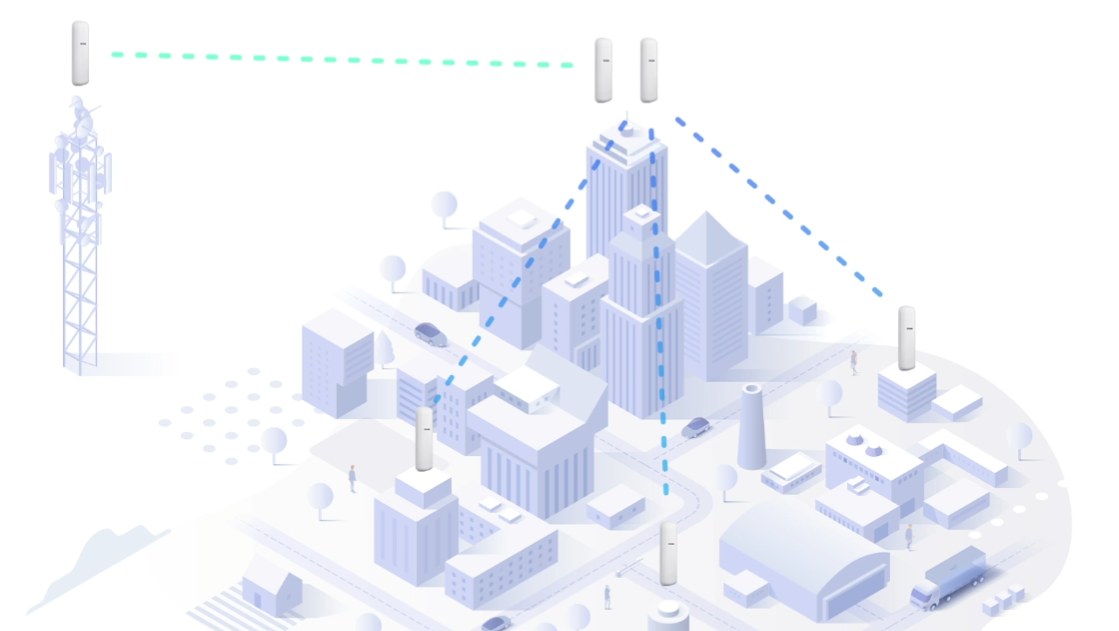

Resilient solutions that overcome the challenges of rural areas and tricky terrain to supply stable, high-speed connectivity over vast distances.
Rapid and cost-effective Internet distribution to get customers connected.

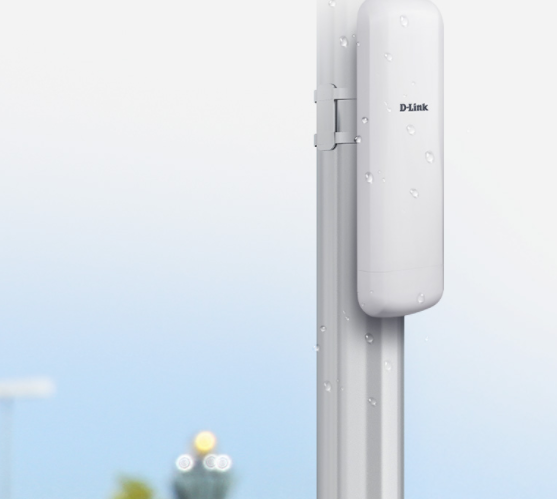

The DAP-3711 is enclosed in an unobtrusive IP66-rated housing, protecting it from rain and dirt. With built-in 8 kV surge protection, the DAP-3711 has protection against unexpected surges (such as lightning strikes), enabling it to be deployed where it’s needed, even in harsh environments and tough conditions.

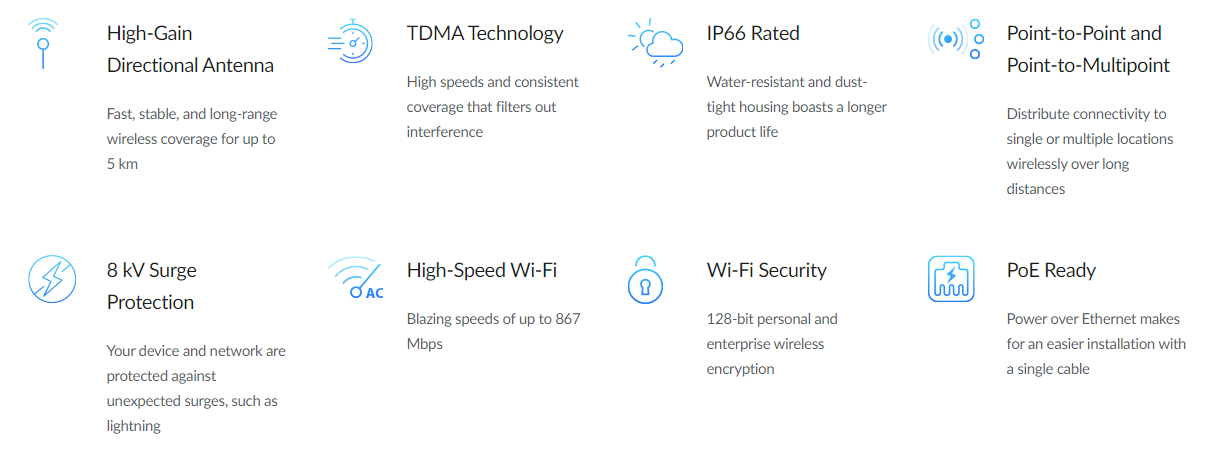

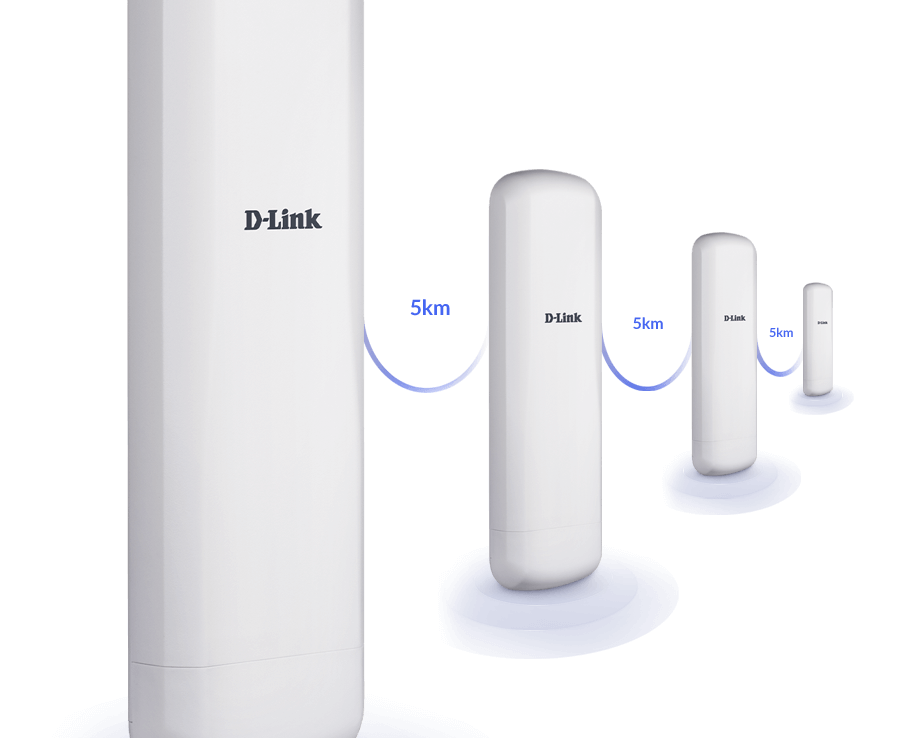

The DAP-3711 features state-of-the-art hardware, including powerful high-gain 15 dBi directional antennas that effortlessly extend the coverage of 5GHz wireless AC speeds of up to 867Mbps to distances of up to 5 km away.

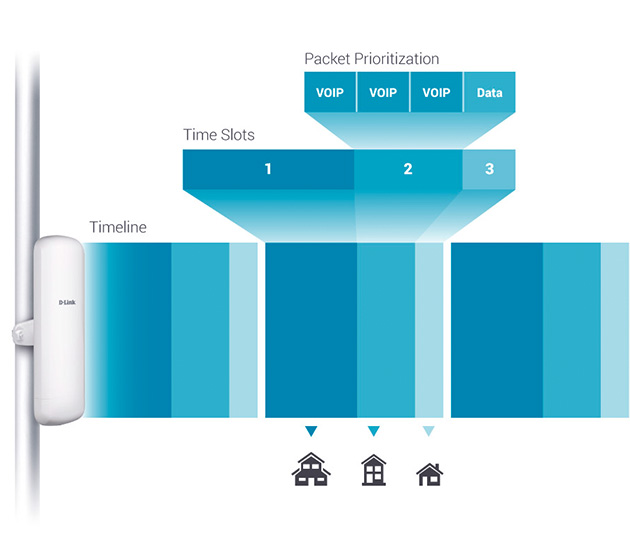

The DAP-3711 supports TDMA technology, creating a schedule for the bridge's access point and the client. The sender and receiver are allocated a time slot for transmissions, eliminating hidden node data collisions, maximising airtime efficiency, significantly cutting down interference, and dramatically improving the transfer rate.

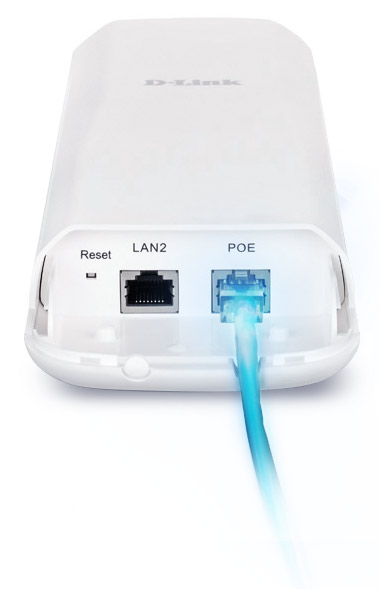

The DAP-3711 comes with a PoE injector included. No need to run extra power lines, no added hassle when configuring your hardwiring, and no more cable clutter.
The DAP-3711 is the essential infrastructure wireless solution in providing a reliable solution for outdoor wireless networking.
| Physical | |
| Power Input | PoE 24 V |
| Power Consumption | ? 15 W |
| Operating Temperature | -40ºC to 65ºC |
| Temperature (Storage) | -40ºC to 85ºC |
| Humidity (Operating) | 0% to 90% non-condensing |
| Humidity (Storage) | 0% to 90% non-condensing |
| Dimensions | 288 x 88 x 45 mm |
| Weight | 600 g |
| General | |
| Device Interfaces | 2 x 100/1000 Mbps Ethernet port, reset button |

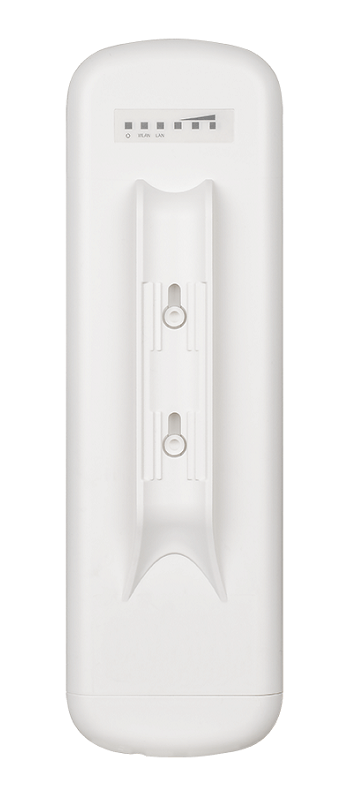

| LEDs | Power, LAN, WLAN, signal strength |
| Antenna Type | Internal |
| Antenna Gain | 15 dBi |
| Beamwidth | H: 40°, V: 15° |
| Standards | 802.11a/n/ac |
Full specification and details can be found in the PDF file
