| Product Code: | |
| Options: | |
| Qty: | |
| Unit Price: | £ |
| Part No: | DLDPS-520 |
| Manufacturer No: | DPS-520 |
| Delivery: | In Stock: 1-2 Weeks |
 |

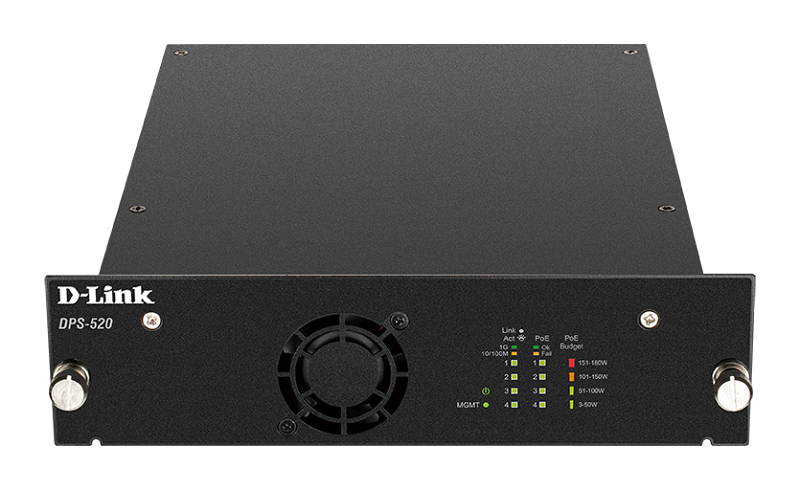

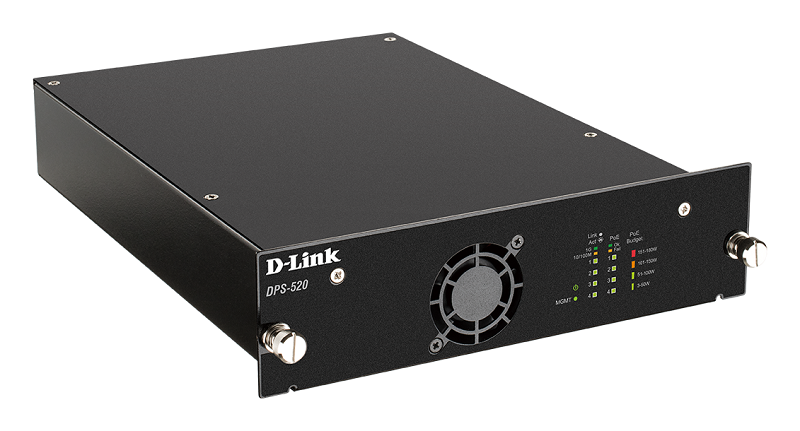

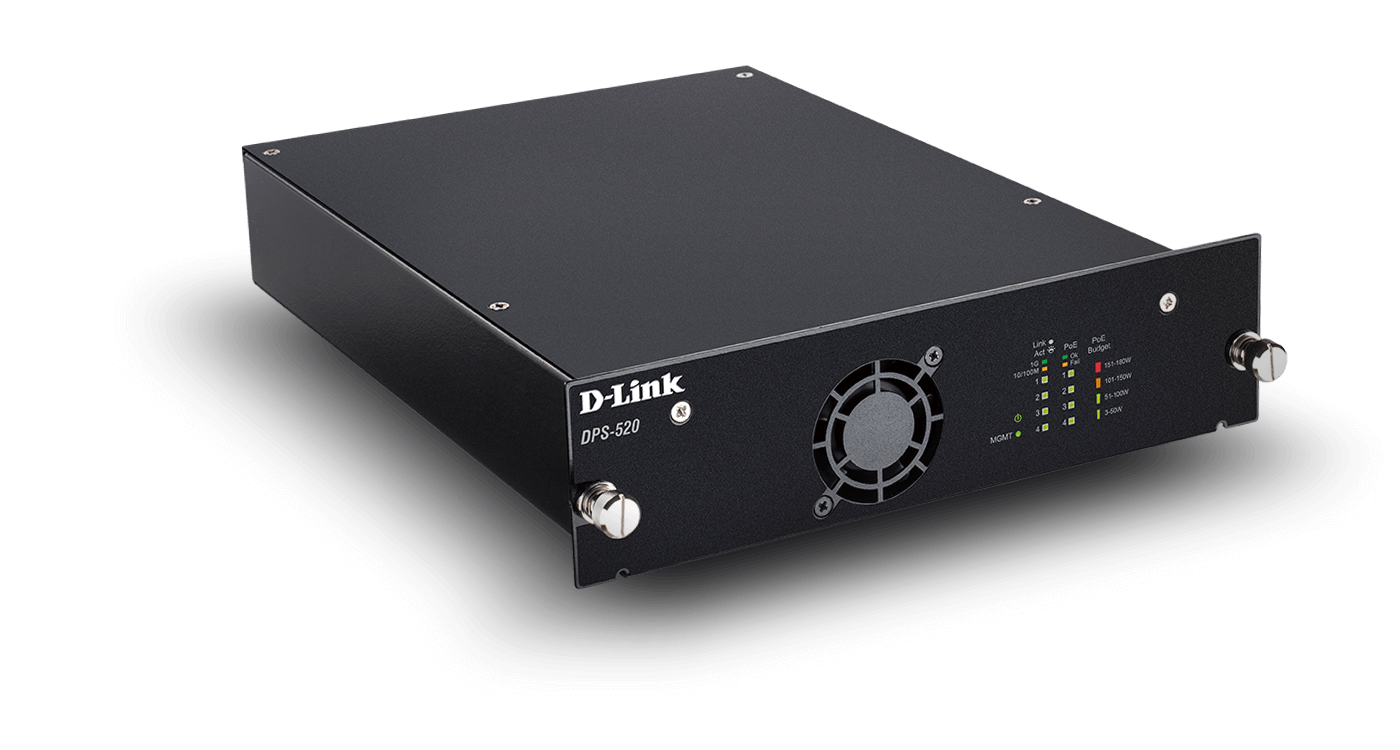

180W Redundant Power Supply
Provides redundancy and resiliency for a variety of power requirements as well as guarantee continuous activity and protection against power supply failures.

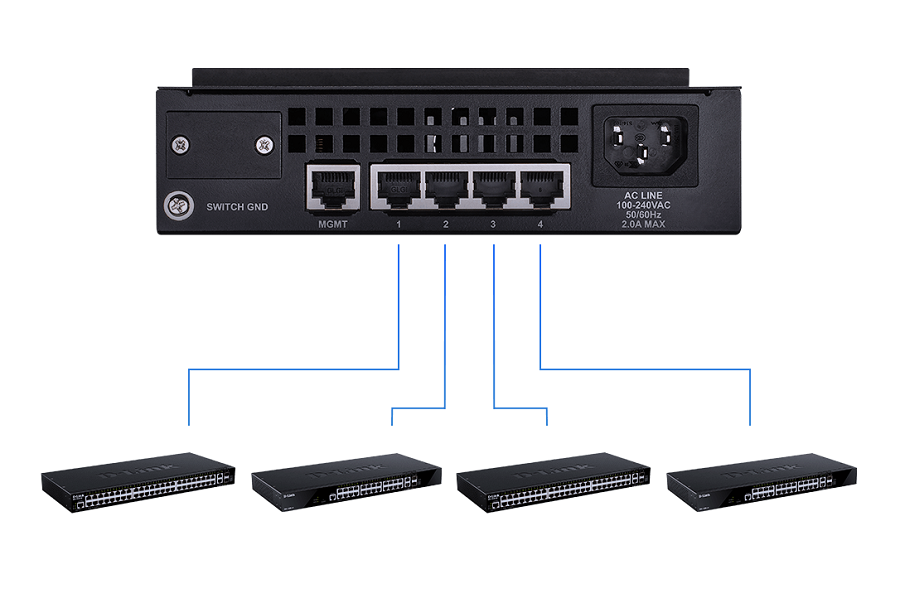

The DPS-520 offers uninterrupted operation for up to x4 D-Link switches and in the event of a power failure, it will be immediately activated, allowing your business to stay operational.

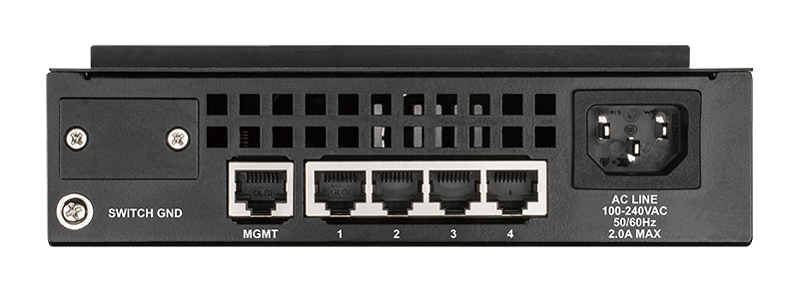

Any standard Category 5e or higher Ethernet cable can be used to connect the RPS to the switch, allowing the RPS to supply PoH power to the switch with up to 100m connection distance.

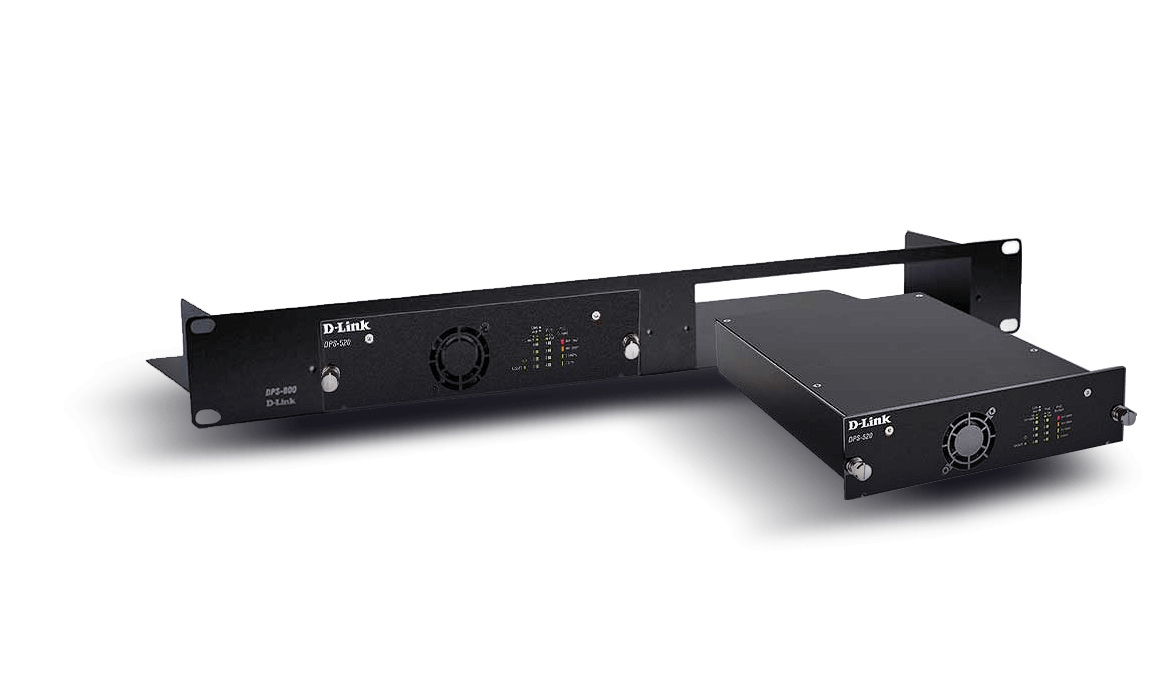

The DPS-520 is compatible with DGS-1520-28 and DGS-1520-52 and can be installed as a standalone power supply unit or onto a standard mounted switch rack by inserting it into an optional DPS-800 open chassis, designed to hold x2 DPS-520 RPS units. Connect to the RPS with a standard CAT-5e cable with a connection distance of up to 100m.

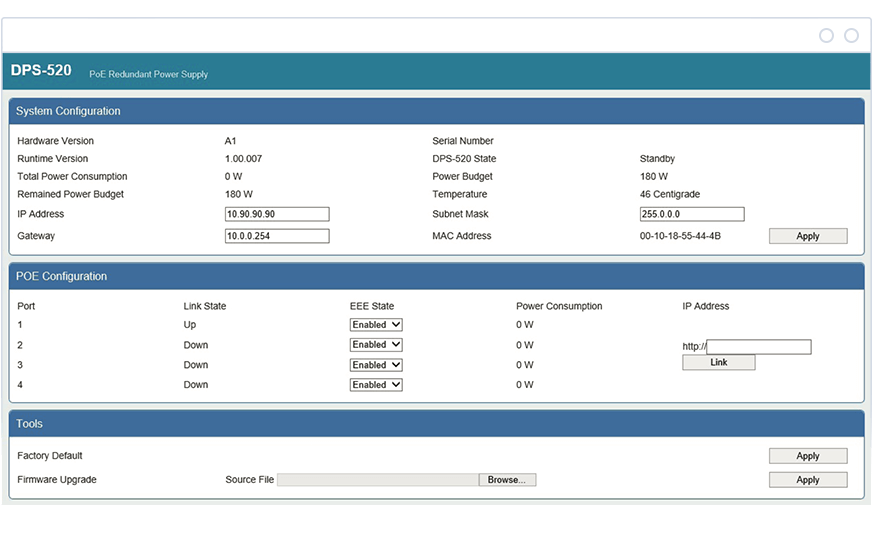

Switch status information can be monitored through any web browser with our comprehensive tool, allowing administrators to backup a failed switch.
| General | |
| Interfaces | 4 x 10/100/1000BASE-T PoE ports, 1 x 10/100/1000BASE-T MGMT port |
| Standards | PoH (Power over HDBaseT) |
| Network | |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Functionality | |
| Power Budget | 90 W per port, 180 W total power budget |
| Input Voltage Range | 90 to 264 V AC |
| Input Frequency | 47 to 63 Hz |
| Physical | |
| Dimensions | 196 x 257 x 52 mm |
| Weight | 1.15 kg |
| Operating Temperature | 0 to 50 °C |
| Storage Temperature | -40 to 70 °C |
| Operating Humidity | 10 to 90% RH |
| Storage Humidity | 5 to 95% RH |
| MTBF | 53,858 hours |
| Power | |
| Total Power over Ethernet (PoE) budget | 180 W |
| Power over Ethernet (PoE) power per port | 90 W |
| Input current | 2 A |
| AC adapter input voltage | 90 - 264 V |
| AC adapter frequency | 47 - 63 Hz |
| Weight & dimensions | |
| Weight | 1.15 kg |
| Width | 196 mm |
| Depth | 257 mm |
| Height | 52 mm |
Full specification and details can be found in the PDF file
An installation guide can be found in the PDF file
