Remote power reboot and monitoring functions are essential for hardware systems. MiniBoot Web Power Reboot & Monitoring device offers a cost-efficient power solution for any environment with electronic devices or systems. Users can try to recover the crashed device by remote reboot, reducing the need to send engineers to site (less personnel and travel costs by negating the need for staff to be at the equipment location) therefore improving uptime and productivity.
Remote Reboot & Amp Monitoring Over IP
Remote power management helps reducing manpower and hence improving uptime and productivity. It also benefits users with capacity planning and increasing the overall efficiency of the power management. MiniBoot offers two remote power management solutions for users’ selection.
Key Features
Remote Reboot to Recover Your Device
- When a complete restart is required MiniBoot provides a simple and easy way to reboot a hardware device.
- In addition to manual on/off, MiniBoot provides 3 kinds of auto outlet control:
- IP-Ping automatically detects a failed system for timely reboot
- Outlet on/off by sensor condition
- Outlet on/off scheduling
Enterprise level IP Authentication
- Active Directory (AD), Lightweight Directory Access Protocol (LDAPv3 / LDAPS).
- Remote Access Dial-In User Service (RADIUS) protocol, or local credential database.
- Strong passwords and granular user/user group permissions.
- Support high-speed network IP via 1000Base-T (Gigabit) Ethernet port
Diversified Outlets & Inlets
- Variety of outlets & inlets available for different regional power requirements
- Outlet : US NEMA, IEC C13, UK BS1363, German Schuko CEE 7/3 or French CEE 7/5
- Inlet : C20 for different regional power cords (Custom inlet available on request.)
Save Manpower & Travel Costs
- Restart the problem device by remotely power on & off, MiniBoot allow user to recover the equipment via network IP.
- Reduce manpower and travel costs by negating the need for staff to actually be at the equipment location, improving uptime and productivity.
Remote Management
- Simultaneous access via free management web GUI.
- SNMPv1/v2 & SNMPv3 for integration to DCIM.
- Remote management protocols: HTTP(S); SSH Command Line Interface; Telnet; SMTP; IPv6/IPv4.
Alerts / Alarms
- Receive alerts via SNMP, email (SMTP), and syslog when predefined thresholds are exceeded for both MiniBoot and environmental sensor events.
- Common SNMP MIBs (Management Information Base) for all MiniBoot models.
Power Monitoring via Network & Local Meter
- Allows remote monitoring via the free Graphic User Interface (GUI).
- Provides local current monitoring via MiniBoot blue LED ammeter.
- Allows user to establish the remaining capacity prior to adding a new device to the MiniBoot, plus displays the current being drawn and receives threshold alerts remotely.
Sensors & Wi-Fi
- Variety of optional sensors: Temperature & Humidity, Temperature, Smoke, Door.
- Option to connect via a WiFi kit (IPD-WIFI) complying with 802.11 g/n/ac.

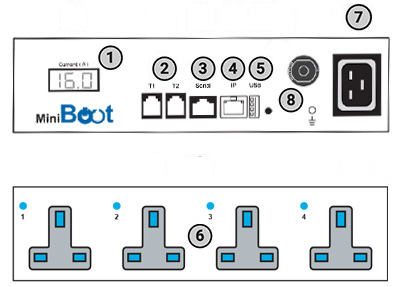

Product Layout
(4 UK Outlet Example Shown)

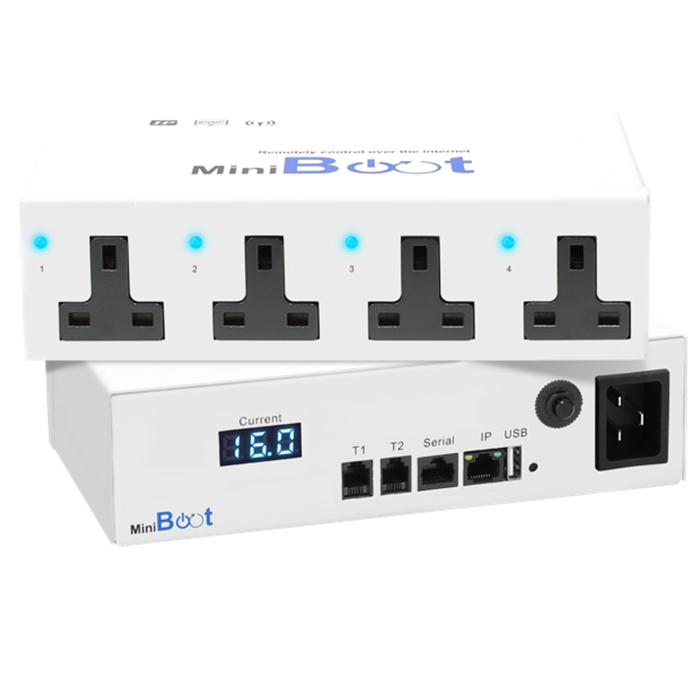

Single Feed MiniBoot
1 RMS current meter
2 Sensor port x 2
3 Serial port x 1
4 1000Base-T ( Gigabit ) IP port x 1
5 USB Wifi port x 1
6 UK outlets
7 C20 Inlet (Custom inlet available on request)
8 Resettable fuse
Applications
Unlike a rack PDU which is mounted inside an IT server rack enclosure, MiniBoot can be applied in diversified applications. MiniBoot is designed for a variety of industries – Transportation (Air, Land and Sea), Broadcasting, Entertainment, Advertising, Manufacturing, Mining, Satellite, Defense, Education, Telecommunication, Finance & Banking, Commercial, etc.
Commercial Offices
Telecommunication Offices
Satellite Stations
Digital Signage
Video Walls
Service Centers
ATM Machines
Shopping Mall Kiosks
Airport Check-in Kiosks
Transportation Ticketing System
Vending Machines
Information Desks
Factory Automation Systems
Production Plants
Assembly Line
Quality & Control Line
Universities
Education Institutes
Lecture Theatres
Tutorial Classes
Training Rooms
