Easy Rack Side Panel 42U/1000mm Side Panels
Black Deep Split Qty 2
Bottom Panel:

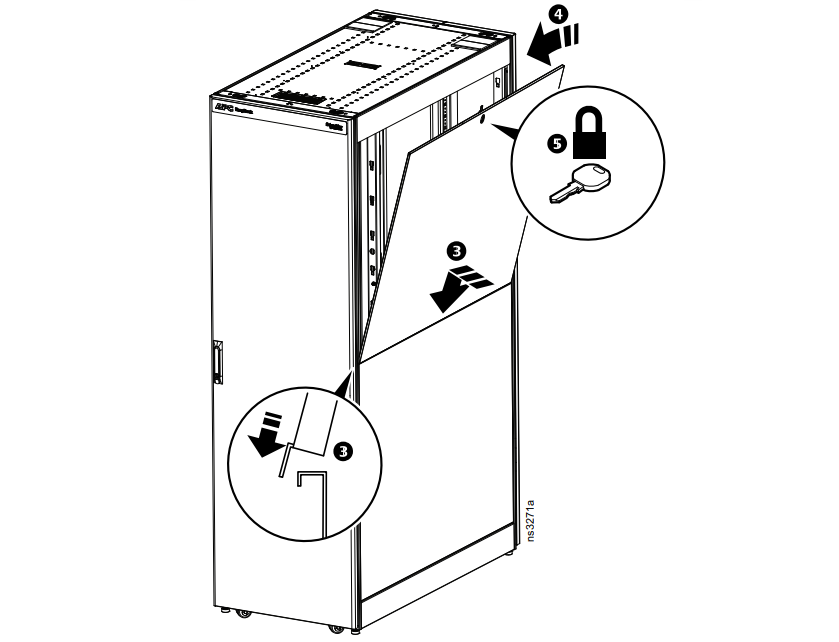

1. Install the bottom panel first. Tilt the panel into the side brace on the bottom of the rack as shown in the illustration.
2. Bring the panel up into position over the side brackets located on the rack.
Top Panel:
3. Install the bottom edge of the top panel over the top edge of the bottom panel.
4. Tilt the panel up into position.
5. Lock the top panel with the key to secure it into position. The lock latch in the vertical (locking) position fits behind the top side brace.
Installation details can be found in the Installation Guide PDF file
