Part No.:
Home --> Computer Accessories --> UPS Solutions --> APC UPS' --> APC Smart-UPS - 750VA-5000VA -->

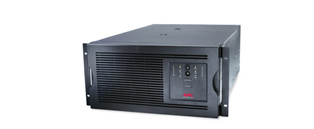

Smart-UPS 5000VA RM 5U 230V
Click here
to add a review.
Price
Delivery
£

£
 Inc. VAT
In Stock: Next Day
Related products
APC9617 UPS Network Management Card
APC9617 UPS Network Management Card
Embedded management of UPSs protecting servers and networking equipment
£140.00
£164.50 Inc. VAT

PDU with UK 13amp Plug Sockets
PDU with UK 13amp Plug Sockets
£25.00
£29.38 Inc. VAT

PDU with IEC C13 Plug Sockets
PDU with IEC C13 Plug Sockets
£32.00
£37.60 Inc. VAT

UK Mains Lead (5Amp) - IEC Female Lead
UK Mains Lead (5Amp) - IEC Female Lead
£1.10
£1.29 Inc. VAT

IEC Male - Female Power Extension Lead
IEC Male - Female Power Extension Lead
£1.00
£1.18 Inc. VAT

42u 600 (w) x 800 (d) Data Cabinet/Data Rack
42u 600 (w) x 800 (d) Data Cabinet/Data Rack
£370.00
£434.75 Inc. VAT
Minimum Order Volume 1
 Unit/s


Overview

Reviews

Express List

Output

Output Power Capacity

4000 Watts / 5000 VA

Max Configurable Power

4000 Watts / 5000 VA

Nominal Output Voltage

230V

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

96.00%

Output Voltage Distortion

Less than 5% at full load

Output Frequency (sync to mains)

47 - 53 Hz for 50 Hz nominal

Crest Factor

3 : 1

Waveform Type

Sine wave

Output Connections

(8) IEC 320 C13



(2) IEC 320 C19



(6) IEC Jumpers



Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

Hard Wire 3-wire



Input voltage range for main operations

160 - 286V

Input voltage adjustable range for mains operation

151 - 302V

Batteries & Runtime

Battery Type

VRLA

Typical recharge time

3 hour(s)

Replacement battery cartridge

RBC55

RBC™ Quantity

2

Typical Backup Time
at Half Load

26.7 minutes (2000 Watts)

Typical Backup Time
at Full Load

9.4 minutes (4000 Watts)

Surge Protection and Filtering

Surge energy rating

480 Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

222.00 mm

Maximum Width

483.00 mm

Maximum depth

660.00 mm

Rack Height

5U

Net Weight

97.73 KG

Shipping Weight

106.82 KG

Shipping Height

635.00 mm

Shipping Width

610.00 mm

Shipping Depth

762.00 mm

Color

Black

Units per Pallet

3.00
