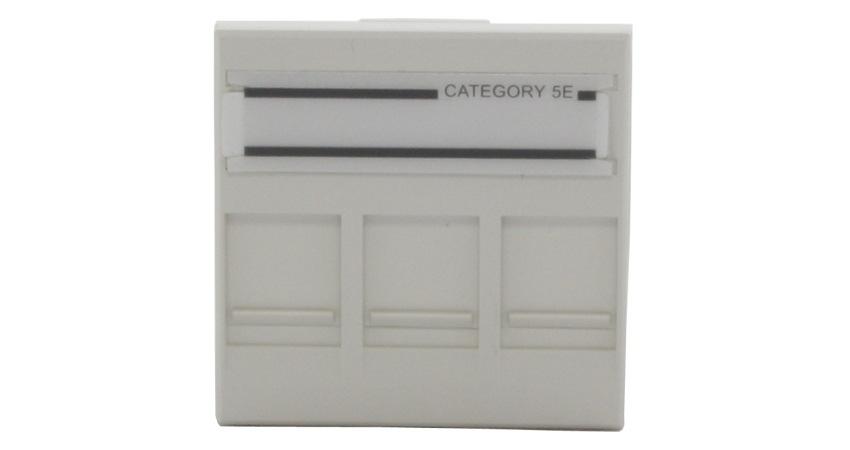

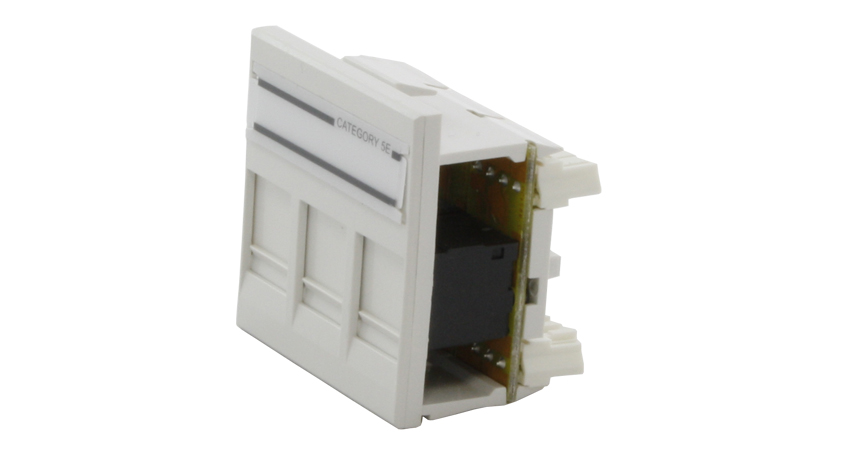

HellermannTyton Alpha Snap Cat5e UTP Triple Module

The Alpha Snap module is also interchangeable with the Alpha Snap patch panels and Alpha Snap  High Density Cat 5E patch panels for greater installation flexibility.

Features and Benefits

• Fully modular PCB’s
• Can be used in conjunction with any HellermannTyton Cat 5E patch panel
• Patented slide label system and software available

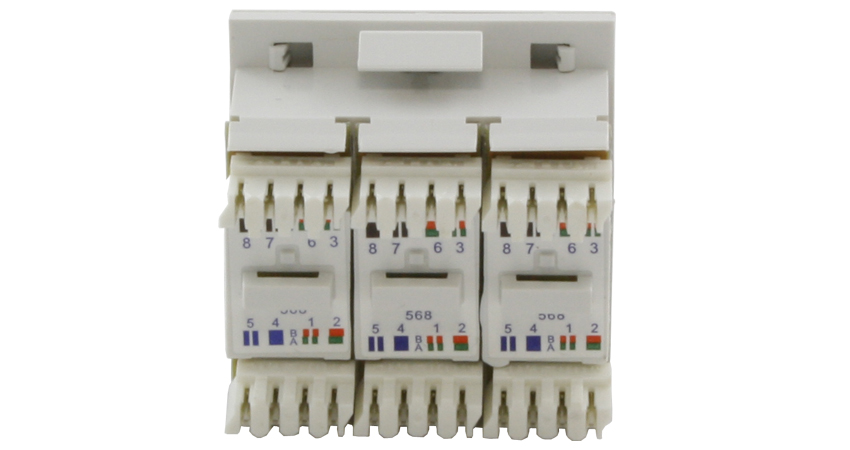

• 568A or 568B wiring options
• LJU versions available (secondary PABX and mastered)
• Module colour options available
• Rear cable tie point

Application
These products are designed for use in any voice and data cabling sites guaranteed under the HellermannTyton Cabling Sciences package and will support both Gigabit Ethernet and ATM 622 over copper, with total reliability.

They support any protocol designed to run within the limits of the Category 5 Enhanced performance specification including: 10 Base T, CDDI, Token Ring, 100 Base Tx, ATM (155Mbps), Video, Voice etc.

Technical Description

• Complies with ANS/TIA/EIA Category 5E performance standard
• Alpha Snap and Alpha Snap HD modules are also available to fit euro size faceplate latches (Easy Clip).
• 568A or 568B wiring options
• Jack life min. 1000 insertions
