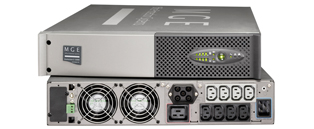

Eaton Evolution S 3000 2u Rackmount/Tower UPS


Part No.:
EA68464

Manufacturer No.: 68464
Home --> Server Accessories --> UPS Solutions --> Eaton UPS' -->
Price:
Delivery:

 Inc. VAT
In Stock: Next Day
Related Products
IEC C19 - IEC C20 Extention Leads
IEC C19 - IEC C20 Extension Leads
£4.44
£5.22 Inc VAT.
UK Mains - IEC-Lock C13 Female Leads
IEC-LOCK C13 Female - UK Mains Leads
Unique IEC Lock Power Leads
£2.58
£3.03 Inc VAT.
PDU with IEC C13 Plug Sockets
PDU with IEC C13 Plug Sockets
£32.00
£37.60 Inc VAT.
This product is no longer available from Comms Express.

Overview

Express List

High-density protection for networks and storage systems, versatile Tower/Rack2U short depth or stackable, 1250VA/1150W Line-Interactive with AVR & sinewave output, USB and Serial port + contacts,  shutdown software (Solution-Pac), slot for optional com card, 8 IEC outlets including 4 Powershare programmable outlets, Hot-swappable batteries, all necessary hardware included for rack or tower mounting

Maximum availability

  • Powershare. The Evolution output sockets are individually controlled to provide load-shedding to maximise the backup time and provide remote reboot and sequential start-up as standard.
  • Continuous power supply. Hot swappable batteries. The HotSwap MBP (Maintenance By-Pass) module allows the UPS to be replaced without interrupting the power supply.
  • Long backup times. 1 to 4 EXB battery units can be added to the Evolution S (from 1250 to 3000VA).

Minimum total cost of ownership

  • Line-interactive HF technology: the best price/performance ratio.
  • No additional cost: rack 1U and RT models are provided with the rail kits.
  • Remote supervision. A wide range of options using the Solution-Pac supplied: SNMP and HTML and relay outputs.

Flexability
Evolution has unmatched Flexibility.

  • Format. Evolution is available in tower format, rack 1U format, RT2U convertible rack/tower version (optimised for rack mounting) or RT3U (for tower or short-depth racks).
  • Connections. With FlexPDU and HotSwap MBP the Evolution can be connected by sockets or terminal blocks. They can be installed as required behind, on the side or on top of the unit.
  • Compatible with high power factor loads. The Evolution S are rated for 0.9 total power factor (1250 VA/1150 W, 1750 VA/1600 W, 2500 VA/2250 W and 3000 VA/2700 W)
  • Interfaces. USB + serial + remote start/stop + slot for optional communications card.

Features:

Product Description MGE UPS Evolution S3000 RT2U Netpack - UPS - 2.7 kW - 3000 VA
Form Factor External - 19" - 2U
Manufacturer Warranty 2 years warranty
Dimensions (WxDxH) 44 cm x 63.4 cm x 8.6 cm
Weight 33.8 kg
Device Type UPS
Battery Lead Acid 9 Ah
Remote Management Protocol SNMP, HTTP
Input Voltage AC 220-240 V
Output Voltage AC 230 V + 6% / - 10% ( 50/60 Hz )
Power Provided 2.7 kW / 3000 VA
Output Connector(s) 9 x power IEC 320 EN 60320 C13, power IEC 320 EN 60320 C19
Battery Form Factor Internal
Run Time (Up To) 15 min at half load
Batteries Qty 6
Battery Capacity 9 Ah
