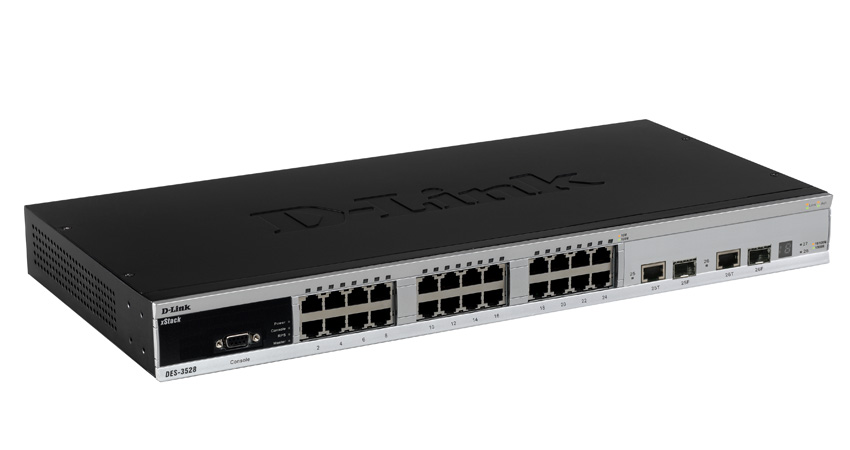

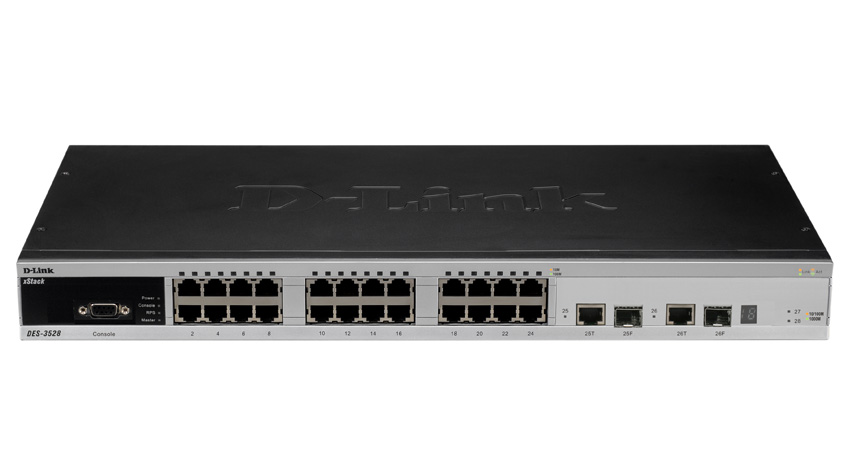

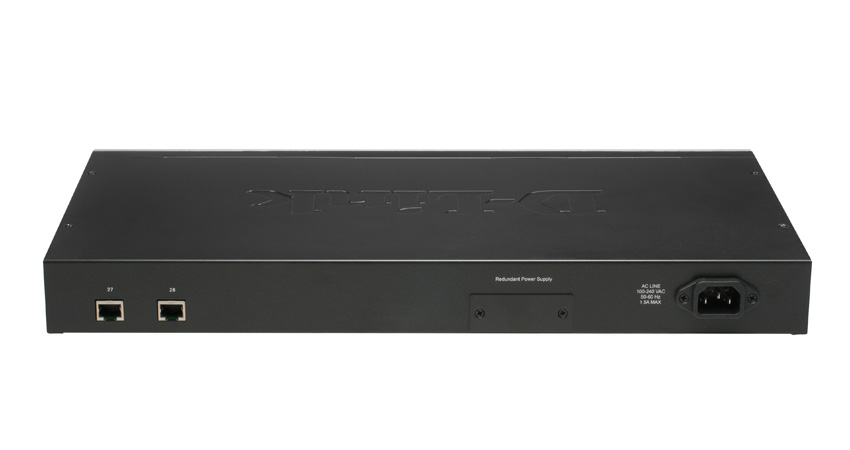

D-Link DES-3528

The DES-3528/3552 xStack series are enhanced L2+ access stackable switches designed to connect end-users in a secure SMB (small and medium size business) or enterprise network. These switches provide physical stacking, multicast and enhanced security, making it an ideal access layer solution. The DES-3528/3552 xStack Series can seamlessly integrate with L3 core switches to form a multilevel network structure consisting of a high-speed backbone and centralized servers. The DES-3528/3552 series provide the option of 24 or 48 10/100Mbps Ethernet ports and up to four Gigabit uplinks per switch. Users requiring connections to devices such as IP phones, network cameras and wireless APs can deploy the DES-3528P or DES-3552P, which provides 24 10/100Mbps PoE ports. Eight of these PoE ports provide up to 30watts per port, while the remaining adhere to the 802.3af standard (15.4watt output per port), giving administrators the ability to connect to the 802.3af standard devices as well as the 802.3at pre-standard equipment such as the 802.11n AP. The two combo 10/100/1000BASE-T SFP slots on the front panel provide flexible copper or fiber Gigabit connection. The two 10/100/1000BASE-T ports on the back panel are designed for flexible dual usage. They can be used either as stacking ports with 4Gbps bidirectional stacking bandwidth, or can simply be used as copper Gigabit uplinks. Physical stacking capability allows administrators to add up to eight switch units per stack on a scalable expansion basis. This series offers an attractive stackable switch alternative to the expensive chassis-based solution. The DES-3528/3552 series provide users with the latest security features such as 802.1X Guest VLAN, MAC-based Access Control (MAC) and Web-based Access Control (WAC). 802.1X Guest VLAN is a comprehensive end-point security solution for user authentication/authorization and WAC guarantees granular network access control with a user-friendly authentication mechanism. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also define the port number to enhance user access control.

With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list. This keeps the network secure and auditable. The D-Link Safeguard Engine identifies and prioritizes 'CPU interested' packets to prevent malicious traffic from interrupting normal network flows and protects switch operation. The DES-3528/3552 series targets SMB/enterprise customers who require a high level of network security and maximum uptime. It offers 4K VLAN, advanced selective Q-in-Q, as well as delivering progressive QoS capability for mission-critical applications and multicast services. The switches offer superior performance and availability through the latest Spanning Tree protocol, optional redundant power, and Loopback Detection (D-Link's advanced technology for preventing loops without the presence of STP). The DES-3528/3552 series uses D-Link's Web GUI 2.0, an easy-to-use web interface, and configuration wizards to minimize administrators' learning curve and make deployments easier to plan and implement. Utilizing the latest generation of chipsets, the DES- 3528/3552 series optimizes power consumption to reduce energy costs and contribute to a greener environment. In addition, the fanless design of the DES-3528 and DES-3528DC ensures quiet operation, ideal for deployment in open spaces. The DES-3528P, DES-3552, and DES-3552P are equipped with a Smart Fan feature. This feature allows for the built-in fans to automatically turn on at a certain temperature, providing continuous, reliable and eco-friendly operation of the switches.

Features:

• IP-MAC-Port Binding (IMPB)
• Web-based Access Control (WAC)
• Web-based GUI
• Selective Q-in-Q and VLAN Translation
• Broadcast storm control
• Highest priority
• 802.1v protocol-based VLAN
• Guest VLAN
• 4K VLAN support
• Virtual Stacking of up to 32 units
• Auto Voice VLAN
• IP Multicast support for bandwidth intensive application
• MAC-based VLAN
• D-Link Safeguard Engine
• SSH/SSL
• Authentication
• Committed Information Rate
• 1 Physical Stacking of up to 8 units
• Traffic Segmentation
• 802.1p Priority Queues/Multi-Layer QoS
• Embedded D-Link SIM for integration of all the xStack switches
• L2/L3/L4 Multi-Layer Access Control
• MAC-based Access Control (MAC)
• Port mirroring
• Bandwidth Control down to 64bps
• Supports Microsoft NAP
• RMON v1/v2 support
• Command Line Interface (CLI)
• External RADIUS/TACACS+
• DSCP QoS for VoIP application
