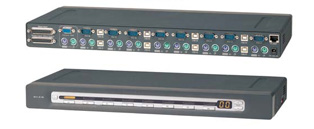

8-Port Omniview Pro2 Series KVM Switch

Belkin OmniView PRO2 Series KVM Switches deliver the reliable performance and centralized control best for managing medium to large server environments. Each Switch gives a system administrator control over multiple-platform computers from a single console. Offering both PS/2 and USB support, the PRO2 Series provides superior features such as computer naming and selection through On-Screen Display (OSD) and hot key switching, as well as easy manual switching with direct-access port selectors and active-port LEDs. Daisy-chaining up to 16 PRO2 and PRO KVM Switches expands your control over servers and computers. A seven-segment display indicates the active computer's BANK address for daisy-chained units.

NOTE: The OmniView PRO2 Series KVM Switches uses standard DB25 KVM cables. Coaxial VGA cabling is recommended for support of video resolutions of up to 2048x1536@85Hz. OmniView PRO2 Series KVM Switches are compatible with Windows® 95, 98, 2000, Me, NT, XP, Novell® NetWare 4.x/5.x, Mac USB and Sun USB platforms, Turbolinux® and all Linux® distributions.

Advantages :
• Enables firmware upgrades via web downloads
• Features direct-access port selectors to allow for easy manual port selection
• Displays BANK address on front panel with seven-segment LEDs when units are daisy-chained together
• Reduces required rack space with 1U EIA height enclosure (19" rack-mountable)
• Includes two rack-mount brackets with screws, 12V DC, 1A power supply, flash cable, registration card, user manual, quick installation guide

Features
• On-Screen Display (OSD)
• Hot key switching
• PS/2 keyboard and mouse emulation
• PS/2 keyboard and mouse emulation
• Video resolution support to 2048x1536@85Hz
• User-defined AutoScan
• Dedicated daisy-chain ports
• Natively rack-mountable and stackable construction
