6 Bay Modular PDU

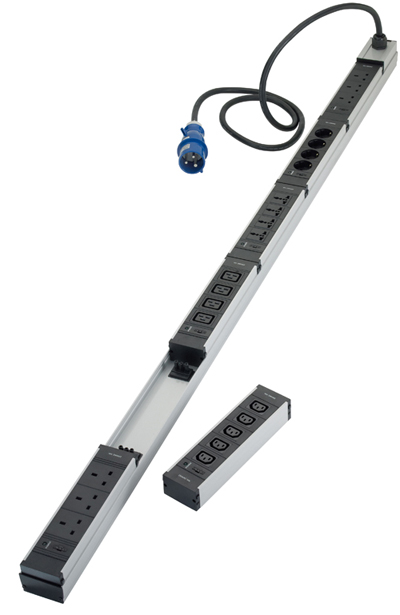

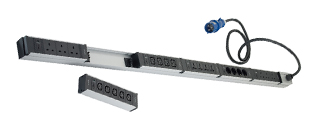

A range of modular power distribution strips introduces flexibility and design options which until now have not been available in products of this type. Core to the product range is a U shaped housing, manufactured from high quality, lightweight aluminium which is terminated with a 2 metre mains connection lead, with commando style and standard 3 pin plug options.

A range of socket modules are available which snap into this housing quickly, easily, and securely without the need for tooling.

The range of modules available enable users to mix and match socket styles to suit initial – and more importantly – changing connectivity or socket density requirements. Current ‘standard’ power distribution units, offer little if any flexibility, meaning users have to install single style socket units, multiple units, or purchase power leads or converters to match equipment connectors with power strip sockets.

To add to the flexibility of product choice and configuration, modules can be ‘hot swapped’ at any time after initial installation. Simply detach devices connected to the module which needs to be swapped, remove the original module and snap in the replacement. All other modules remain fully operational, reducing installation time, equipment down time, and extending the useable lifetime of the power strip unit itself.

Features

• Unrivalled flexibility
• Choice of socket style and density
• Mix and match socket styles to suit installed product
• Each socket module is fused and has power light indicator
• Extends useable life of power distribution units
• Hot swop modules minimise network down time
• High quality aluminium housing

PLEASE NOTE: This unit is supplied un-populated. Expansion modules will be required
