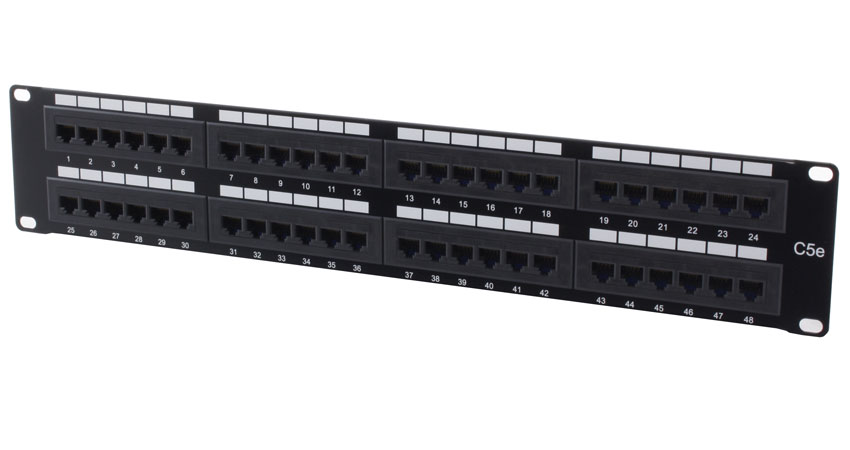

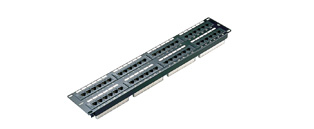

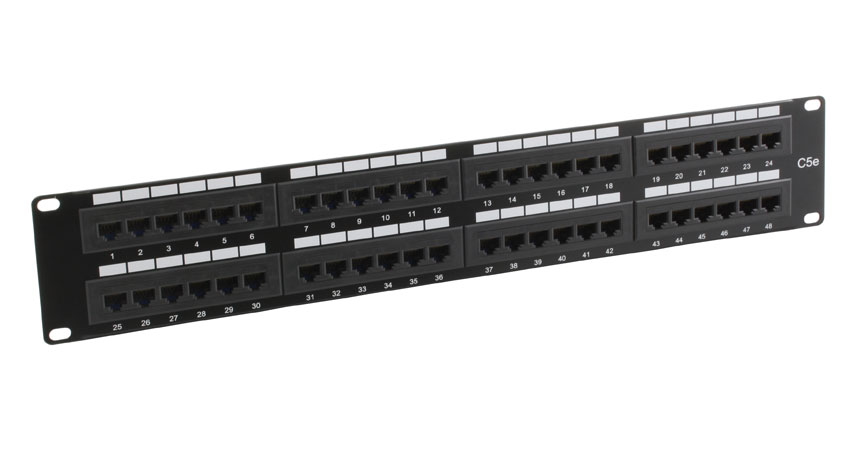

The CE Category 5e Patch Panel is a heavy-duty, 2U rack-mounted solution engineered for high-performance Ethernet networks. Built to exceed "Enhanced Cat5e" specifications, this panel is designed to reduce installation overhead while providing maximum connection reliability for critical data infrastructure.
Global Standard Certification: Fully conforms to ANSI/EIA/TIA, ISO/IEC11801, and EN50173 Category 5e standards, ensuring compatibility with all certified network hardware.
Premium Signal Integrity: Features Gold over Nickel plated jack contacts to prevent oxidation and ensure consistent high-speed data transmission.

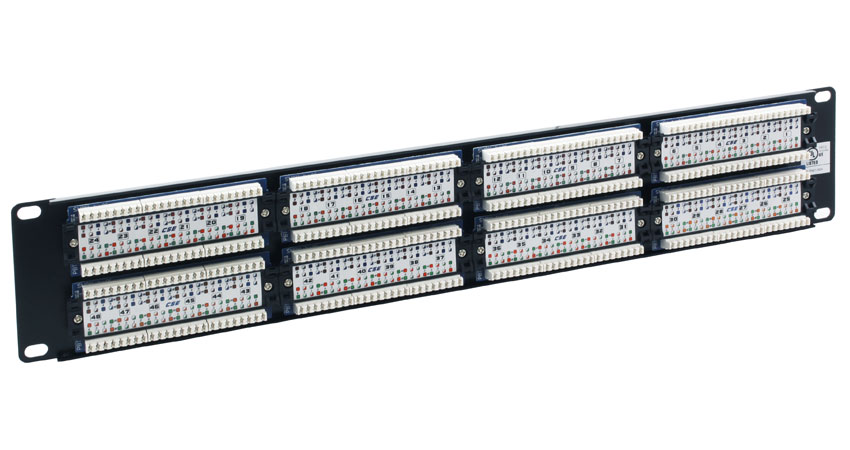

Versatile Termination: Equipped with Phosphor Bronze and Nickel-plated IDC terminals that securely accept 22-26 AWG solid and stranded wires.
FCC Compliance: Meets FCC Part 68 requirements for telecommunications equipment.
Rugged Steel Chassis: The front panel is manufactured from durable lacquered steel, offering superior structural rigidity for full-capacity cable loads.
2U Form Factor: Optimized for standard 19-inch racks, providing a spacious layout for easier maintenance and port identification.
Deployment Ready: Specifically designed to minimize deployment time through an accessible IDC layout and included mounting hardware.
| Feature | Specification |
| Performance Category | Enhanced Cat5e |
| Rack Height | 2U (19-inch standard) |
| Material | Lacquered Steel Front Panel |
| Jack Contacts | Gold over Nickel Plated |
| IDC Terminals | Phosphor Bronze & Nickel Plated |
| Wire Gauge Support | 22 to 26 AWG (Solid or Stranded) |
| Compliance | ANSI/TIA, ISO/IEC, EN50173, FCC Part 68 |
The CE 2U panel is shipped with a complete professional hardware set to ensure immediate installation:
4 x M6 Cage Nuts & Bolts: Finished in black to match the panel for a clean, professional aesthetic within the cabinet.
24 x 80mm Cable Ties: Included to assist with organized cable dressing and integrated strain relief.
