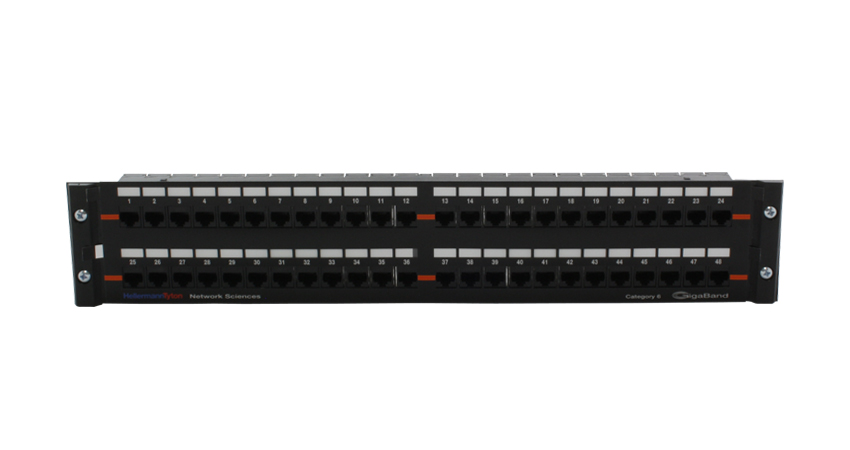

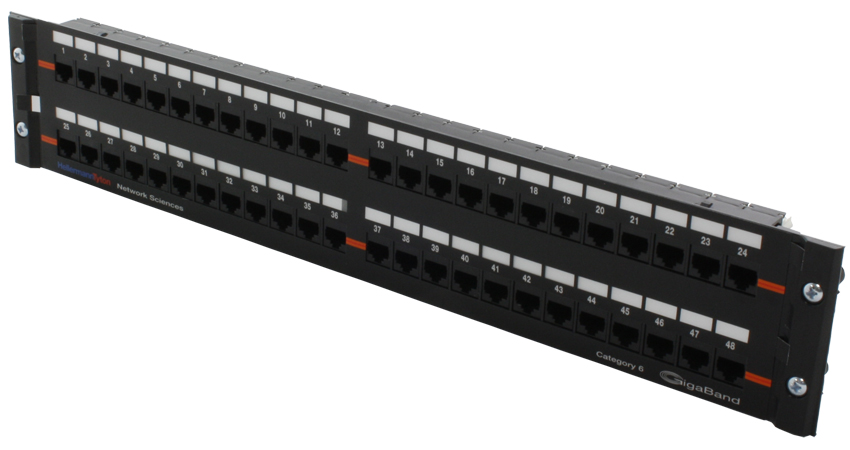

48 Port HellermannTyton Gigaband High Desnsity Cat6 UTP Patch Panel - 2u

GigaBand Category 6 patch panels exceed the latest performance standards proposed by the ISO/IEC JTC 1/SC 25/WG3 standards committee.

The panel range is ideally suited to run the latest protocols such as 1000Base T and 622 ATM and are backward compatible with Category 5E and 5 systems.

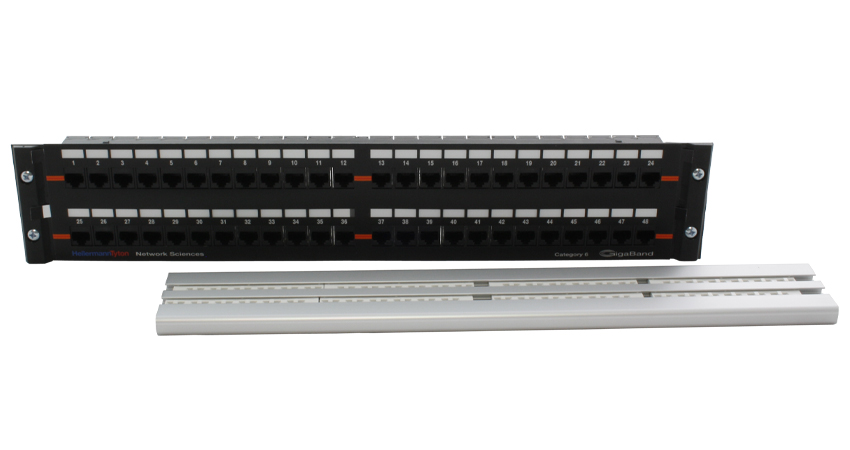

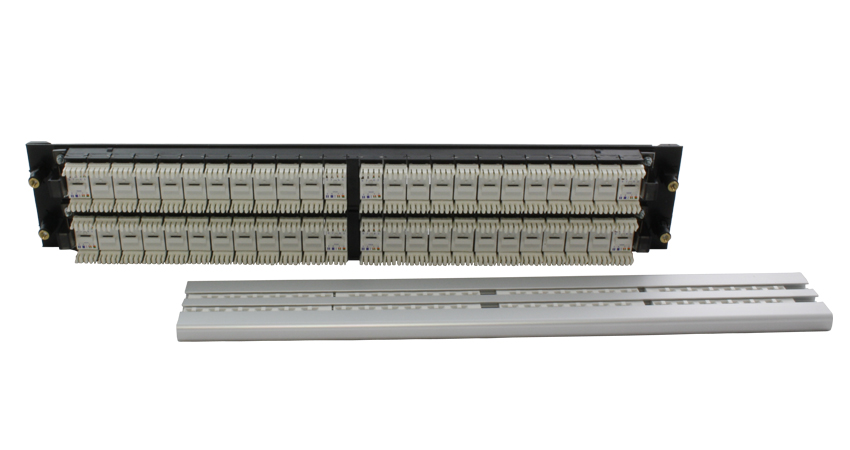

The panels include our unique aluminium snap-on rear cable manager.

Features and Benefits

• UTP and FTP versions
• Backward compatible to Cat 5E and Cat 5
• PCB's interchangeable with GigaBand or GigaBand HD Triple outlets
• Includes Rack-Snap inserts
• Slide label system + software available
• Customised product facia available
• Can be supplied totally or partially loaded

Applications
GigaBand patch panels are designed for use in any voice and data systems guaranteed under the HellermannTyton Network Sciences package and will support both Gigabit Ethernet and ATM 622 over copper with total reliability when used in conjunction with HellermannTyton approved cable.

Technical Description

• Exceeds proposed channel ISO/IEC JTC1/SC 25/WG3 for Category 6
• 568A or 568B wiring options
• IDC contact life up to 50 re-insertions
• Jack life min. 1000 insertions
