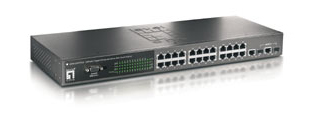

24 Port 10/100 Smart Managed Switch

Ports:

• 24 10/100Mbps RJ-45 MDI/MDIX ports
• 2 10/100/100Mbps RJ-45 MDI/MDIX ports
• 2 Mini-GBIC Module Slots
• RS-232 Port for configuration

Operational Features:

• Store-and-forward error free packet forwarding scheme
• Full/ half-duplex capability and auto negotiation at each port
• Auto MDI/ MDI-X crossover on all ports
• Prevents packet loss with back pressure(half-duplex) and 802.3x flow control(full-duplex)
• MAC address table 6K per device, self learning, auto-aging
• Memory Buffer 3Mbits
• 8.8GB Backplane
• IEEE802.3ad Port trunk
• IEEE 802.1Q Tag VLAN, Port-based VLAN

Web Management Features:

• QOS Policy: Supports 8 priority levels ID for High /
• Low priority queue
• Class of Service: Support IEEE802.1p Priority. Supports First Come First service, All High before Low, WRR for High or low weight.
• Port Based Priority: Support 3 setting, Disable, Low and High priority. When set to Disable, the income packet will follow QoS policy. Otherwise, the packet will follow port priority setting to High/Low queue.
• Port Mirror: Global System support 3 mirroring type RX, TX and both packet. The maximum of mirror entries up to 25.
• Bandwidth Control: Per port support Bandwidth control. Per level 1Mbits.
• Broadcast Storm: Disable , 5%, 10%, 20%
