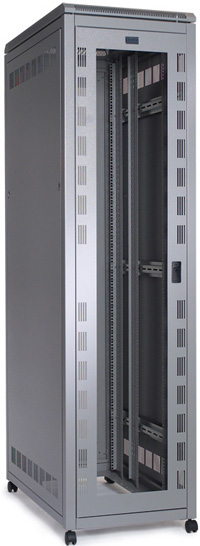

Server Cabinet/Server Rack, 27U 600mm wide x 1000mm
|
These Prism PI Server Cabinets have been designed to meet the changing requirements of the server cabinet market. This of server racks have been designed to meet the required thermal management and load capacity today's major server manufacturers recommend for server racks.
Features:
- Steel frame chassis with a load capacity of up to 1 tonne (evenly distributed)
- Enclosed Smoked glass Door with Slam-latch lock or Mesh front door with Key Lock
- 19" mounting profiles Front, Rear and Middle
- Removable/Lockable side panels with venting
- Large floor aperture
- Quick release door pins, for easy access to equipment.
- 'U' height position markers for accurate equipment positioning
Available as standard in Goose Grey, Black and Anthracite as standard.
All server cabinets can be customised in the following ways:
- Specific Colours (Match them to your corporate colours)
- Panels and doors can be added/removed or changed as neccassary
Please call our sales team on 0845 2000 256 for a quote on a custom cabinet.
Accessories are available on the following pages:
|
Other Options and Accessories:
Console Drawers and KVM Solutions
UPS Solutions From MGE and APC
A Complete Range of Switches
Patch Panels, Modules and Patch Leads |
Compatible with the following current range of servers (this list is not exhaustive, if the your server isn't listed here, please call for details)
| Dell Servers |
HP Servers |
Other Servers |
| PowerEdge SC1425 |
HP ProLiant DL120 |
Apple Xserve G5 |
| PowerEdge SC1435 |
HP ProLiant DL140 |
IBM eServer OpenPower 710 |
| PowerEdge 850 |
HP ProLiant DL145 |
IBM eServer OpenPower 710 Express |
| PowerEdge 1850 |
HP ProLiant DL160 |
IBM eServer OpenPower 720 Express |
| PowerEdge 1855 |
HP ProLiant DL165 |
IBM iSeries 520 Express Edition |
| PowerEdge 1950 |
HP ProLiant DL180 |
IBM iSeries 520 |
| PowerEdge 2850 |
HP ProLiant DL185 |
IBM iSeries 550 |
| PowerEdge 2950 |
HP ProLiant DL320 |
IBM System p5 505 Express |
| PowerEdge 2970 |
HP ProLiant DL360 |
IBM eServer p5 510 Express |
| PowerEdge 6850 |
HP ProLiant DL365 |
IBM eServer p5 510 |
| PowerEdge R200 |
HP ProLiant DL380 |
|
| PowerEdge R300 |
HP ProLiant DE385 |
|
| PowerEdge R805 |
HP ProLiant DL560 |
|
| PowerEdge R905 |
HP ProLiant DL580 |
|
| PowerEdge R900 |
HP ProLiant DL585 |
|
| Tower Servers |
HP ProLiant DL740 |
|
| PowerEdge SC430 |
HP ProLiant DL760 |
|
| PowerEdge SC440 |
HP ProLiant DL785 |
|
| PowerEdge SC1420 |
HP ProLiant BL20P |
|
| PowerEdge T105 |
HP ProLiant BL25P |
|
| PowerEdge T300 |
HP ProLiant BL35P |
|
| PowerEdge T605 |
HP ProLiant BL45P |
|
| PowerEdge 830 |
HP ProLiant BL60P |
|
| PowerEdge 840 |
HP ProLiant BL200c |
|
| PowerEdge 1800 |
HP ProLiant BL400c |
|
| PowerEdge 1900 |
HP ProLiant BL600c |
|
| PowerEdge 2800 |
|
|
| PowerEdge 2900 |
|
|
|
Prism PI Server Cabinet Style |
|
|
| Cabinet Size |
| U Height: |
27u |
| External Depth: |
1000mm |
| Internal Working Depth: |
890mm |
| External Height: |
1360mm |
| External Width: |
600mm |
| Mounting Profile Width: |
19" |
| Cabinets General |
| Front Door Type/s: |
Glass With Side Vents, Mesh, Lockable |
| Mounting Profiles Position/s: |
Front, Middle & Rear |
| Side Panels: |
Lockable/Removable, Solid With Vents |
| Cable Entry: |
Top, Bottom |
| Construction: |
Bolted |
| Ventilation: |
Top, Front, Rear, Small Vents to Side Panels |
| Removable Panels: |
Front Door, Rear Door, Side Panels |
| Lock Positions: |
Front Door, Rear Door, Side Panels |
